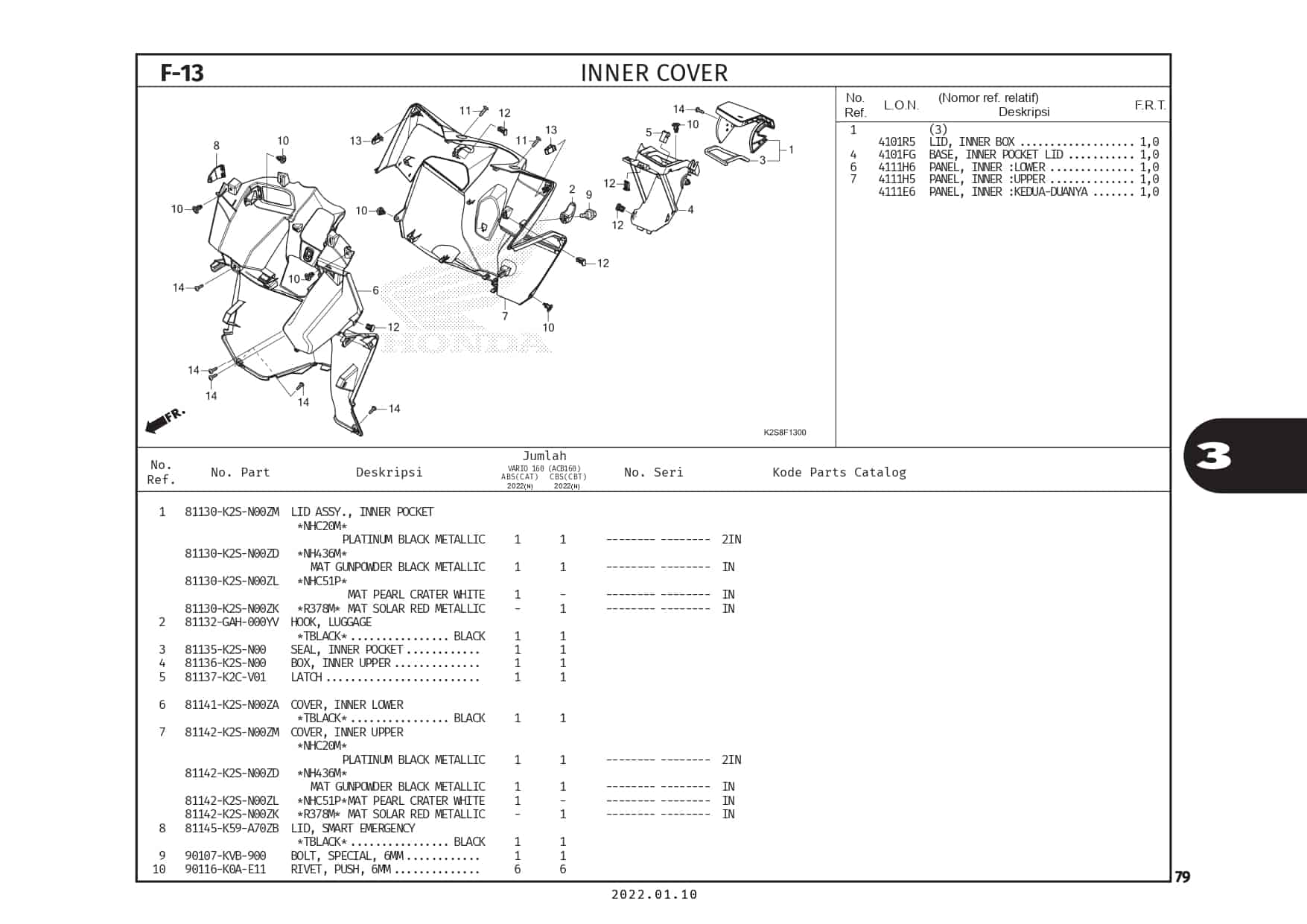

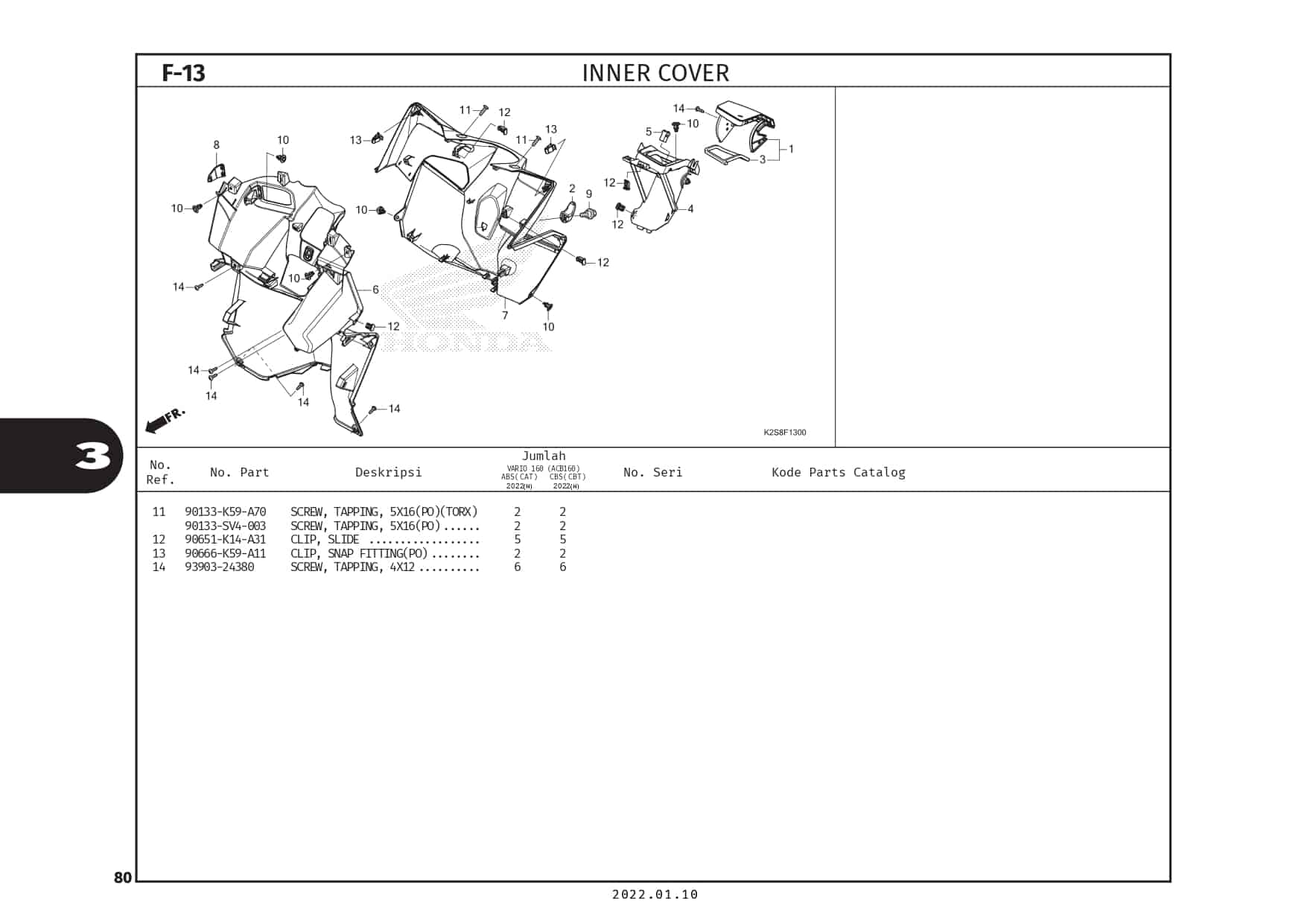

F13 – Inner Cover – Katalog Honda Vario 160

#	Informasi Produk	Visual
1	LID ASSY., INNER POCKET Part Number : `81130K2SN00ZD`
1	Lid Assy Inner Pocket (MA BL MT) Part Number : `81130K2SN00ZV`
1	LID ASSY., INNER POCKET Part Number : `81130K2SN00ZL`
1	LID ASSY., INNER POCKET Part Number : `81130K2SN00ZK`
2	HOOK LUGGAGE Part Number : `81132GAH000YV`
3	SEAL, INNER BOX Part Number : `81135K2SN00`
4	BOX INNER, UPPER Part Number : `81136K2SN00`
5	LATCH Part Number : `81137K2CV01`
6	COVER, INNER LOWER (BLK) Part Number : `81141K2SN00ZA`
7	COVER, INNER UPPER (PL BL ME) Part Number : `81142K2SN00ZM`
7	COVER, INNER UPPER (MT GN BL) Part Number : `81142K2SN00ZD`
7	COVER, INNER UPPER (MA PR CR) Part Number : `81142K2SN00ZL`
7	COVER, INNER UPPER (MT SO RED) Part Number : `81142K2SN00ZK`
7	Cover Inner Upper (MA BL MT) Part Number : `81142K2SN00ZV`
8	LID, SMART EMERGENCY Part Number : `81145K59A70ZB`
9	BOLT SPECIAL 6MM Part Number : `90107KVB900`
10	RIVET PUSH 6MM Part Number : `90116K0AE11`
11	SCREW TAPPING (PO) 5X16 (TORX) Part Number : `90133K59A70`
12	SLIDE CLIP Part Number : `90651K14A31`
13	CLIP SNAP FIT(PO) Part Number : `90666K59A11`
14	SCREW TAPPING 4X12 Part Number : `9390324380`
