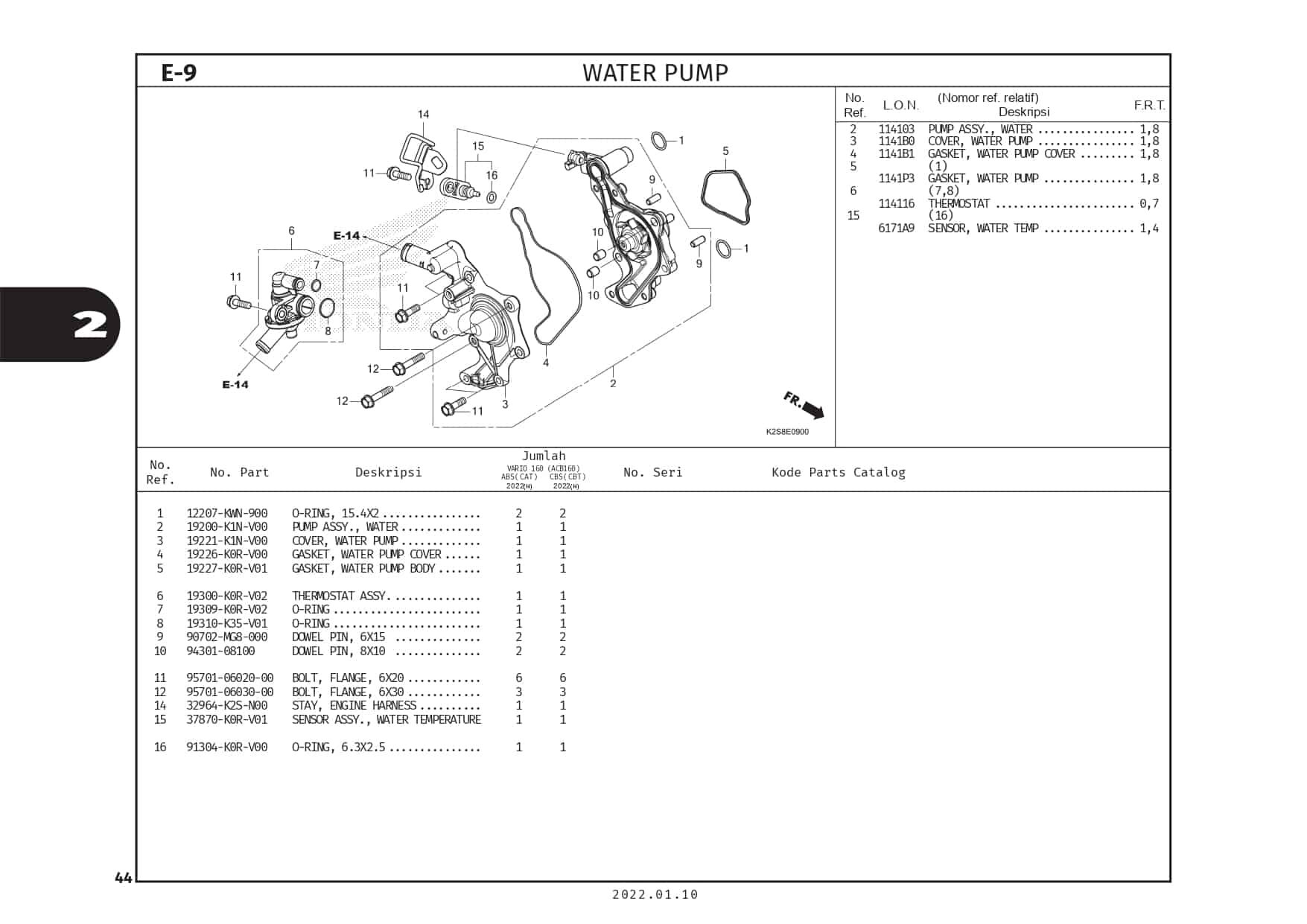

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | O-RING,15.4X2 | 12207KWN900 |
|
| 1 | O-RING,15.4X2 | 12207KWN901 |
|
| 2 | PUMP ASSY,WATER | 19200K1NV00 |
|
| 3 | COVER,WATER PUMP | 19221K1NV00 |
|
| 4 | GASKET, WATER PUMP COVER | 19226K0RV00 |
|
| 5 | GASKET, WATER PUMP BODY | 19227K0RV01 |
|
| 6 | THERMOSTAT ASSY. | 19300K0RV02 |
|
| 7 | O-RING | 19309K0RV02 |
|
| 8 | O-RING | 19310K35V01 |
|
| 9 | DOWEL PIN, 6X15 | 90702MG8000 |
|
| 10 | PIN DOWEL 8X10 | 9430108100 |
|
| 11 | BOLT FLANGE 6X20 | 957010602000 |
|
| 12 | BOLT FLANGE 6X30 | 957010603000 |
|
| 13 | STAY,ENG HARNESS | 32964K2SN00 |
|
| 14 | SENSOR ASSY., WATER | 37870K0RV01 |
|
| 15 | O-RING, 6.3X2.5 | 91304K0RV00 |
|
