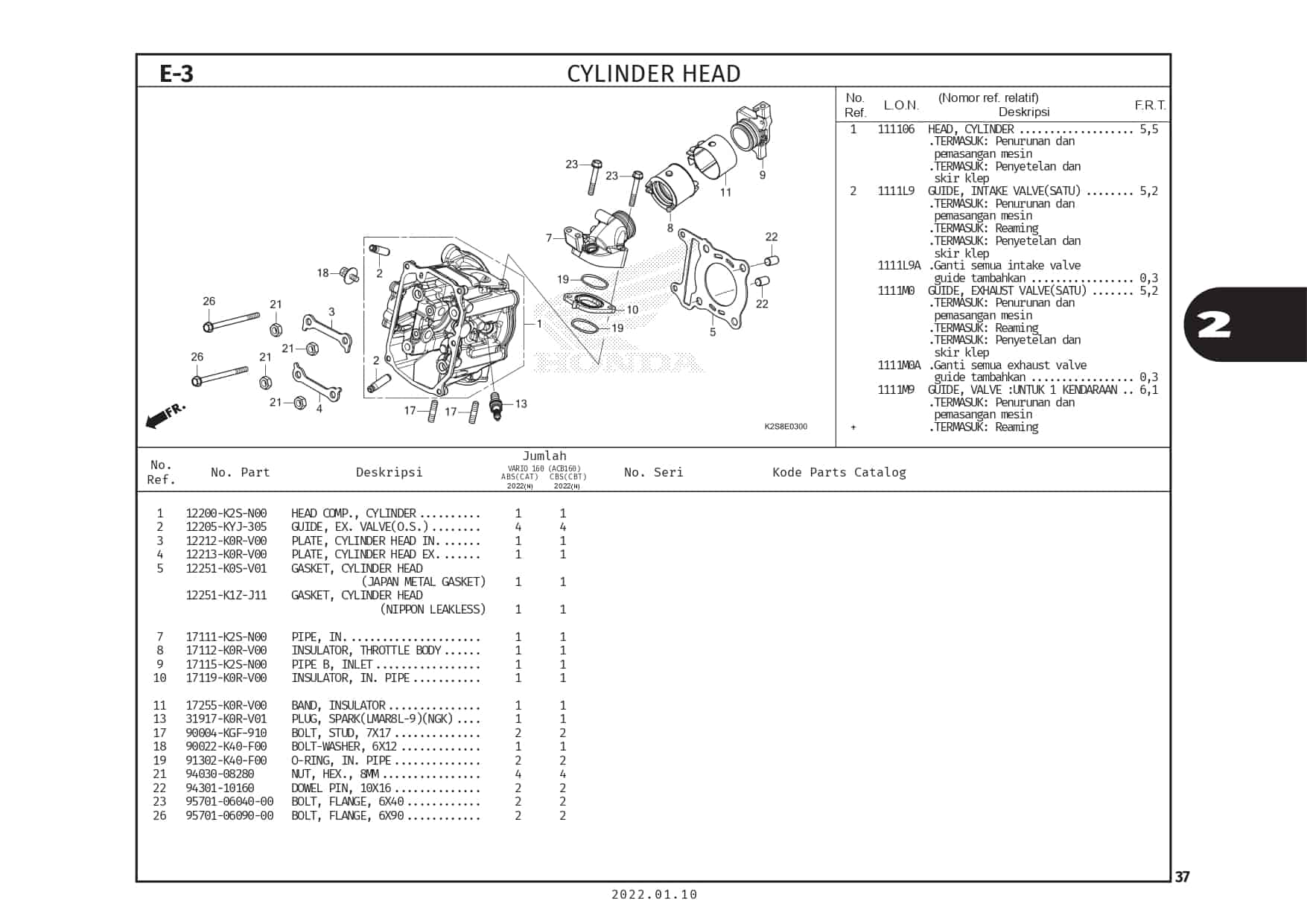

E3 – Cylinder Head – Katalog Honda Vario 160

#	Informasi Produk	Visual
1	HEAD COMP,CYLINDER Part Number : `12200K2SN00`
1	HEAD COMP,CYLINDER Part Number : `12200K1ZT00`
2	GUIDE,EX VALVE(OV Part Number : `12205KYJ305`
3	PLATE, CYLINDER HEAD IN. Part Number : `12212K0RV00`
4	PLATE, CYLINDER HEAD EX. Part Number : `12213K0RV00`
5	GASKET,CYLINDER HEAD Part Number : `12251K1ZJ11`
7	PIPE,INLET Part Number : `17111K2SN00`
8	INSULATOR, THROTTLE BODY Part Number : `17112K0RV00`
9	PIPE B,INLET Part Number : `17115K2SN00`
10	INSULATOR, IN. PIPE Part Number : `17119K0RV00`
11	BAND, INSULATOR Part Number : `17255K0RV00`
13	PLUG, SPARK(LMAR8L-9)(NGK) Part Number : `31917K0RV01`
17	BOLT, STUD, 7X17 Part Number : `90004KGF910`
18	BOLT-WASHER, 6X12 Part Number : `90022K40F00`
19	O-RING, IN. PIPE Part Number : `91302K40F00`
21	NUT HEX 8MM Part Number : `9403008280`
22	DOWEL,PIN,10X16 Part Number : `9430110160`
23	BOLT FLANGE 6X40 Part Number : `957010604000`
26	BOLT FLANGE 6X90 Part Number : `957010609000`
