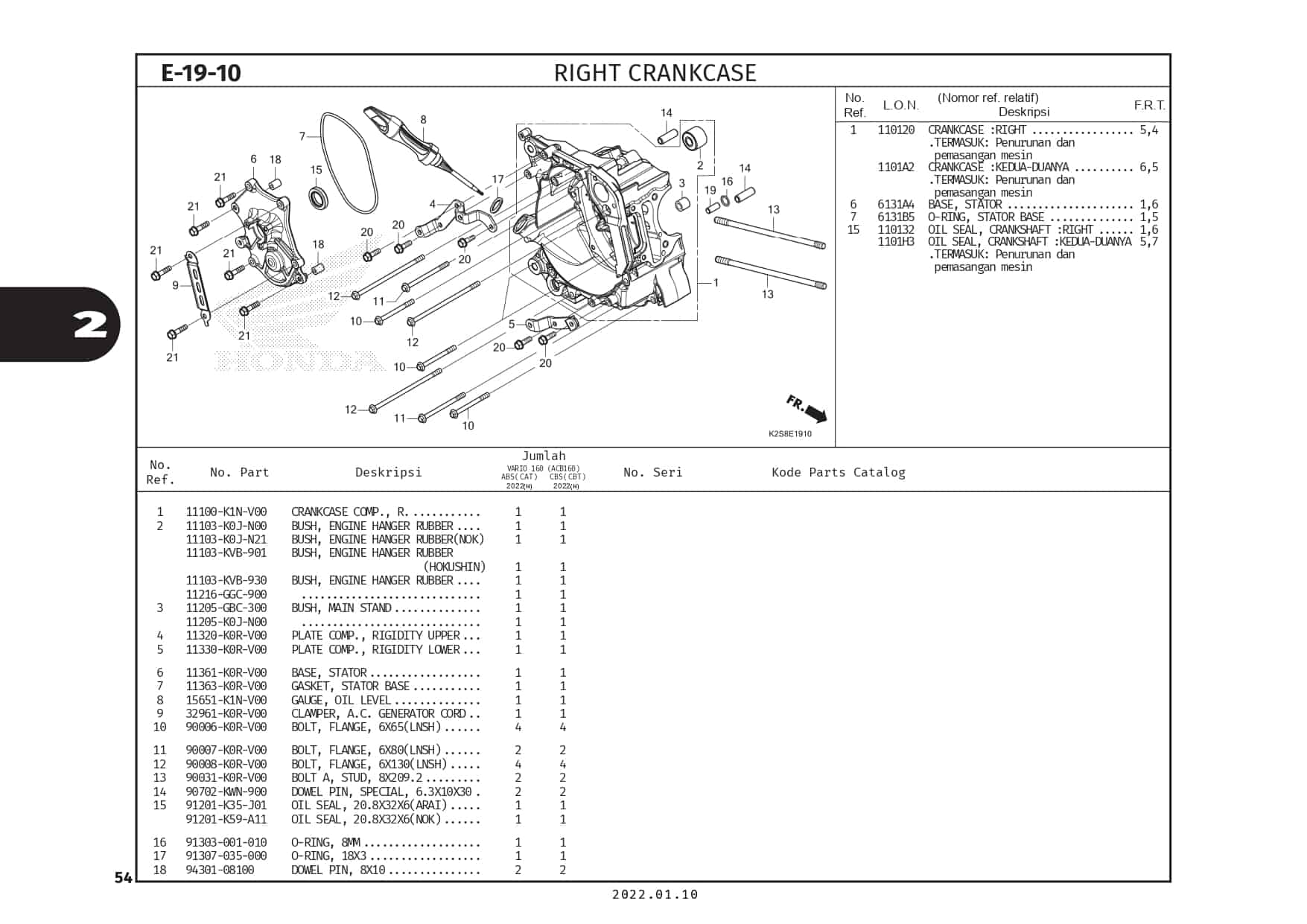

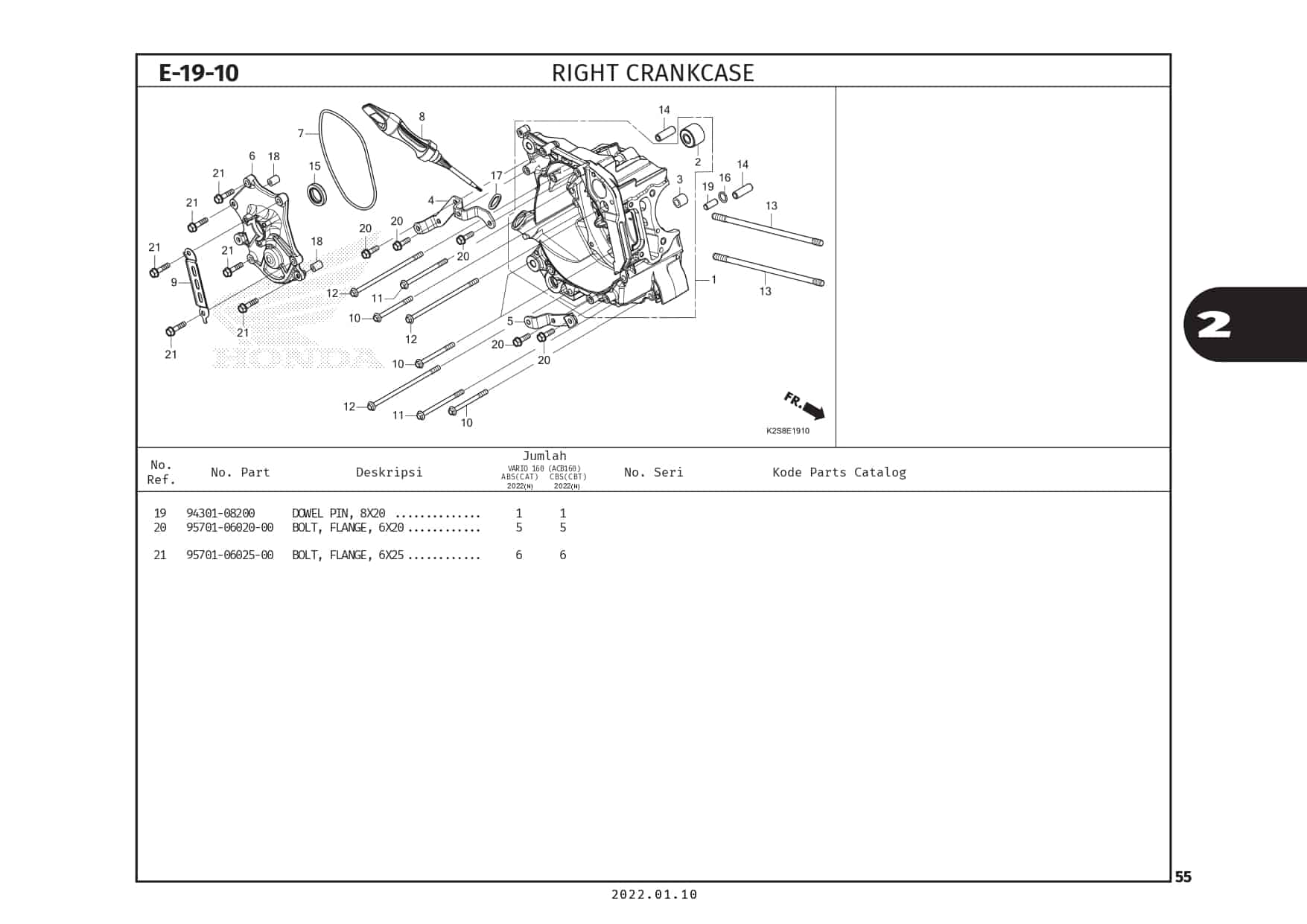

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CRANK CASE COMP,RIGHT | 11100K1NV00 |
|
| 2 | RUBBER BUSH,ENGINE HANGER | 11103K0JN00 |
|
| 2 | RUBBER BUSH,ENGINE HANGER | 11103K0JN21 |
|
| 2 | RUB.BUSH,ENG.HANGER | 11103KVB901 |
|
| 2 | RUB.BUSH,ENG.HANGER | 11103KVB930 |
|
| 3 | BUSH M STAND | 11205GBC300 |
|
| 3 | BUSH,M STAND | 11205K0JN00 |
|
| 4 | PLATE COMP., RIGIDITY UPPER | 11320K0RV00 |
|
| 5 | PLATE COMP., RIGIDITY LOWER | 11330K0RV00 |
|
| 6 | BASE, STATOR | 11361K0RV00 |
|
| 6 | BASE, STATOR | 11361K3VN00 |
|
| 7 | GASKET, STATOR BASE | 11363K0RV00 |
|
| 8 | GAUGE,OIL LEVEL | 15651K1NV00 |
|
| 9 | CLAMPER, A.C. GENERATOR CORD | 32961K0RV00 |
|
| 10 | BOLT, FLANGE, 6X65(LNSH) | 90006K0RV00 |
|
| 11 | BOLT, FLANGE, 6X80(LNSH) | 90007K0RV00 |
|
| 12 | BOLT, FLANGE, 6X130(LNSH) | 90008K0RV00 |
|
| 13 | BOLT A, STUD, 8X209.2 | 90031K0RV00 |
|
| 14 | DOWEL PIN,SPL 6.3X10X30 | 90702KWN900 |
|
| 15 | OIL SEAL 20.8X32X6 | 91201K35J01 |
|
| 15 | OIL SEAL, 20.8X32X6 | 91201K59A11 |
|
| 16 | O-RING 8MM | 91303001010 |
|
| 17 | O-RING, 18X3 | 91307035000 |
|
| 18 | PIN DOWEL 8X10 | 9430108100 |
|
| 19 | DOWEL PIN, 8X20 | 9430108200 |
|
| 20 | BOLT FLANGE 6X20 | 957010602000 |
|
| 21 | BOLT FLANGE 6X25 | 957010602500 |
|
