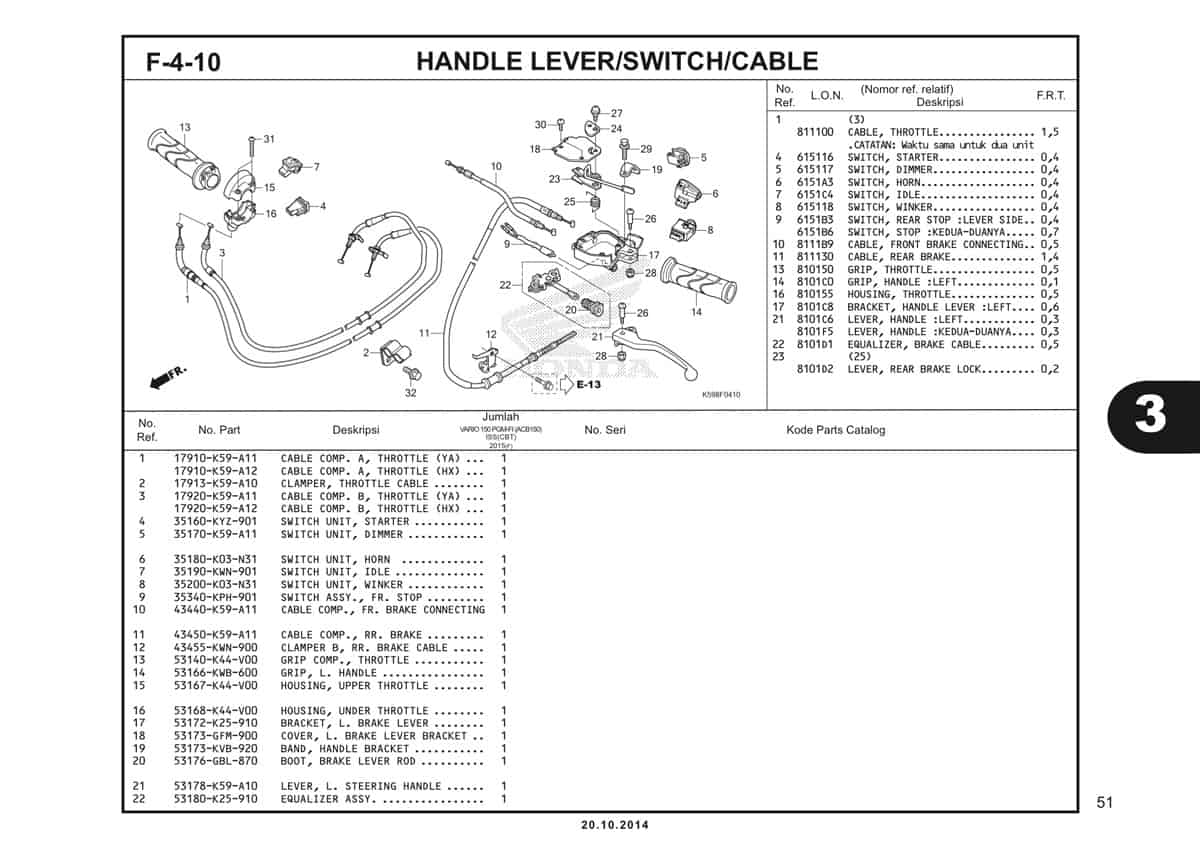

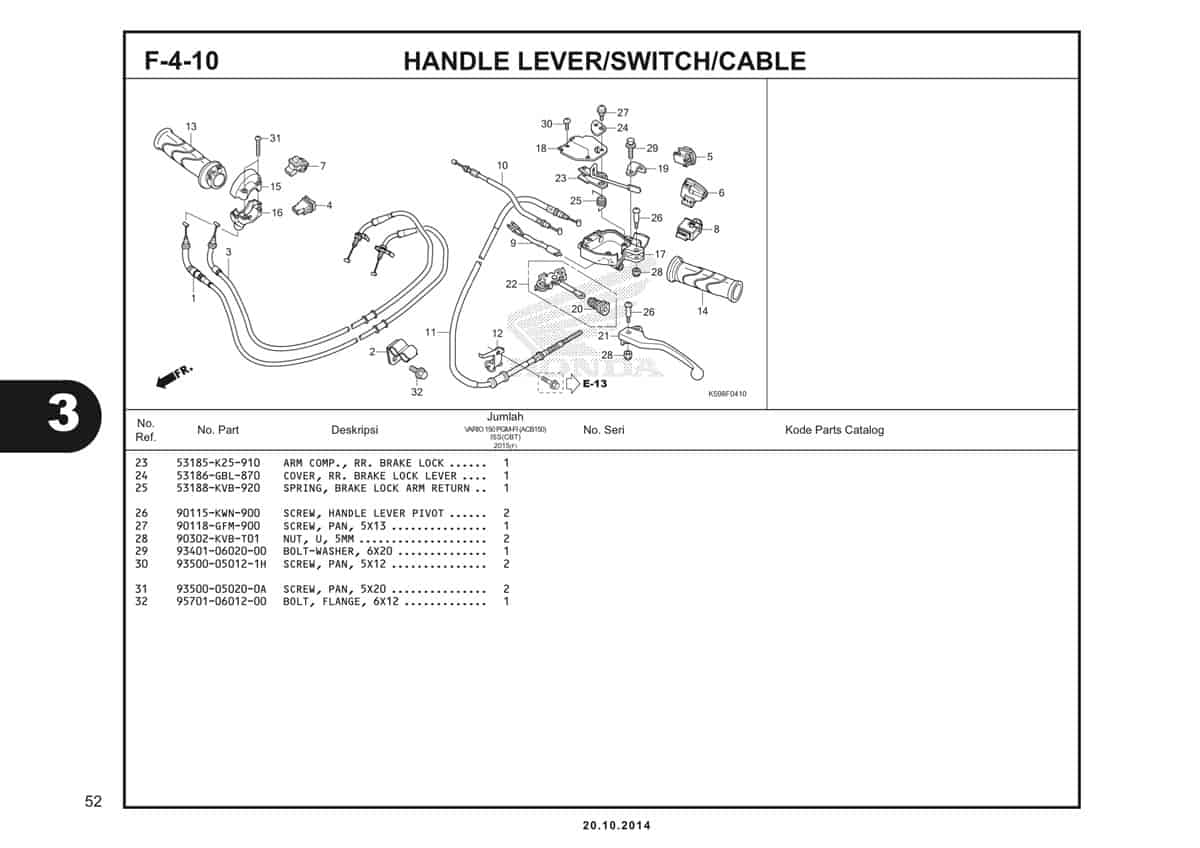

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Cable Comp A Throttle | 17910K59A12 |
|
| 2 | Clamper Throttle Cable | 17913K59A10 |
|
| 3 | Cable Comp B Throttle | 17920K59A12 |
|
| 4 | Switch Unit Start | 35160K20T21 |
|
| 5 | Switch Unit Dimmer | 35170K59A11 |
|
| 6 | Switch Unit Horn | 35180K03N31 |
|
| 7 | Switch Unit Idle | 35190KWN901 |
|
| 8 | Switch Unit Winker | 35200K03N31 |
|
| 9 | Switch Assy FR Stop | 35340KPH901 |
|
| 9 | Switch Assy FR Stop | 35340K16901 |
|
| 9 | Switch Assy FR Stop | 35340KEV950 |
|
| 9 | Switch Assy FR Stop | 35340K81N31 |
|
| 10 | Cable Comp FR Brake Con | 43440K59A11 |
|
| 11 | Cable Comp RR Brake | 43450K59A11 |
|
| 12 | Clamper B RR Brake Cable | 43455KWN900 |
|
| 13 | Grip Comp Throttle | 53140K44V00 |
|
| 14 | Grip L Handle | 53166KWB600 |
|
| 14 | Grip L Handle | 53166K2SN00 |
|
| 15 | Housing Upper Throttle | 53167K44V00 |
|
| 16 | Housing Under Throttle | 53168K44V00 |
|
| 17 | Bracket L Brake Lever | 53172K25910 |
|
| 18 | Cover L Brake Lever Bracket | 53173GFM900 |
|
| 19 | Band Handle Bracket | 53173KVB920 |
|
| 20 | Boot Brake Lever Rod | 53176GBL870 |
|
| 21 | Lever L Steering Handle | 53178K59A10 |
|
| 22 | Equalizer Assy | 53180K25600 |
|
| 23 | Arm Comp RR Brake Lock | 53185K25910 |
|
| 24 | Cover RR Brake Lock Lever | 53186GBL870 |
|
| 25 | Spring Brake Lock Arm Return | 53188KVB920 |
|
| 26 | Screw Handle Lever Pivot | 90115KWN900 |
|
| 27 | Screw Pan 5X13 | 90118GFM900 |
|
| 28 | Nut U 5MM | 90302KVBT01 |
|
| 29 | Bolt Washer 6X20 | 934010602000 |
|
| 30 | Screw Pan 5X12 | 93500050121H |
|
| 31 | Screw Pan 5X20 | 93500050200A |
|
| 32 | Bolt Flange 6X12 | 957010601200 |
|
