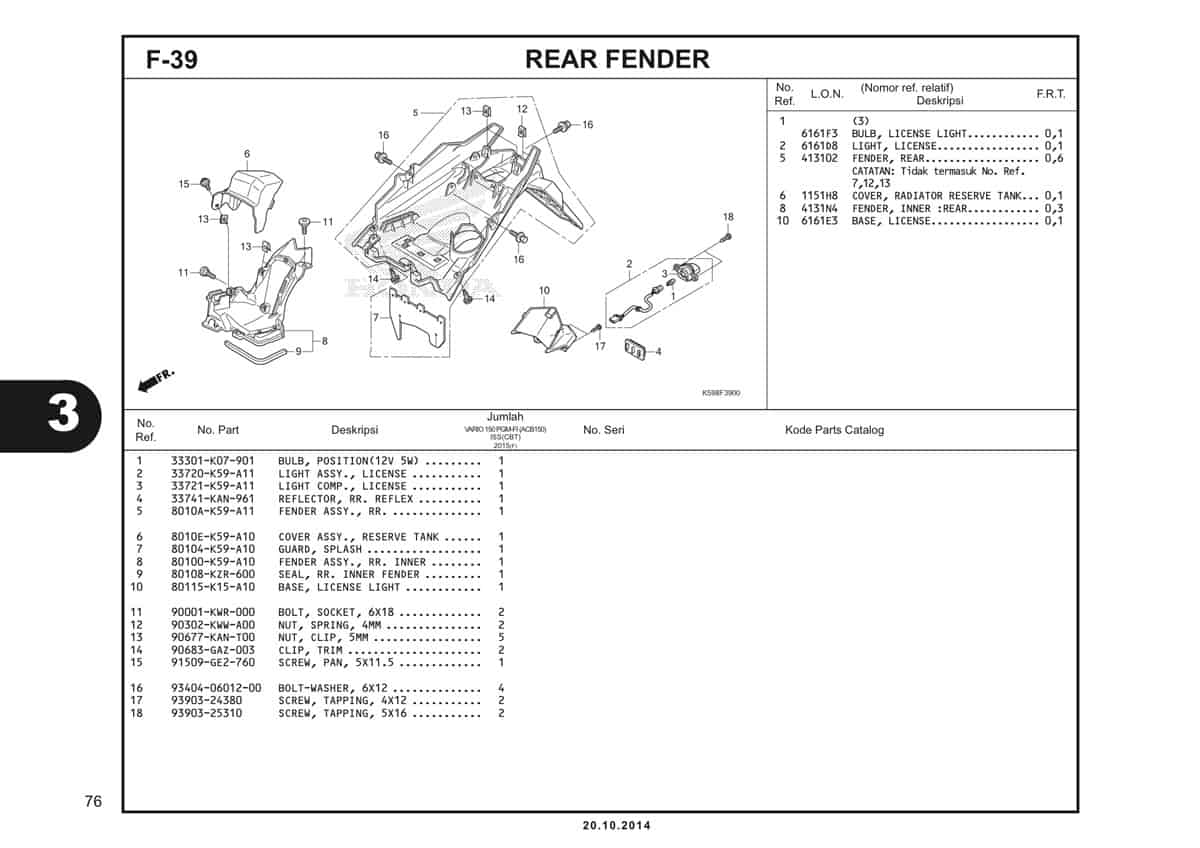

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Bulb Position | 33301K07901 |
|
| 2 | Light Assy License | 33720K59A11 |
|
| 3 | Light Comp License | 33721K59A11 |
|
| 4 | Reflector RR Reflex | 33741KAN961 |
|
| 5 | Fender REAR | 8010AK59A10 |
|
| 5 | Fender REAR | 80100K59A10 |
|
| 6 | Cover Reserve Tank | 8010EK59A10 |
|
| 7 | Guard Splash | 80104K59A10 |
|
| 8 | Fender Assy RR Inner | 8010DK59A10 |
|
| 9 | Seal RR Inner Fender | 80108KZR600 |
|
| 10 | Base License Light | 80115K59A10 |
|
| 11 | Bolt Socket 6X18 | 90001KWR000 |
|
| 12 | Nut Spring 4MM | 90302KWWA00 |
|
| 13 | Nut Spring 5MM | 90677KANT00 |
|
| 14 | Clip Trim | 90683GAZ004 |
|
| 15 | Screw Pan 5X11.5 | 91509GE2760 |
|
| 16 | Bolt Washer 6X12 | 934040601200 |
|
| 17 | Screw Tapping 4X12 | 9390324380 |
|
| 18 | Screw Tapping 5X16 | 9390325310 |
|
