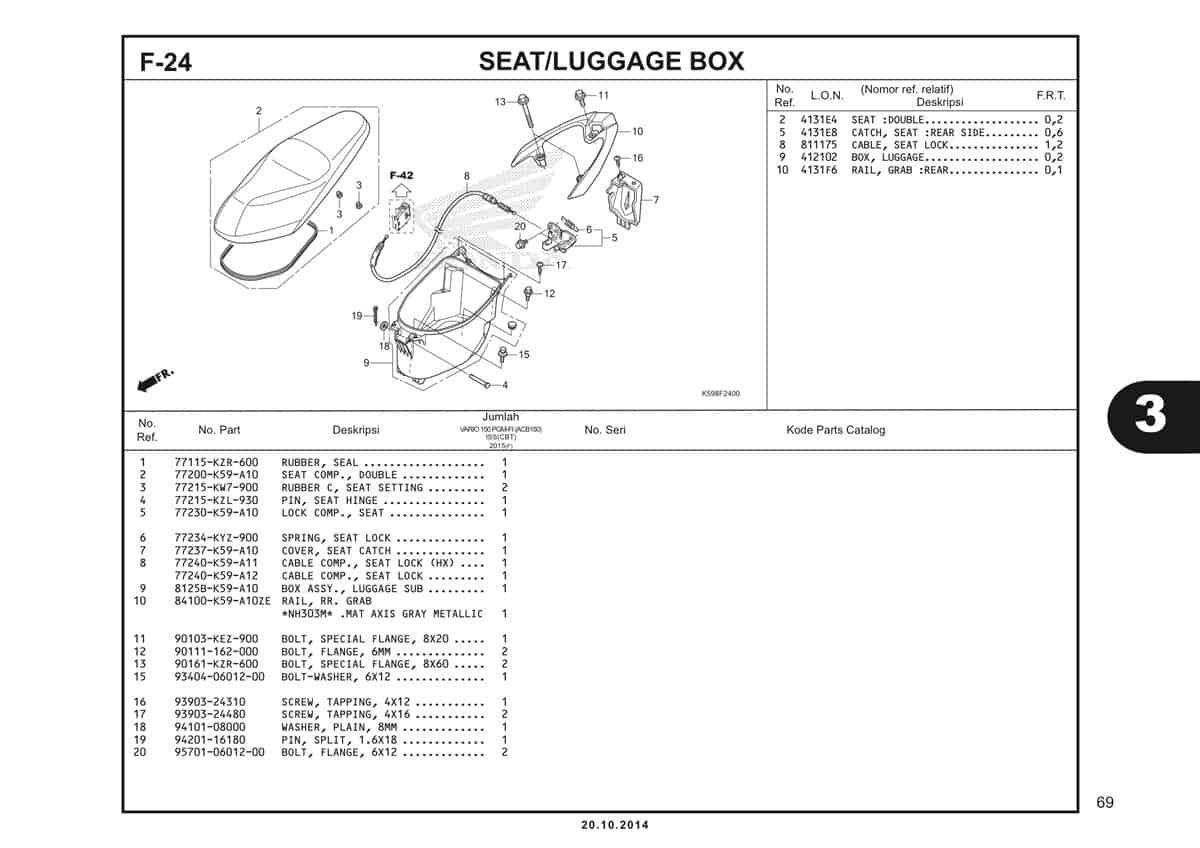

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Rubber Seal | 77115KZR600 |
|
| 2 | Seat Comp Double | 77200K59A10 |
|
| 3 | Rubber C Seat Set | 77215KW7900 |
|
| 4 | Pin SeatHinge | 77215KZL930 |
|
| 5 | Lock Comp Seat | 77230K59A10 |
|
| 6 | Spring Seat Lock | 77234KYZ900 |
|
| 7 | Cocer Seat Catch | 77237K59A10 |
|
| 8 | Cable Comp Seat Lock | 77240K59A11 |
|
| 8 | Cable Comp Seat Lock | 77240K59A12 |
|
| 9 | Box, Luggage | 81250K59A10 |
|
| 10 | Rail RR Grab | 84100K59A10ZE |
|
| 11 | Bolt Special Flange 8X20 | 90103KEZ900 |
|
| 12 | Bolt Flange 6MM | 90111162000 |
|
| 13 | Bolt Flange 8X60 | 90161KZR600 |
|
| 15 | Bolt Washer 6X12 | 934040601200 |
|
| 16 | Screw Tapping 4X12 | 9390324310 |
|
| 17 | Screw Tapping 4X16 | 9390324480 |
|
| 18 | Washer Plain 8MM | 9410108000 |
|
| 19 | Pin Split 1.6X18 | 9420116180 |
|
| 20 | Bolt Flange 6X12 | 957010601200 |
|
