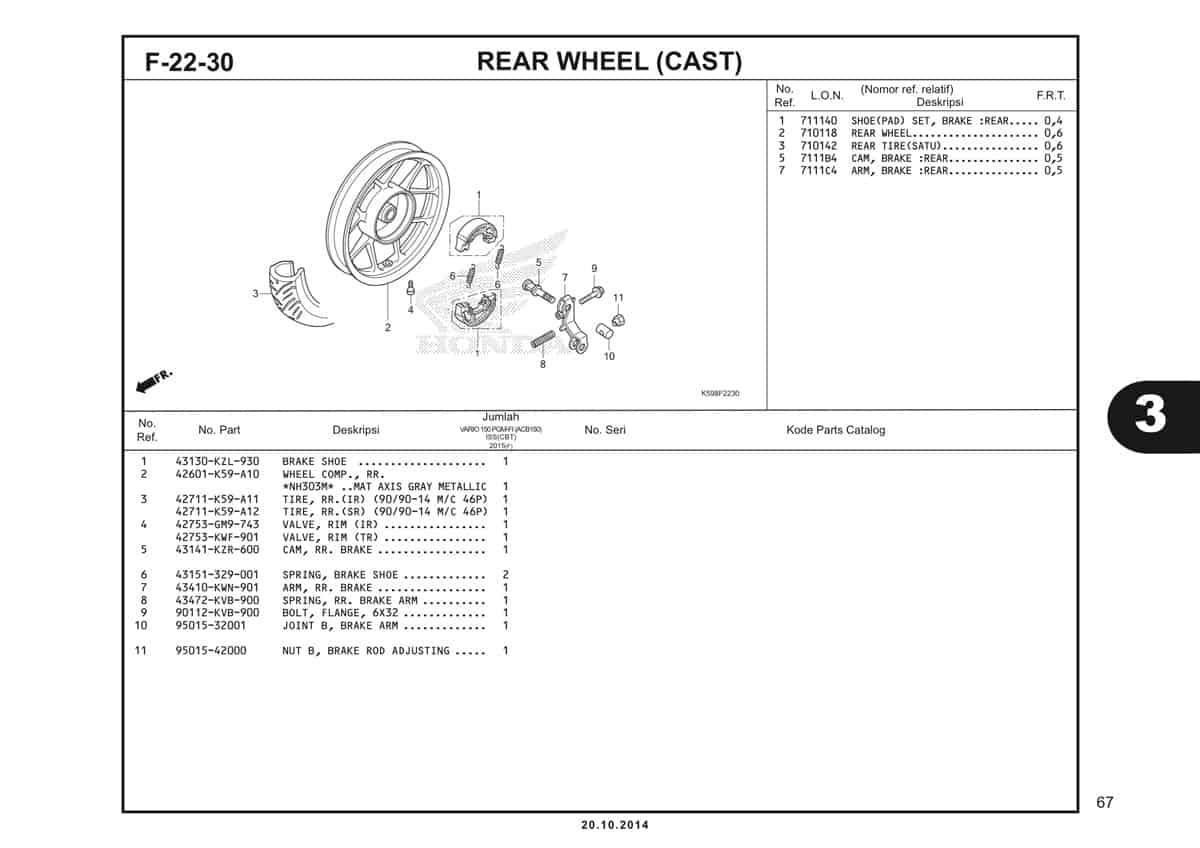

F22 – 30 – Rear Wheel – Katalog Honda Vario 150 eSP K59

#	Informasi Produk	Visual
1	Brake Shoe Part Number : `43130KZL930`
1	Brake Shoe Part Number : `06430KZL930`
1	Brake Shoe Part Number : `43130K44V80`
1	Brake Shoe Part Number : `06430KWN900`
2	Wheel Sub Assy RR Part Number : `42650K59A10ZB`
2	Wheel Comp Rear NH-303M Part Number : `42601K59A12`
3	Tire RR (90/90-14 NR83) Part Number : `42711K59A11`
3	Tire RR (90/90-14 FT235) Part Number : `42711K59A12`
3	Tire Rear SRI Part Number : `42711K59A72`
4	Valve Rim (INOUE) Part Number : `42753GM9743`
4	Valve Rim (TRITON) Part Number : `42753KWF901`
5	Cam RR Brake Part Number : `43141KZR600`
6	Spring RR Brake Part Number : `43151329001`
7	Arm Rear Brake Part Number : `43410KWN900`
8	Spring RR Brake Arm Part Number : `43472KVB900`
9	Bolt Flange 6X32 Part Number : `90112KVB900`
10	Joint B Brake Arm Part Number : `9501532001`
11	Nut B Brake Rod Adjusting Part Number : `9501542000`
