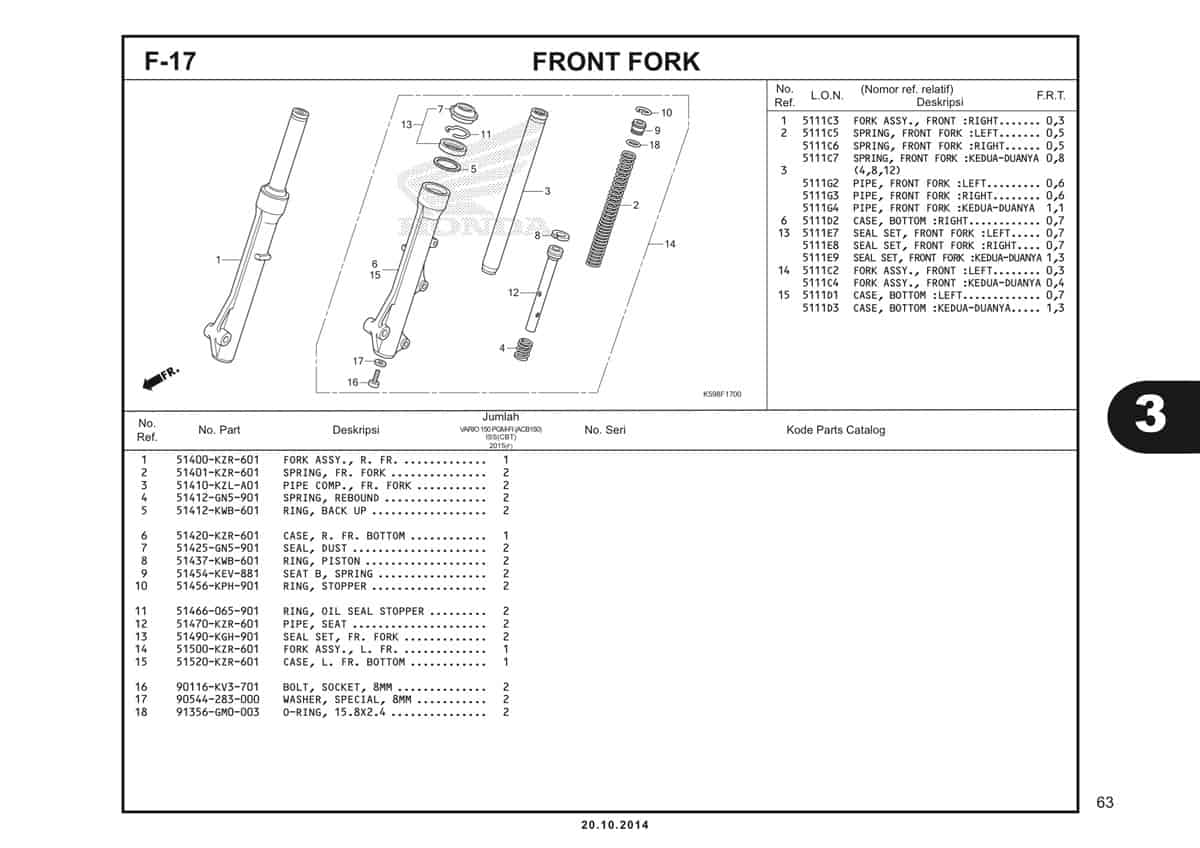

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Fork Assy R Front | 51400KZR601 |
|
| 1 | Fork Assy R Front | 51400KZR600 |
|
| 2 | Spring FR Fork | 51401KZR601 |
|
| 3 | Pipe Comp FR Fork | 51410KZLA01 |
|
| 4 | Spring Rebound | 51412GN5901 |
|
| 5 | Ring Back Up | 51412KWB601 |
|
| 6 | Case R FR Bottom | 51420KZR601 |
|
| 6 | Case R FR Bottom | 51420KZR600 |
|
| 7 | Dust Seal FR Fork | 51425GN5901 |
|
| 8 | Ring Piston | 51437KWB601 |
|
| 9 | Seat B Spring | 51454KEV881 |
|
| 10 | Ring Stopper | 51456KPH901 |
|
| 11 | Ring Oil Seal | 51466065901 |
|
| 12 | Pipe Seat | 51470KZR601 |
|
| 13 | Seal SetFR Fork | 51490KGH901 |
|
| 14 | Fork Assy L Front | 51500KZR601 |
|
| 14 | Fork Assy L Front | 51500KZR600 |
|
| 15 | Case L FR Bottom | 51520KZR601 |
|
| 15 | Case L FR Bottom | 51520KZR600 |
|
| 16 | Bolt Socket 8MM | 90116KV3701 |
|
| 17 | Washer Special (8MM) | 90544283000 |
|
| 18 | O-Ring 15.8X2.4 | 91356GM0003 |
|
