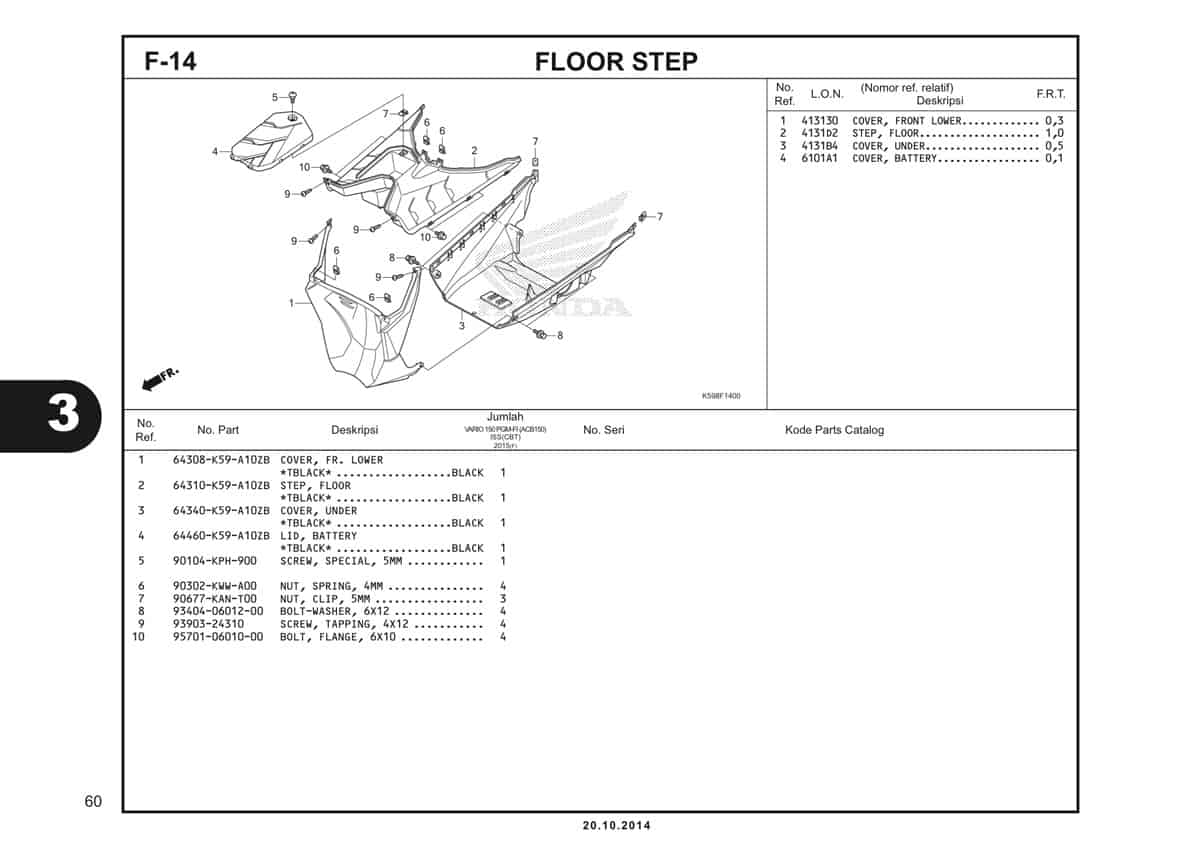

F14 – Floor Step – Katalog Honda Vario 150 eSP K59

#	Informasi Produk	Visual
1	Cover FR Lower Assy Part Number : `6430DK59A10ZB`
2	Step Floor Assy Part Number : `6431AK59A10ZB`
3	Cover Under Assy Part Number : `6434AK59A10ZB`
4	Lid Battery Part Number : `64460K59A10ZB`
5	Screw Special 5MM Part Number : `90104KPH900`
6	Nut Spring 4MM Part Number : `90302KWWA00`
6	Nut Spring 4MM Part Number : `90302K97600`
7	Nut Clip 5MM Part Number : `90677KANT00`
8	Bolt Washer 6X12 Part Number : `934040601200`
9	Screw Tapping 4X12 Part Number : `9390324310`
10	Bolt Flange 6X10 Part Number : `957010601000`
