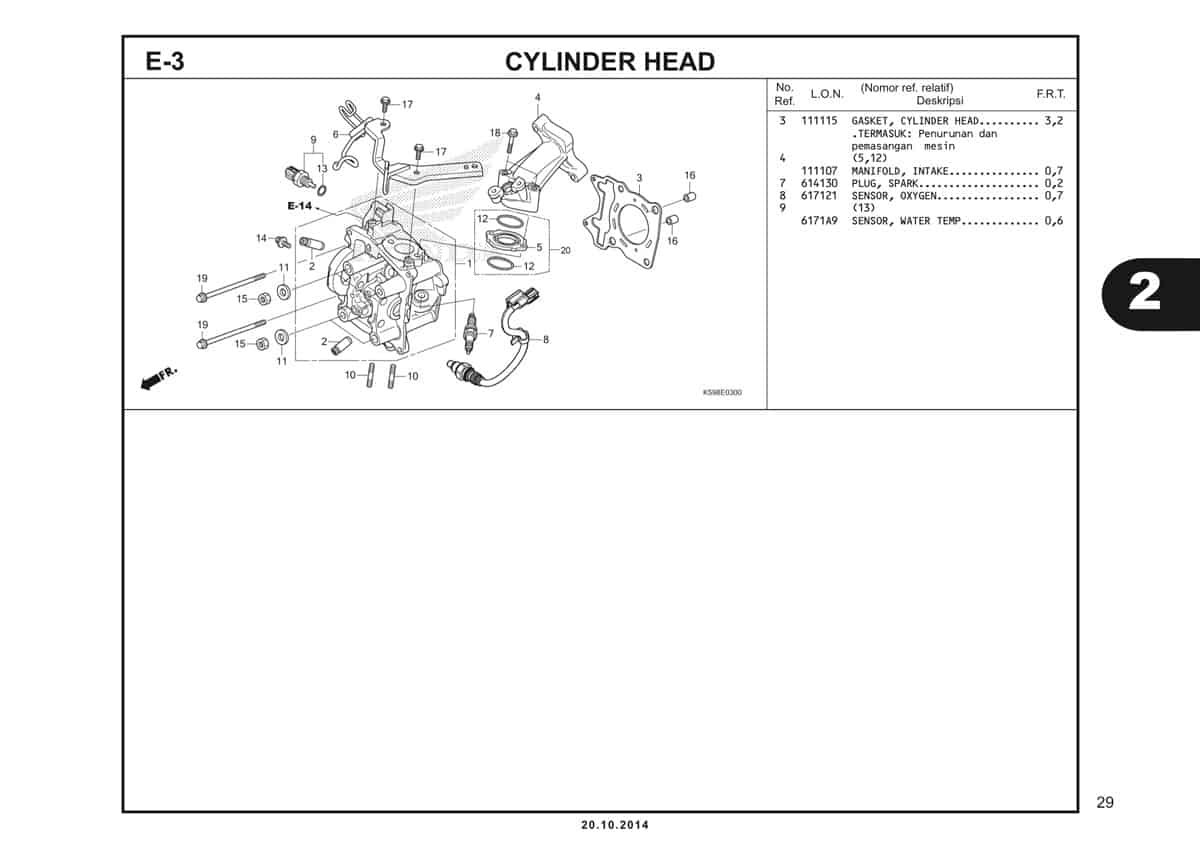

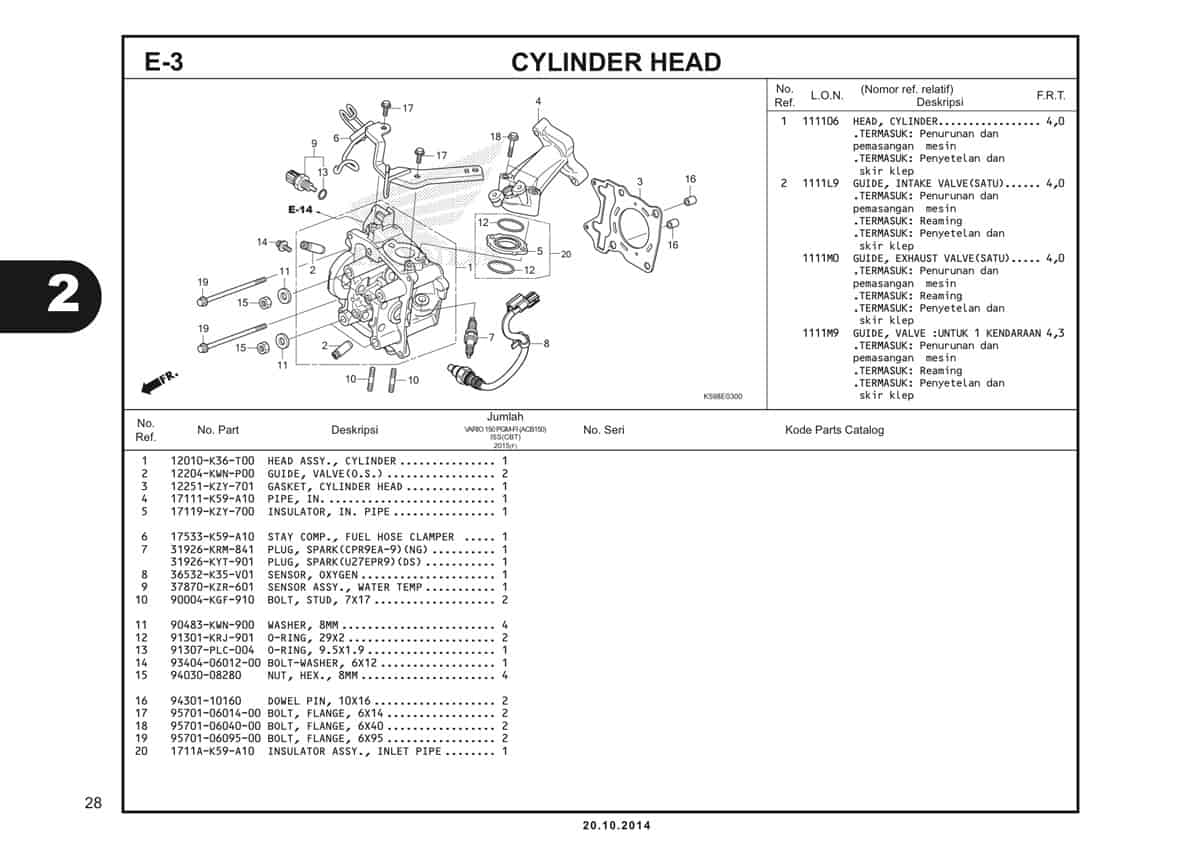

E3 – Cylinder Head – Katalog Honda Vario 150 eSP K59

#	Informasi Produk	Visual
1	Head Assy Cylinder Part Number : `12010K36T00`
1	Head Assy Cylinder Part Number : `1220AK59A10`
2	Guide Valve (OSZ) Part Number : `12204KWNP00`
3	Gasket Cylinder Head Part Number : `12251KZY701`
4	Pipe Inlet Part Number : `17111K59A10`
5	Insulator In Pipe Part Number : `17119KZY700`
6	Stay Comp Fuel Hose Clamper Part Number : `17533K59A10`
7	Spark Plug CPR9EA9 (NGK) Part Number : `31926KRM841`
7	Spark Plug U27EPR-9 (DS) Part Number : `31926KYT901`
7	Spark Plug MR9C-9N (NGK) Part Number : `31919K25601`
7	Spark Plug U27EPR-N9 (DS) Part Number : `31919K25602`
8	Sensor Oxygen Part Number : `36532K35V01`
9	Sensor Assy Water Temp Part Number : `37870KZR601`
10	Bolt Stud 7X17 Part Number : `90004KGF910`
11	Washer 8MM Part Number : `90483KWN900`
12	O-Ring 29X2 Part Number : `91301KRJ901`
13	O-Ring 9.5X1.9 Part Number : `91307PLC004`
14	Bolt Washer 6X12 Part Number : `934040601200`
15	Nut Hex 8MM Part Number : `9403008280`
16	Dowerl Pin 10X16 Part Number : `9430110160`
17	Bolt Flange 6X14 Part Number : `957010601400`
18	Bolt Flange 6X40 Part Number : `957010604000`
19	Bolt Flange 6X95 Part Number : `957010609500`
20	Insulator Inlet Pipe Assy Part Number : `1711AK59A10`
20	Insulator Inlet Pipe Assy Part Number : `17119KWN710`
