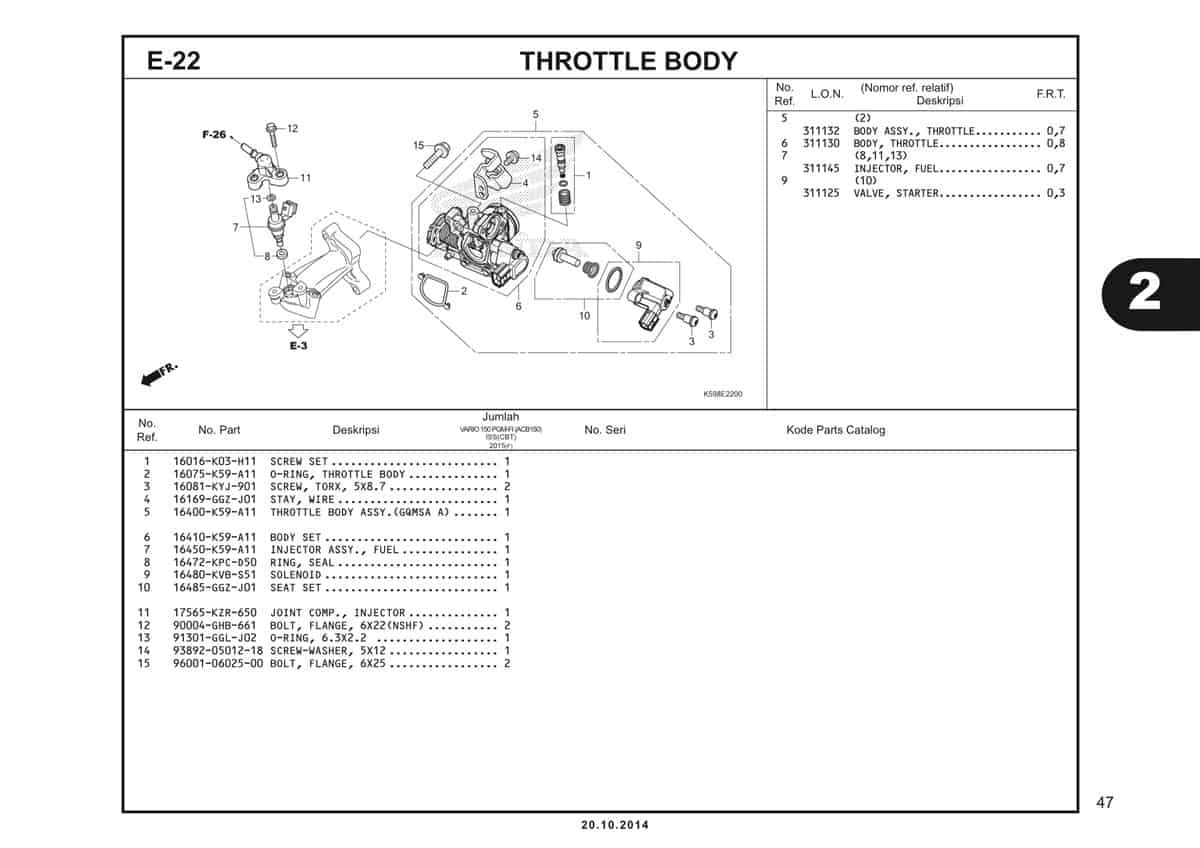

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Screw Set | 16016K03H11 |
|
| 2 | O-Ring Throttle Body | 16075K59A11 |
|
| 3 | Screw Torx 5X8.7 | 16081KYJ901 |
|
| 4 | Stay Wire | 16169GGZJ01 |
|
| 5 | Throttle Body Assy | 16400K59A11 |
|
| 6 | Body Set | 16410K59A11 |
|
| 7 | Injector Assy Fuel | 16450K59A11 |
|
| 8 | Ring Seal | 16472KPCD50 |
|
| 9 | Solenoid Set | 16480KVBS51 |
|
| 10 | Seat Set | 16485GGZJ01 |
|
| 11 | Joint Comp Injector | 17565KZR650 |
|
| 12 | Bolt Flange NSHF 6X22 | 90004GHB661 |
|
| 13 | O-Ring 6,3X2,2 | 91301GGLJ02 |
|
| 14 | Screw Washer 5X12 | 938920501218 |
|
| 15 | Bolt Flange 6X25 | 960010602500 |
|
