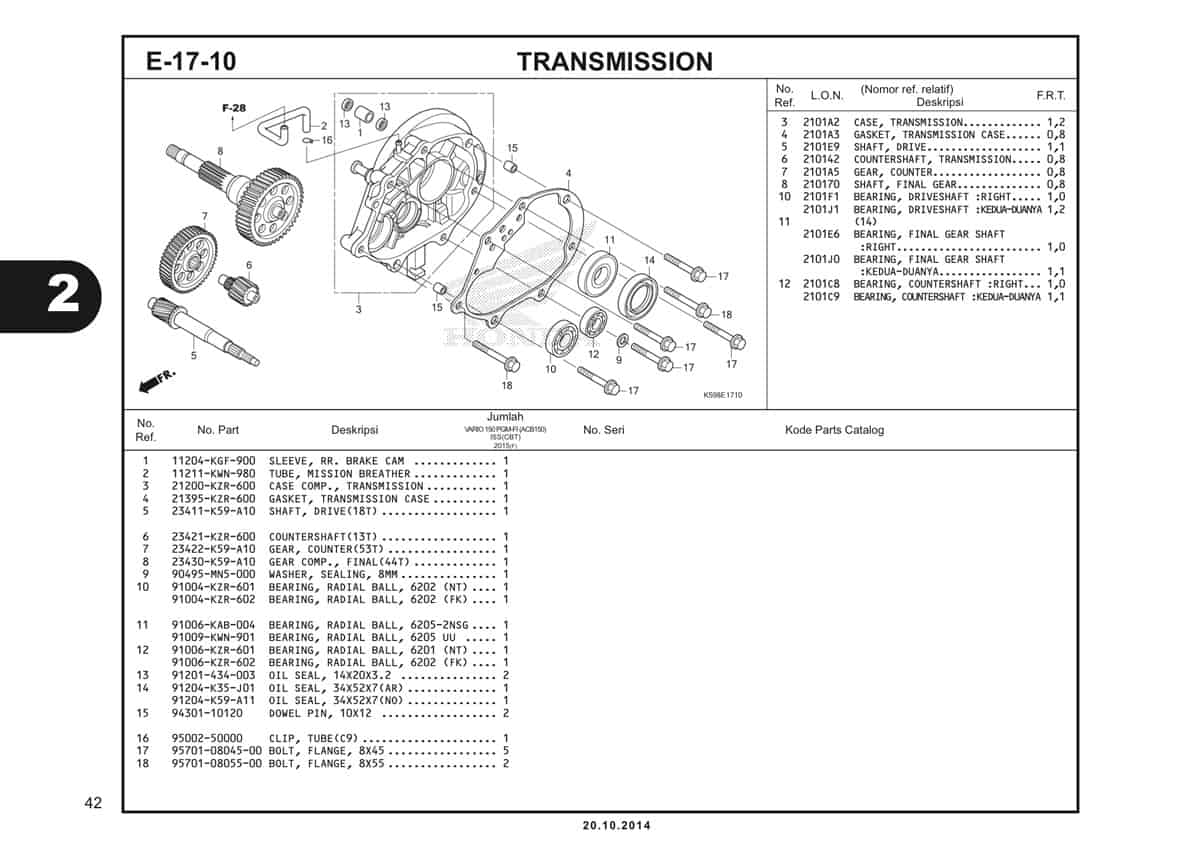

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | Sleeve RR Brake Cam | 11204KGF900 |
|
| 2 | Tube Transmission Breather | 11211KWN980 |
|
| 3 | Case Comp Transmission | 21200KZR600 |
|
| 3 | Case Comp Transmission | 2120BKZR600 |
|
| 4 | Gasket Transmission Case | 21395KZR600 |
|
| 5 | Shaft Drive (18T) | 23411K59A10 |
|
| 6 | Countershaft (13T) | 23421KZR600 |
|
| 7 | Gear Counter (53T) | 23422K59A10 |
|
| 8 | Gear Comp Final (44T) | 23430K59A10 |
|
| 9 | Washer Sealing 8MM | 90495MN5000 |
|
| 10 | Bearing Radial Ball 6202 | 91004KZR601 |
|
| 10 | Bearing Radial Ball 6202 | 91004KZR602 |
|
| 11 | Bearing Radial Ball 6205-2NSG | 91006KAB004 |
|
| 11 | Bearing Radial Ball 6205 UU | 91009KWN901 |
|
| 12 | Bearing Radial Ball 6201 | 91006KZR601 |
|
| 12 | Bearing Radial Ball 6201 | 91006KZR602 |
|
| 12 | Bearing Radial Ball 6201 | HB6201 |
|
| 12 | Bearing Radial Ball 6201 | LF6201 |
|
| 12 | Bearing Radial Ball 6201 | 91007KVB903 |
|
| 13 | Oil Seal 14X20X3.2 | 91201434003 |
|
| 13 | Oil Seal 14X20X3.2 | 91201434005 |
|
| 14 | Oil Seal 34X52X7 | 91204K35J01 |
|
| 14 | Oil Seal 34X52X7 | 91204K59A11 |
|
| 15 | Pin Dowel 10X12 | 9430110120 |
|
| 16 | Clip Tube 5.0 MM | 9500250000 |
|
| 17 | Bolt Flange 8X45 | 957010804500 |
|
| 18 | Bolt Flange 8X55 | 957010805500 |
|
