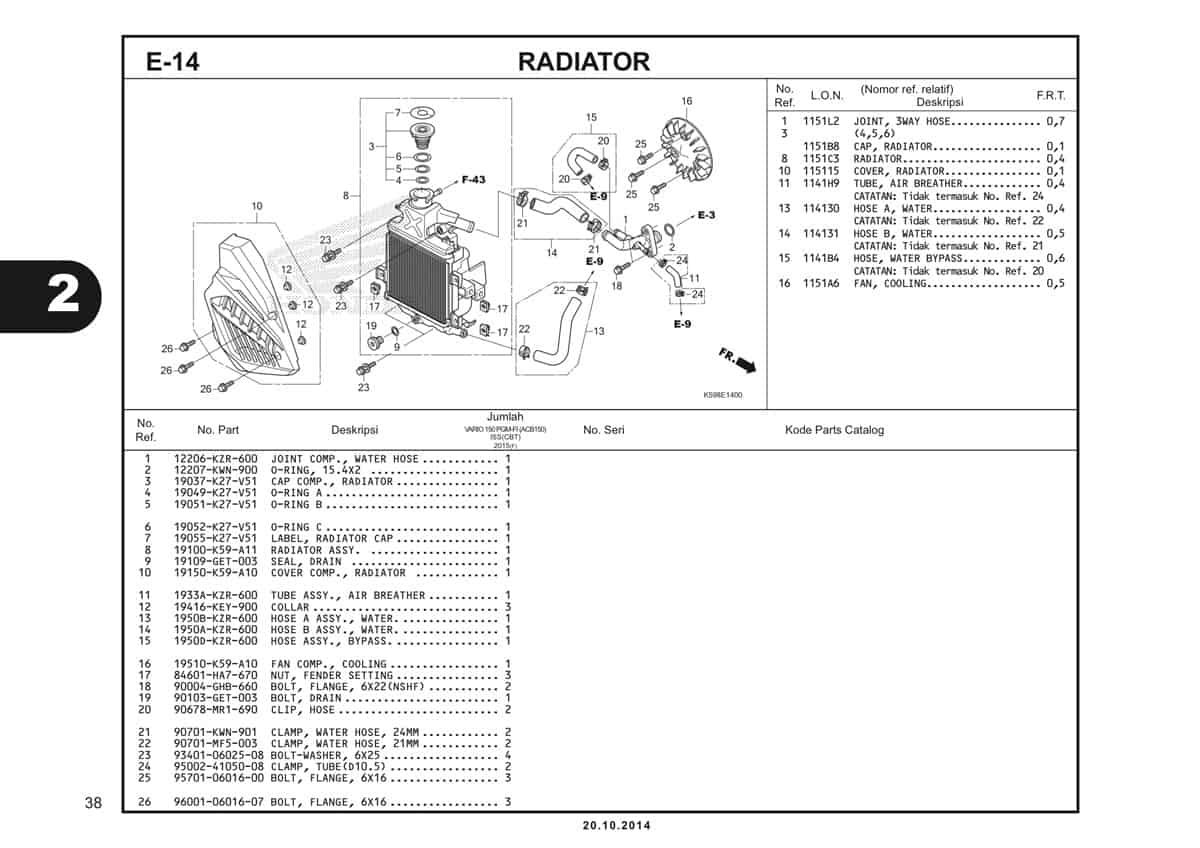

E14 – Radiator – Katalog Honda Vario 150 eSP K59

#	Informasi Produk	Visual
1	Joint Comp Water Hose Part Number : `12206K97N00`
2	O-Ring 15.4X2 Part Number : `12207KWN900`
3	Cap Comp Radiator Part Number : `19037K27V51`
4	O-Ring A Part Number : `19049K27V51`
5	O-Ring B Part Number : `19051K27V51`
6	O-Ring C Part Number : `19052K27V51`
7	Label Radiator Cap Part Number : `19055K27V51`
8	Radiator Assy Part Number : `19100K59A11`
9	Seal Ring Drain Part Number : `19109GET003`
10	Cover Comp Radiator Part Number : `19150K59A10`
11	Tube Air Breather Assy Part Number : `1933AKZR600`
12	Collar Part Number : `19416KEY900`
13	Hose A Water Assy Part Number : `1950BKZR600`
14	Hose B Water Assy Part Number : `1950AKZR600`
15	Hose Bypass Assy Part Number : `1950DKZR600`
16	Fan Comp Cooling Part Number : `19510K59A10`
17	Nut Fender Set Part Number : `84601HA7670`
18	Bolt Flange NSHF 6X22 Part Number : `90004GHB660`
19	Bolt Drain Seal Ring Part Number : `90103GET003`
20	Clip A1 Hose Part Number : `90678MR1690`
21	Clamp 24MM Water Hose Part Number : `90701KWN901`
22	Clamp Water Hose 21MM Part Number : `90701MF5003`
23	Bolt Washer 6X25 Part Number : `934010602508`
24	Clip Tube 10.5MM Part Number : `950024105008`
25	Bolt Flange 6X16 Part Number : `957010601600`
26	Bolt Flange 6X16 Part Number : `960010601607`
