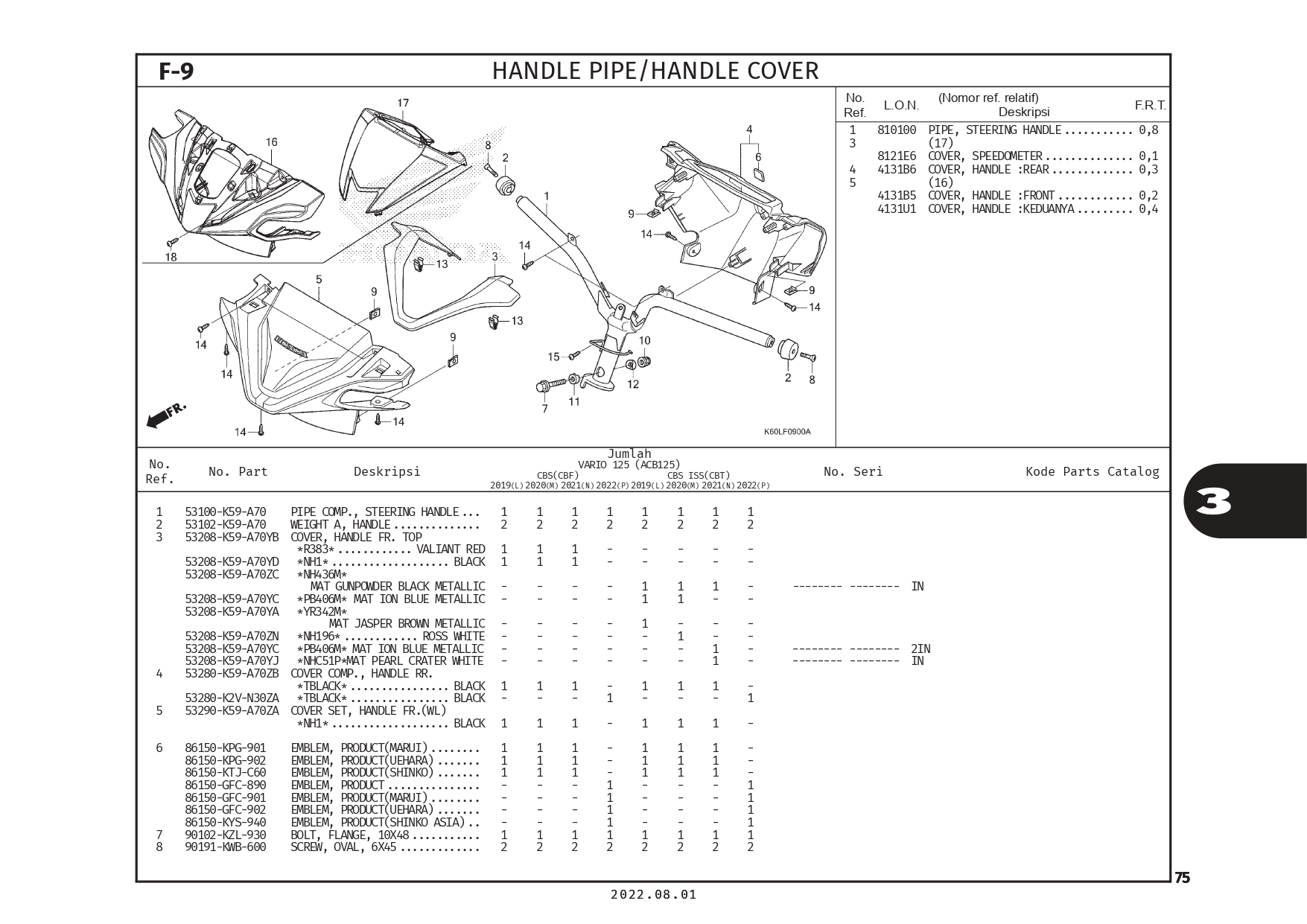

F-9 Handle Pipe Handle Cover – Katalog Suku Cadang Honda Vario 125 K2V

#	Informasi Produk	Visual
1	PIPE COMP,STRG HANDLE Part Number : `53100K59A70`
2	WEIGHT A,HANDLE Part Number : `53102K59A70`
4	COVER COMP,HANDLE RR (BLACK) Part Number : `53280K2VN30ZA`
5	Set Illust Handle Front Cover type 2 Part Number : `53290K59A70ZA`
6	EMBLEM,PRODUCT Part Number : `86150GFC890`
6	EMBLEM, PRODUCT(MARUI) Part Number : `86150GFC901`
6	EMBLEM, PRODUCT(UEHARA) Part Number : `86150GFC902`
6	EMBLEM,PRODUCT Part Number : `86150KYS940`
7	BOLT FLANGE DR 10X48 Part Number : `90102KZL930`
8	SCREW OVAL 6X45 Part Number : `90191KWB600`
9	NUT SPRING 4MM Part Number : `90302KWWA00`
10	NUT U10MM Part Number : `90304KGH901`
11	COLLAR A HDL SET Part Number : `90501KPH880`
12	COLLAR B HDL SET Part Number : `90505KPH880`
13	CLIP SNAP FIT(PO) Part Number : `90666K59A11`
13	CLIP SNAP FIT (P0) Part Number : `90666SDAA01`
14	SCREW TAPPING 4X12 Part Number : `9390324380`
15	SCREW TAPPING 5X16 Part Number : `9390335380`
16	COVER,HANDLE FR (MT GN BL) Part Number : `53205K2VN30ZC`
17	COVER,HANDLE TOP (BLK) Part Number : `53208K2VN30FMB`
17	COVER,HANDLE TOP (MT GN BL) Part Number : `53208K2VN30MGB`
17	COVER,HANDLE TOP (MA BL MT) Part Number : `53208K2VN30MIB`
17	COVER,HANDLE TOP (MA PR CR) Part Number : `53208K2VN30MPC`
17	COVER,HANDLE TOP (VA RD) Part Number : `53208K2VN30VRD`
18	SCREW, TAPPING, 4X16 Part Number : `9390324480`
