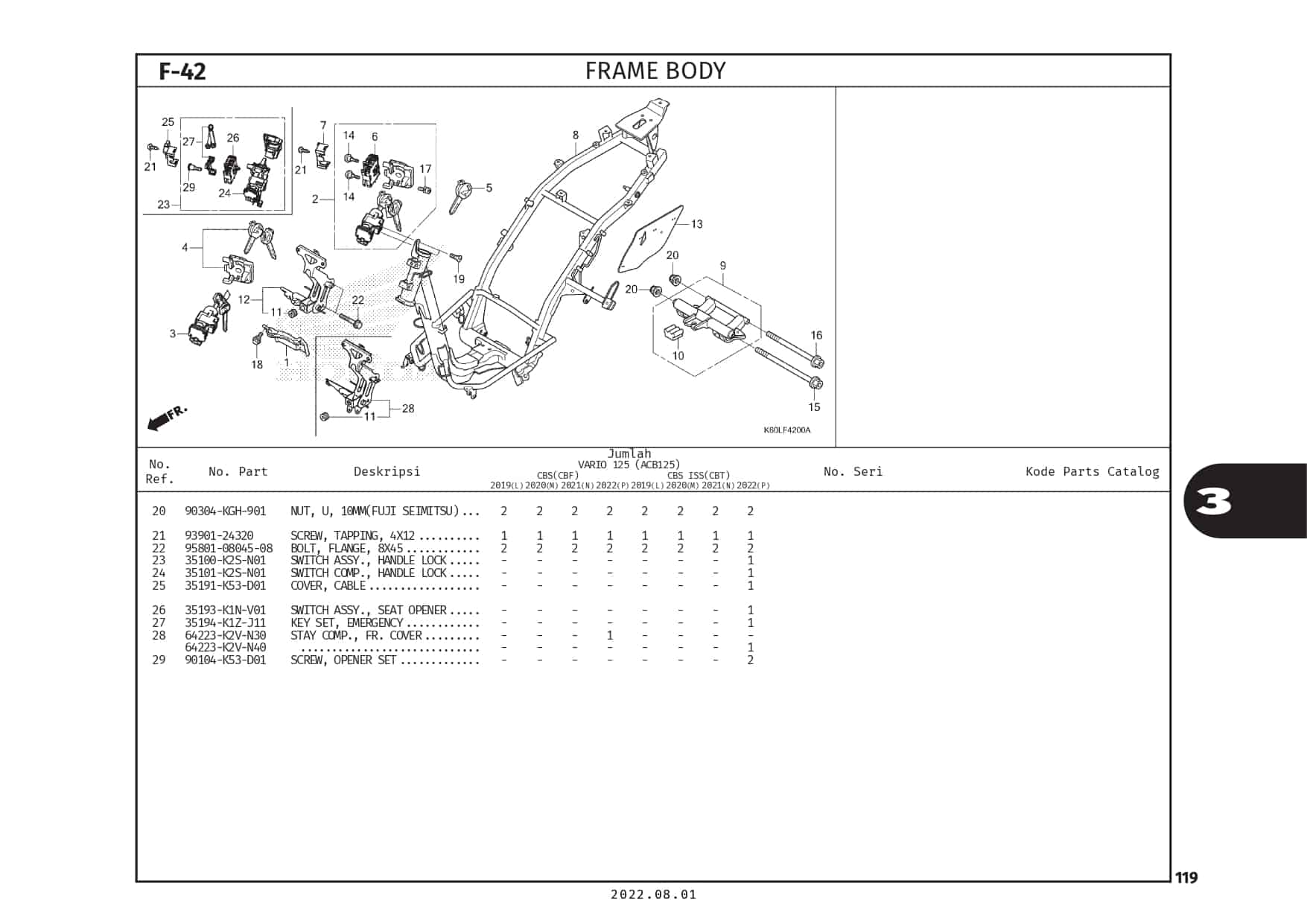

F-42 Frame Body – Katalog Suku Cadang Honda Vario 125 K2V

#	Informasi Produk	Visual
2	SWITCH ASSY,COMB&LOCK Part Number : `35100K60B62`
3	SWITCH COMP,COMB&LOCK Part Number : `35101K97A01`
4	SHUTTER,KEY Part Number : `35110K60B61`
5	KEY,BLANK Part Number : `35121K46N00`
6	SW ASSY,SEAT OPENER Part Number : `35190K1AN01`
7	COVER CABLE Part Number : `35191K27V01`
8	FRAME BODY COMP Part Number : `50100K2VN30`
9	LINK ASSY ENG HANGER Part Number : `50350K59A10`
10	RUBBER, LINK STOPPER Part Number : `50352K59A10`
11	RUBBER SCREEN SETTING Part Number : `64216GJ2730`
13	GUARD, DUCT Part Number : `80106K59A70`
14	SCREW,SCREEN SET Part Number : `90101MT4000`
15	BOLT FLANGE 10X270 Part Number : `90105KVY900`
16	BOLT, FLANGE, 10X238 Part Number : `90106GCCC50`
17	BOLT,SOCKET,5X9 Part Number : `90111MR5000`
19	SCREW U-LOCK FLAT 6X12 Part Number : `90164KZLA00`
20	NUT U10MM Part Number : `90304KGH901`
21	SCREW,TAPP 4X12 Part Number : `9390124320`
22	BOLT, FLANGE, 8X45 Part Number : `958010804508`
23	SWITCH ASSY,HNDL LOCK Part Number : `35100K2SN01`
24	SWITCH COMP,HNDL LOCK Part Number : `35101K2SN01`
25	COVER CABLE Part Number : `35191K53D01`
26	SW ASSY,SEAT OPENER Part Number : `35193K1NV01`
27	SET,EMERGENCY KEY Part Number : `35194K1ZJ11`
28	STAY COMP,FR COVER Part Number : `64223K2VN30`
28	STAY COMP,FR COVER Part Number : `64223K2VN40`
29	SCREW OPENER SET Part Number : `90104K53D01`
