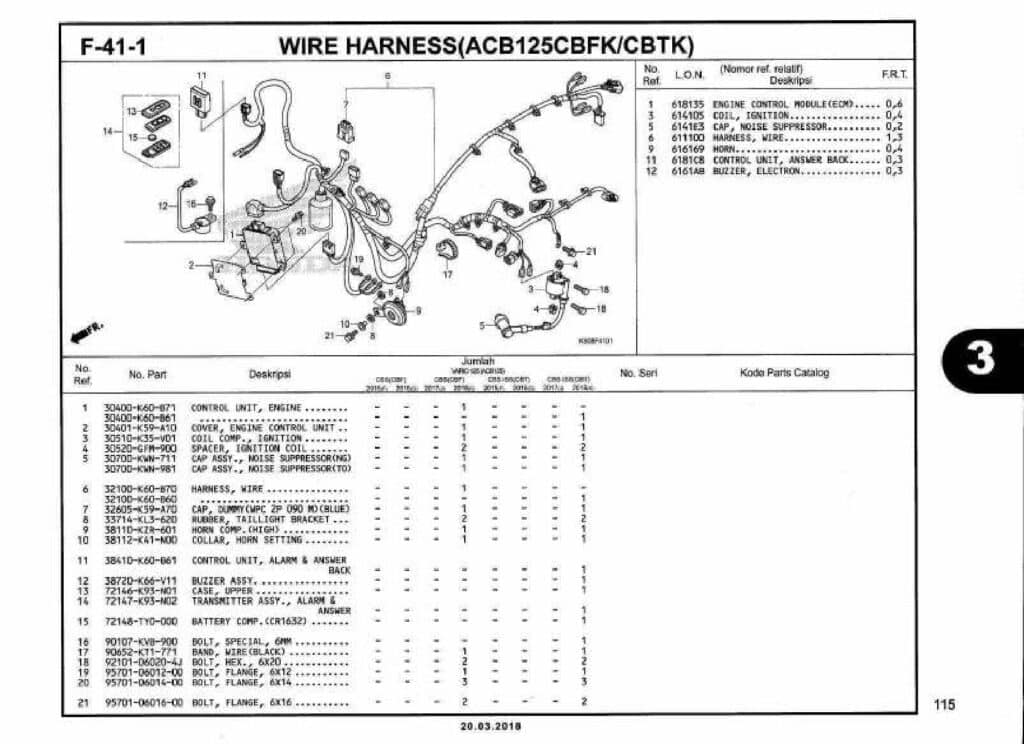

F-41 Wire Harness – Katalog Suku Cadang Honda Vario 125 K2V

#	Informasi Produk	Visual
1	ENG CONTROL UNIT Part Number : `30400K60B71`
1	ENG CONTROL UNIT Part Number : `30400K60B61`
2	COVER, ENGINE CONTROL UNIT Part Number : `30401K59A10`
3	COIL COMP IGNITION Part Number : `30510K35V01`
4	SPACER IGN COIL Part Number : `30520GFM900`
5	CAP ASSY NOISE SUP Part Number : `30700KWN711`
5	CAP ASSY NOISE SUPPRESSOR Part Number : `30700KWN981`
6	HARNESS WIRE Part Number : `32100K60B70`
6	HARNESS WIRE Part Number : `32100K60B60`
7	DUMMY WPC 2P 090M (BLUE) Part Number : `32605K59A70`
8	RUBTAIL/LT BRKT. Part Number : `33714KL3620`
9	HORN COMP.(HIGH) Part Number : `38110KZR601`
10	COLLAR, HORN SETTING Part Number : `38112K41N00`
11	CONTROL UNIT,ALRM & ANSWR Part Number : `38410K60B61`
12	BUZZER ASSY NG LIGHT Part Number : `38720K66V11`
13	CASE UPPER Part Number : `72146K93N01`
14	Transmiter Part Number : `72147K93N02`
15	Battrrey Part Number : `35148K78N10`
16	BOLT SPECIAL 6MM Part Number : `90107KVB900`
17	BAND, WIRE Part Number : `90652KT1771`
18	BOLT HEX 6X20 Part Number : `92101060204J`
19	BOLT FLANGE 6X12 Part Number : `957010601200`
20	BOLT FLANGE 6X14 Part Number : `957010601400`
21	BOLT FLANGE 6X16 Part Number : `957010601600`
