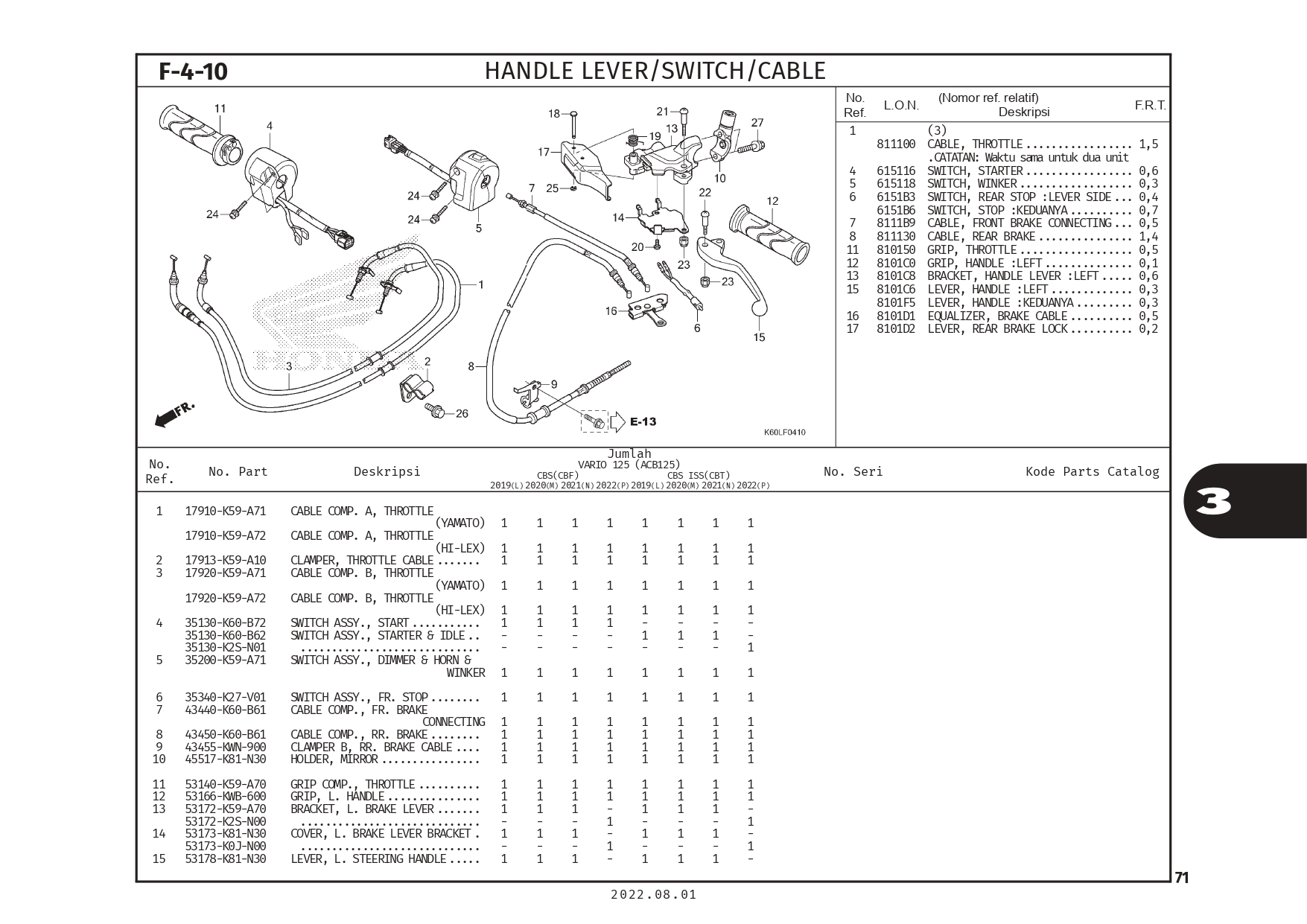

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CABLE COMP A,THROT | 17910K59A71 |
|
| 1 | CABLE COMP A,THROT | 17910K59A72 |
|
| 2 | CLAMPER, THROTTLE CABLE | 17913K59A10 |
|
| 3 | CABLE COMP B,THROT | 17920K59A71 |
|
| 3 | CABLE COMP B,THROT | 17920K59A72 |
|
| 4 | SW ASSY,START IDLE | 35130K60B72 |
|
| 5 | SW ASSY,DIM HORN WINKER | 35200K59A71 |
|
| 6 | SW ASY FR STOP(WATER PROF) | 35340K27V01 |
|
| 7 | CABLE COMP,FR BRK CONN. | 43440K60B61 |
|
| 8 | CABLE COMP,RR BRK | 43450K60B61 |
|
| 9 | CLAMPER B,RR BRK CABLE | 43455KWN900 |
|
| 10 | HOLDER, MIRROR | 45517K81N30 |
|
| 11 | GRIP COMP,THROT | 53140K59A70 |
|
| 12 | GRIP L HDL | 53166KWB600 |
|
| 12 | GRIP L HDL | 53166K2SN00 |
|
| 13 | BRACKET,L BRAKE LEVER | 53172K2SN00 |
|
| 14 | COVER,L BRK LEVER BRKT | 53173K0JN00 |
|
| 15 | LEVER, L STRG HANDLE | 53178K2SN00 |
|
| 16 | EQUALIZER COMP | 53184K59A70 |
|
| 17 | LEVER COMP,BRAKE LOCK | 53185K1AN00 |
|
| 18 | PIN BRAKE LOCK LEVER | 53186K81N30 |
|
| 19 | SPRING BRAKE LOCK ARM RETURN | 53188K81N30 |
|
| 20 | SCREW PAN 5X8 | 90104K81N30 |
|
| 21 | SCREW,HNDL LEVER PIVOT | 90115K1AN00 |
|
| 22 | SCREW,HNDL LEVERPIVOT | 90115KWN900 |
|
| 23 | NUT,U,5MM | 90302KVBT01 |
|
| 24 | SCREW,WASHER 5X20 | 938920502007 |
|
| 25 | E-RING 3 MM | 9454003010 |
|
| 26 | BOLT FLANGE 6X12 | 957010601200 |
|
| 27 | BOLT FLANGE 6X22 | 960010602207 |
|
