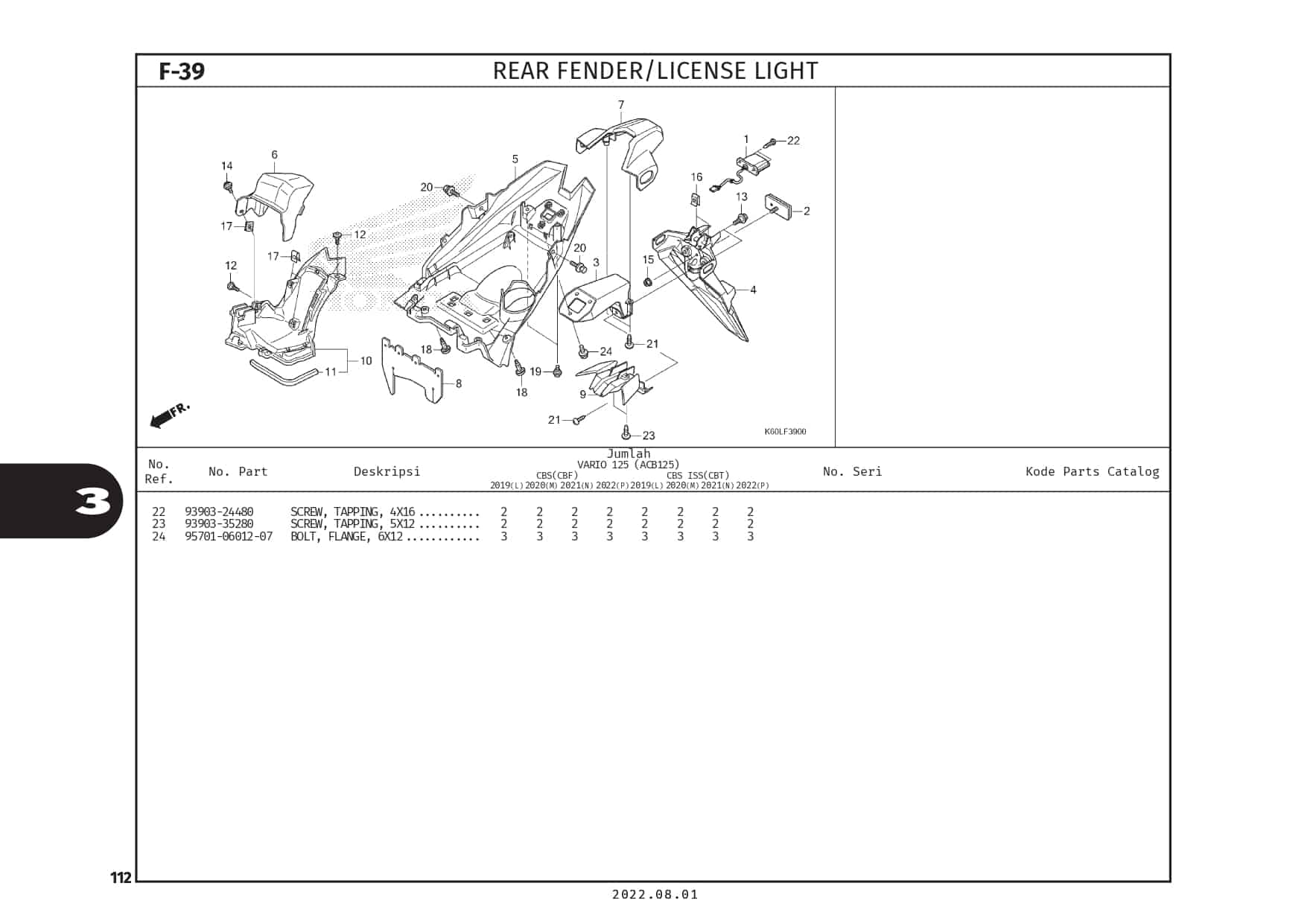

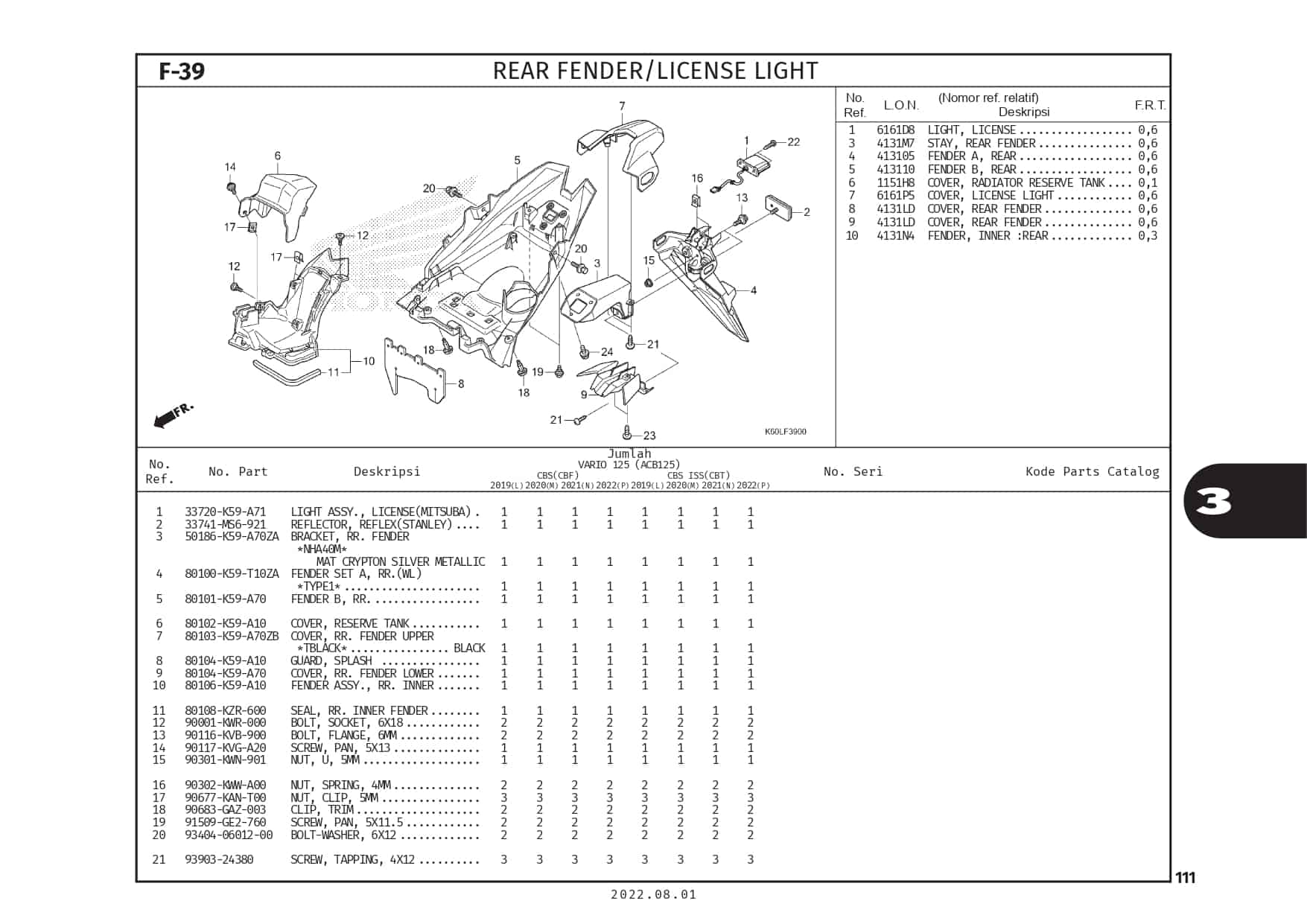

F-39 Rear Fender License Light – Katalog Suku Cadang Honda Vario 125 K2V

#	Informasi Produk	Visual
1	LIGHT ASSY, LICENSE Part Number : `33720K59A71`
2	REFLECTOR REFLEX(ST) Part Number : `33741MS6921`
3	BRKT,REAR FENDER NH-A40M Part Number : `50186K59A70ZA`
4	ST ILST,RR FENDER A TYPE 1 Part Number : `80105K59A70`
5	FENDER B, REAR Part Number : `80101K59A70`
6	COVER,RESERVE TANK Part Number : `80102K59A10`
7	COVER, REAR FENDER UPPER Part Number : `80103K59A70ZB`
8	GUARD, SPLASH Part Number : `80104K59A10`
9	COVER,REAR FENDER LOWER Part Number : `80104K59A70`
10	FENDER ASSY, RR INNER Part Number : `80106K59A10`
11	SEAL, RR. INNER FENDER Part Number : `80108KZR600`
12	BOLT, SOCKET, 6X18 Part Number : `90001KWR000`
13	BOLT FLANGE 6MM Part Number : `90116KVB900`
14	SCREW PAN 5X13 Part Number : `90117KVGA20`
15	NUT, U, 5MM Part Number : `90301KWN901`
16	NUT SPRING 4MM Part Number : `90302KWWA00`
17	NUT CLIP 5MM. Part Number : `90677KANT00`
18	CLIP,TRIM Part Number : `90683GAZ003`
19	SCREW PAN 5X11.5 Part Number : `91509GE2760`
20	BOLT WASHER 6X12 Part Number : `934040601200`
21	SCREW TAPPING 4X12 Part Number : `9390324380`
22	SCREW, TAPPING, 4X16 Part Number : `9390324480`
23	SCREW, TAPPING, 5X12 Part Number : `9390335280`
24	BOLT FLANGE 6X12 Part Number : `957010601207`
