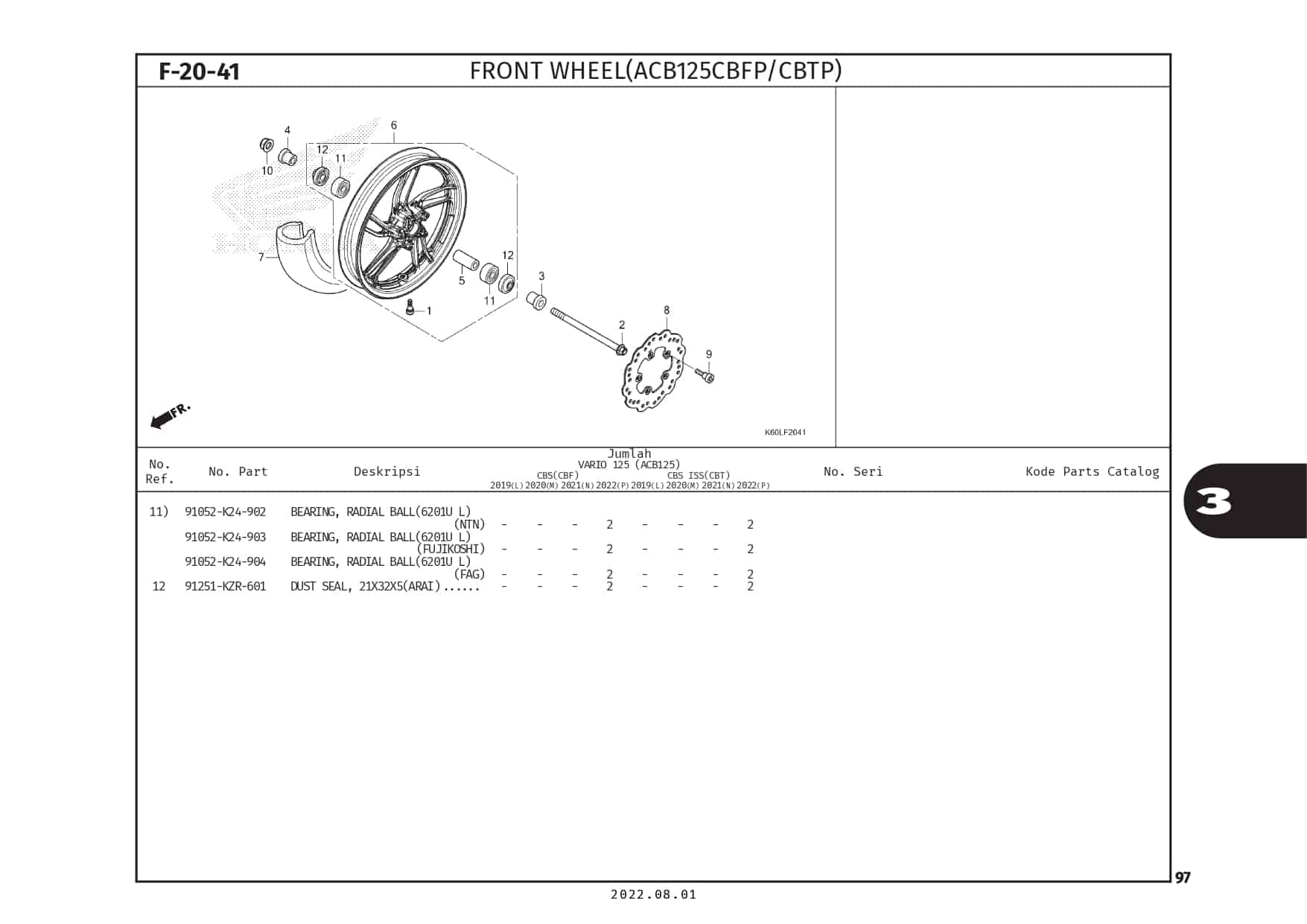

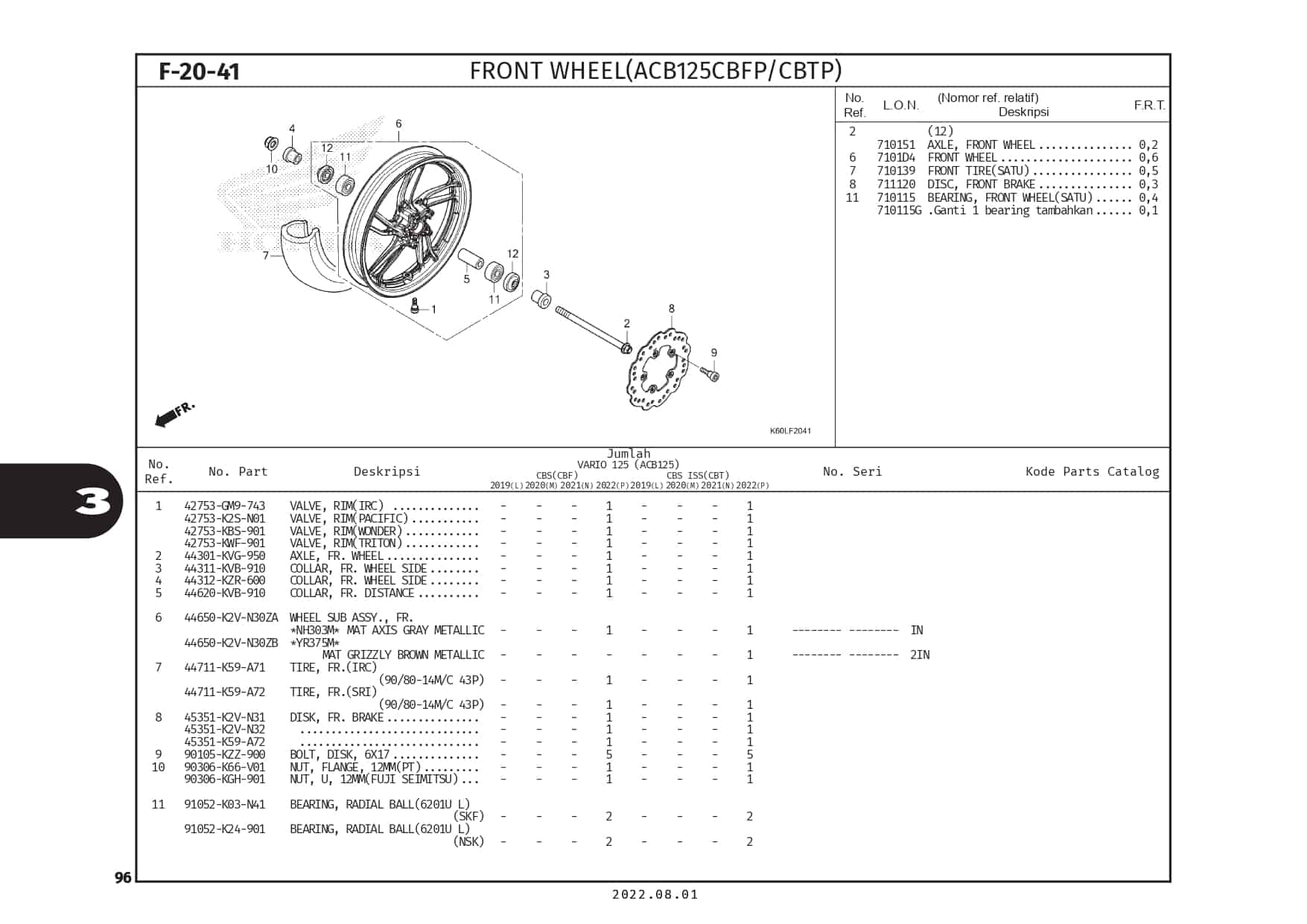

F-20-41 Front Wheel – Katalog Suku Cadang Honda Vario 125 K2V

#	Informasi Produk	Visual
1	VALVE,RIM (INOUE) Part Number : `42753GM9743`
1	VALVE RIM (PIRELLI) Part Number : `42753KBS901`
1	VALVE,RIM(TRITON) Part Number : `42753KWF901`
2	AXLE FR WHEEL Part Number : `44301KVG950`
3	COLLAR FR WHEEL SIDE Part Number : `44311KVB910`
4	COLLAR, FR. WHEEL SIDE Part Number : `44312KZR600`
5	COLLAR FR DISTANCE Part Number : `44620KVB910`
6	WHEEL SUB ASSY,FRONT (GREY) Part Number : `44650K2VN30ZA`
6	WHEEL SUB ASSY,FRONT (BROWN) Part Number : `44650K2VN30ZB`
6	Wheel Front Brown Part Number : `44601K59A72MBR`
7	TIRE,FRONT(IRC) Part Number : `44711K59A71`
7	TIRE FR TL (90/80-14) Part Number : `44711K59A72`
7	TIRE,FRONT Federal Part Number : `44711K59A12`
8	DISK,FR BRAKE Part Number : `45351K2VN31`
8	DISK,FR BRAKE Part Number : `45351K2VN32`

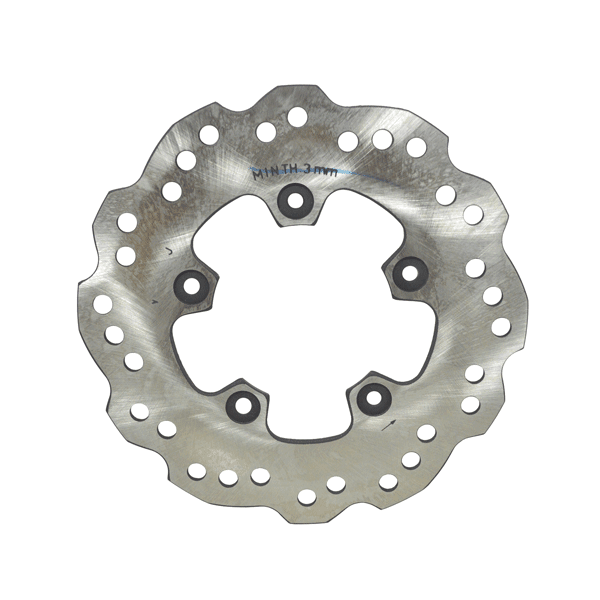

8	DISK, FR BRAKE Part Number : `45351K59A72`
9	BOLT DISK 6X17 R 8X20 Part Number : `90105KZZ900`
10	NUT,U,12MM Part Number : `90306KGH901`
11	BRG BALL RADIAL 6201U L Part Number : `91052K03N41`
11	BRG,BALL RADIAL 6201U L Part Number : `91052K24902`
11	BRG,BALL RADIAL 6201U L Part Number : `91052K24903`
11	BEARING RADIAL BALL(6201U L) Part Number : `91052K24904`
12	DUST SEAL, 21X32X5 Part Number : `91251KZR601`
