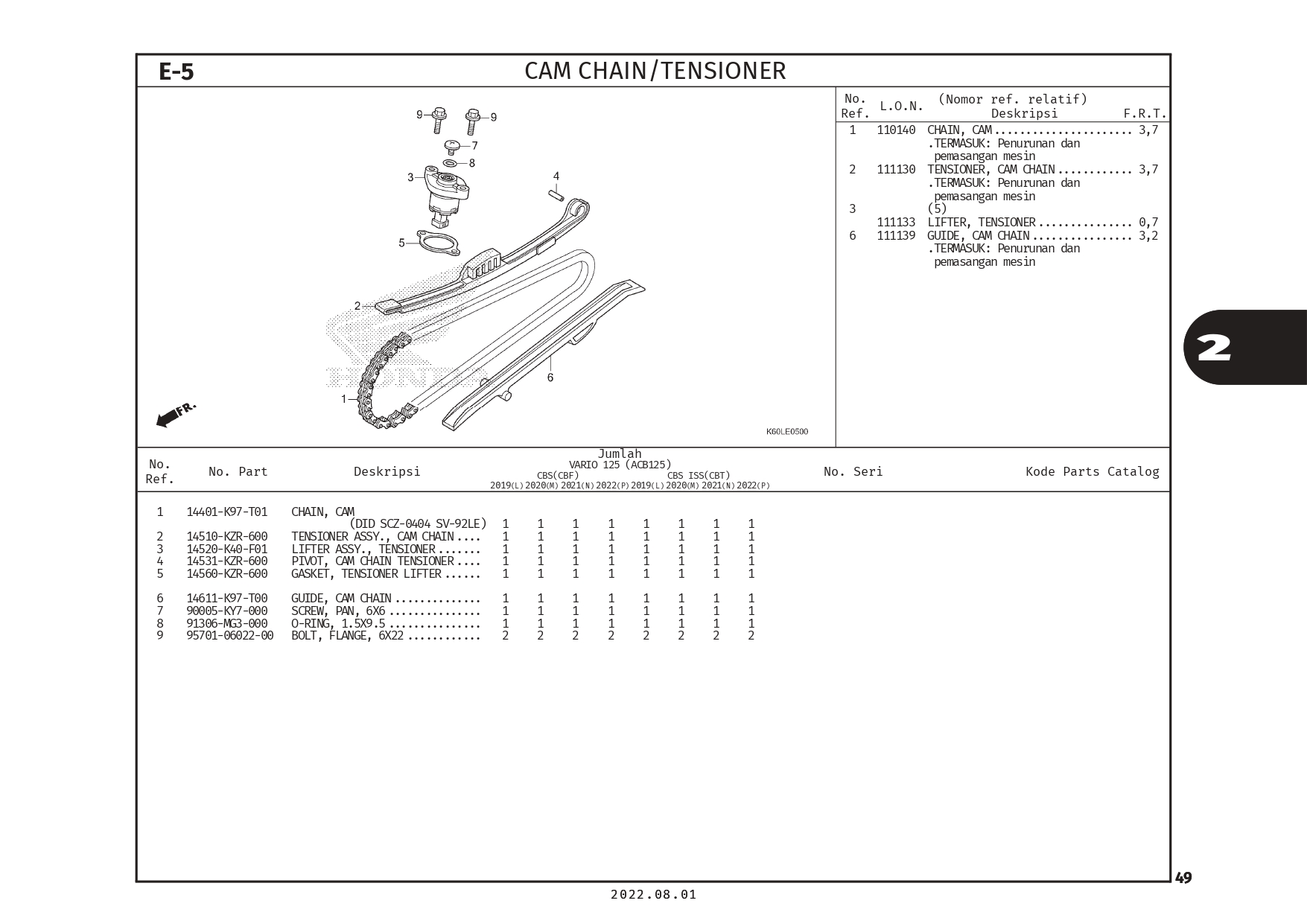

E-5 Cam Chain Tensioner – Katalog Suku Cadang Honda Vario 125 K2V

#	Informasi Produk	Visual
1	CHAIN,CAM DID SCZ SV-92LE Part Number : `14401K97T01`
2	TENSIONER ASSY., CAM CHAIN Part Number : `14510KZR600`
3	LIFTER ASSY TENSI Part Number : `14520K40F01`
4	PIVOT, CAM CHAIN TENSIONER Part Number : `14531KZR600`
5	GASKET, TENSIONER LIFTER Part Number : `14560KZR600`
6	GUIDE,CAM CHAIN Part Number : `14611K97T00`
7	SCREW PAN 6X6 Part Number : `90005KY7000`
8	O RING 1.5 X 9.5 Part Number : `91306MG3000`
9	BOLT FLANGE 6X22 Part Number : `957010602200`
9	BOLT FLANGE 6X22 Part Number : `957010602208`
9	BOLT FLANGE 6X22 Part Number : `957010602207`
