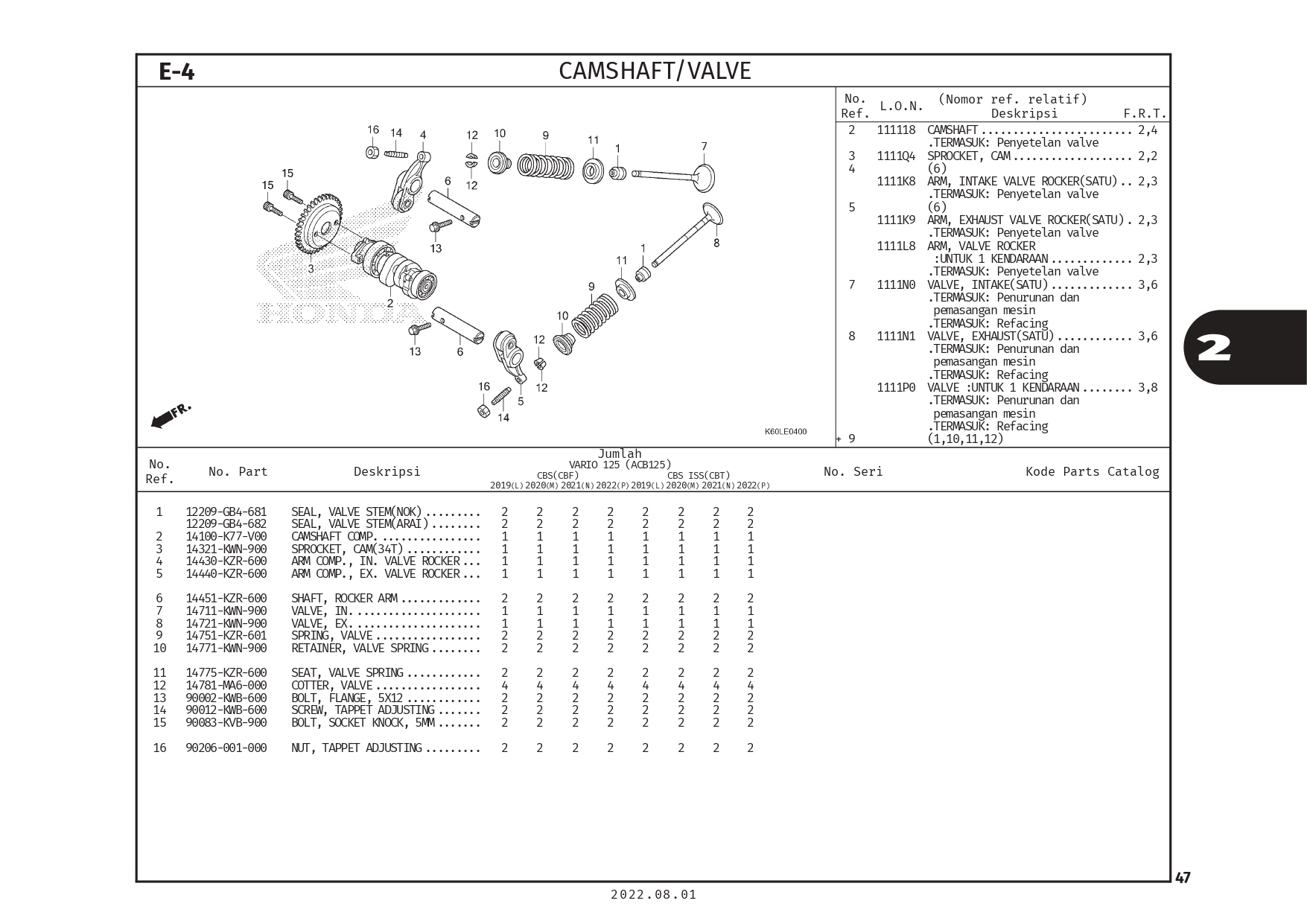

E-4 CamShaft Valve – Katalog Suku Cadang Honda Vario 125 K2V

#	Informasi Produk	Visual
1	SEAL,VALVE STEM Part Number : `12209GB4681`
1	SEAL VLV. STEM Part Number : `12209GB4682`
2	SHAFT COMP CAM Part Number : `14100K77V00`
3	SPROCKET CAM Part Number : `14321KWN900`
4	ARM COMP,IN VALVE ROCKER Part Number : `14430KZR600`
5	ARM COMP,EX VALVE ROCKER Part Number : `14440KZR600`
6	SHAFT, ROCKER ARM Part Number : `14451KZR600`
7	VALVE, INLET Part Number : `14711KWN900`
8	VALVE, EXHAUST Part Number : `14721KWN900`
9	SPRING, VALVE Part Number : `14751KZR601`
10	RETAINER,VALVE SPRING Part Number : `14771KWN900`
11	SEAT, VALVE SPRING Part Number : `14775KZR600`
12	COTTER,VALVE Part Number : `14781MA6000`
13	BOLT FLANGE 5X12 Part Number : `90002KWB600`
14	SCREW,TAPPET ADJUSTING Part Number : `90012KWB600`
15	BOLT SOCKET KNOCK 5MM Part Number : `90083KVB900`
16	NUT,TAPPET ADJUST Part Number : `90206001000`
