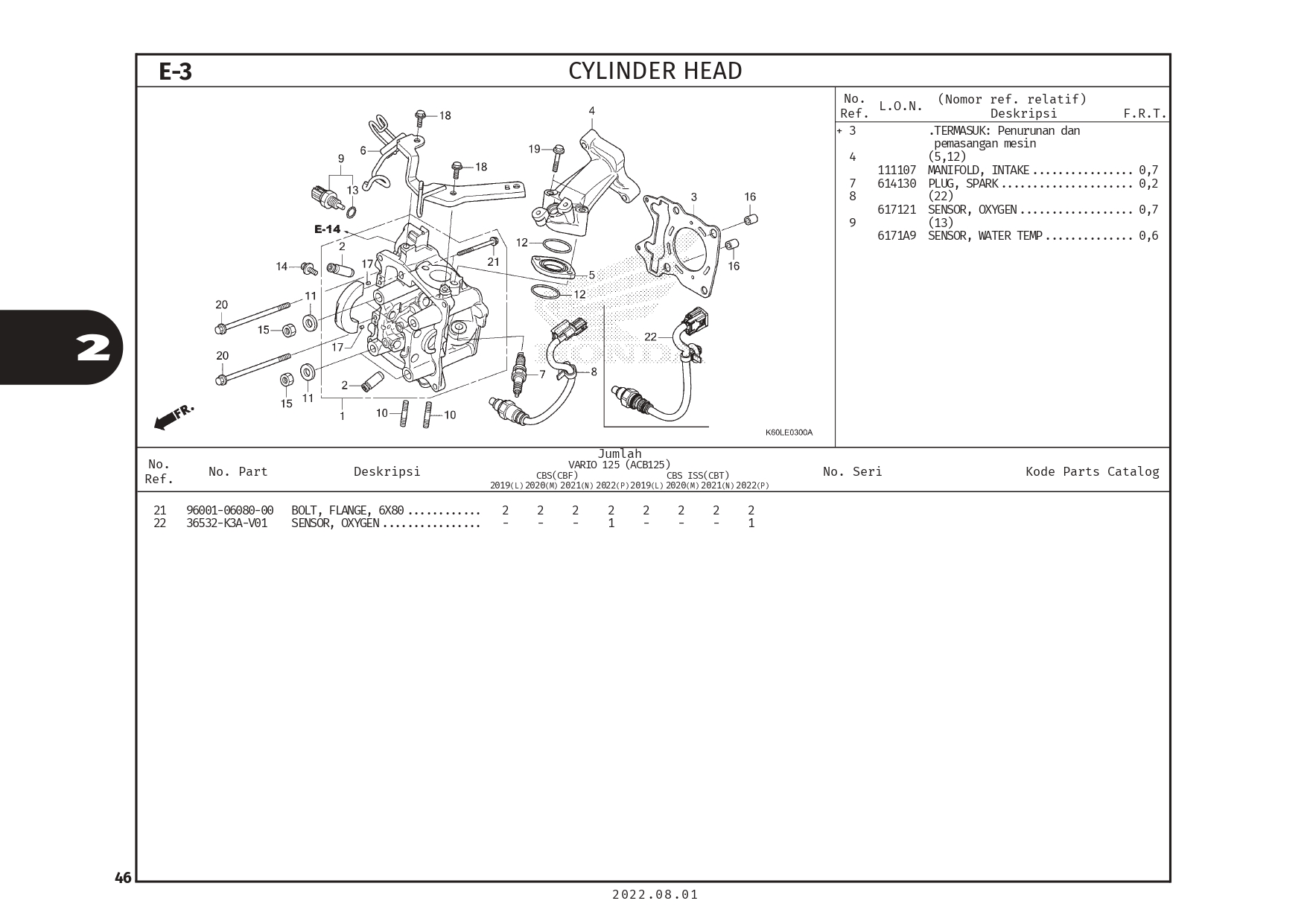

E-3 Cylinder Head – Katalog Honda Vario 125 K2V

#	Informasi Produk	Visual
1	HEAD ASSY. Part Number : `12010K66V00`
2	GUIDE,VALVE (OSZ) Part Number : `12204KWNP00`
3	GASKET,CYLINDER HEAD Part Number : `12251K12901`
3	GASKET,CYLINDER HEAD Part Number : `12251K77V01`
3	GASKET,CYLINDER HEAD (OVER SIZE ) Part Number : `12252KWN900`
4	PIPE IN. Part Number : `17111K60B00`
5	INSULATOR INLET P ASSY Part Number : `17119KWN710`
6	STAY COMP,FUEL HOSE CLAMPER Part Number : `17533K60B60`
7	SPARK PLUG CPR9EA9 (NGK) Part Number : `31926KRM841`
7	SPARK PLUG U27EPR-9 (DS) Part Number : `31926KYT901`
7	Spark Plug U27EPR-N9 (DS) Part Number : `31919K25602`
7	Spark Plug MR9C-9N (NGK) Part Number : `31919K25601`
8	SENSOR,OXYGEN Part Number : `36532K60B61`
9	SENSOR ASSY., WATER TEMP Part Number : `37870KZR601`
10	BOLT, STUD, 7X17 Part Number : `90004KGF910`
11	WASHER,8MM Part Number : `90483KWN900`
12	O-RING,29X2 Part Number : `91301KRJ901`
13	O-RING, 9.5X1.9 Part Number : `91307PLC004`
14	BOLT WASHER 6X12 Part Number : `934040601200`
15	NUT HEX 8MM Part Number : `9403008280`
16	DOWEL,PIN,10X16 Part Number : `9430110160`
17	PIN DOWEL,3X5 Part Number : `9430303050`
18	BOLT FLANGE 6X14 Part Number : `957010601400`
19	BOLT FLANGE 6X40 Part Number : `957010604000`
20	BOLT FLANGE 6X95 Part Number : `957010609500`
