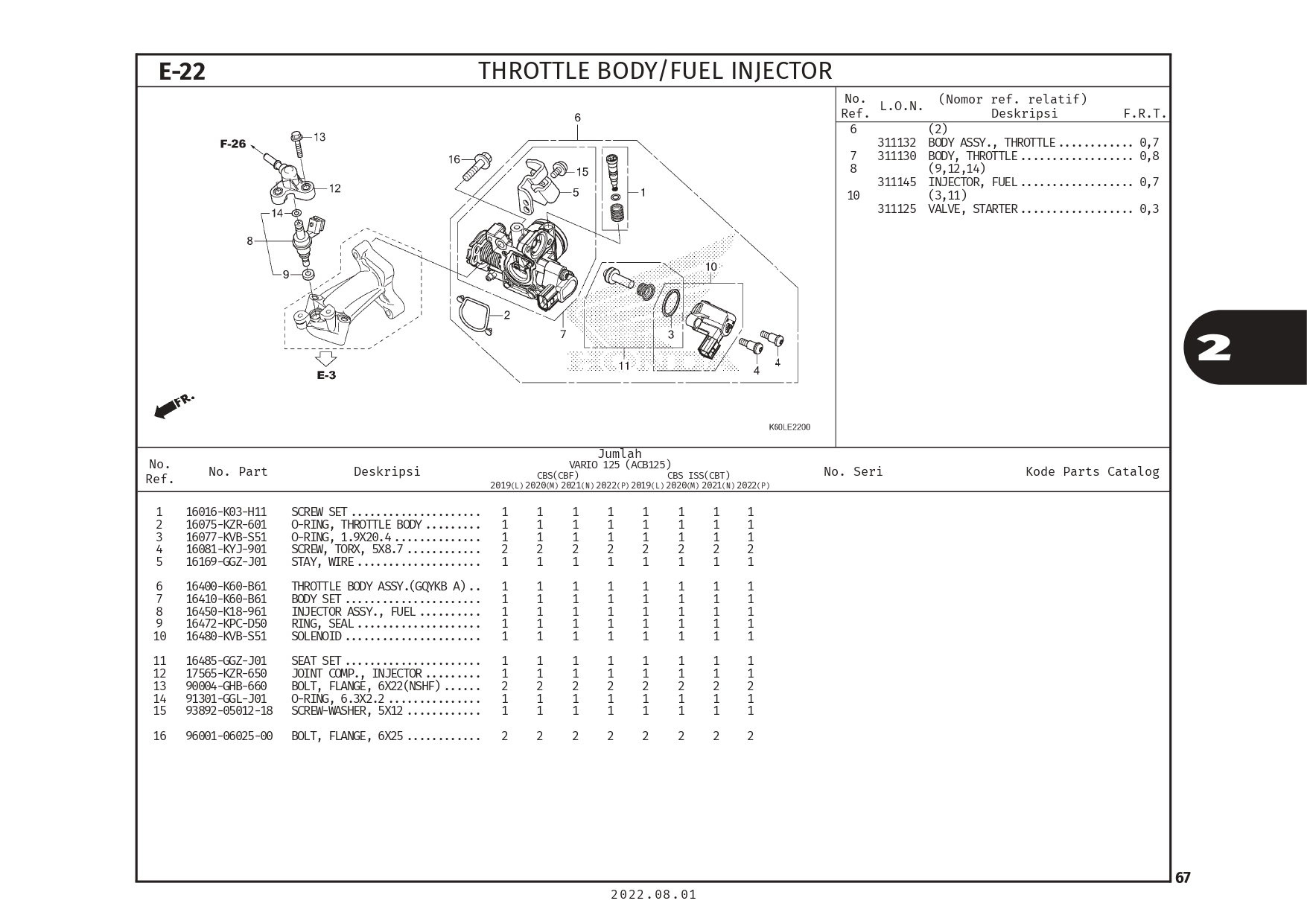

E-22 Throttle Body Fuel Injector – Katalog Suku Cadang Honda Vario 125 K2V

#	Informasi Produk	Visual
1	SCREW SET Part Number : `16016K03H11`
2	O-RING THROTTLE BODY Part Number : `16075KZR601`
3	O-RING 20,4X1,9 Part Number : `16077KVBS51`
4	SCREW,TORX 5X8.7 Part Number : `16081KYJ901`
5	STAY WIRE Part Number : `16169GGZJ01`
6	THROTTLEBODY ASSY Part Number : `16400K60B61`
6	THROTTLEBODY ASSY Part Number : `16400K60B01`
7	BODY SET Part Number : `16410K60B61`
7	BODY SET Part Number : `16410K60B01`
8	INJECTOR ASSY,FUEL Part Number : `16450K18961`
9	RING, SEAL Part Number : `16472KPCD50`
10	SOLENOID SET Part Number : `16480KVBS51`
11	SEAT SET Part Number : `16485GGZJ01`
12	JOINT COMP INJECTOR Part Number : `17565KZR650`
13	BOLT,FLANGE,NSHF,6X22 Part Number : `90004GHB660`
14	O-RING, 6.3X2.2 Part Number : `91301GGLJ01`
15	SCREW WASHER 5X12 Part Number : `938920501218`
16	BOLT FLANGE 6X25 Part Number : `960010602500`
