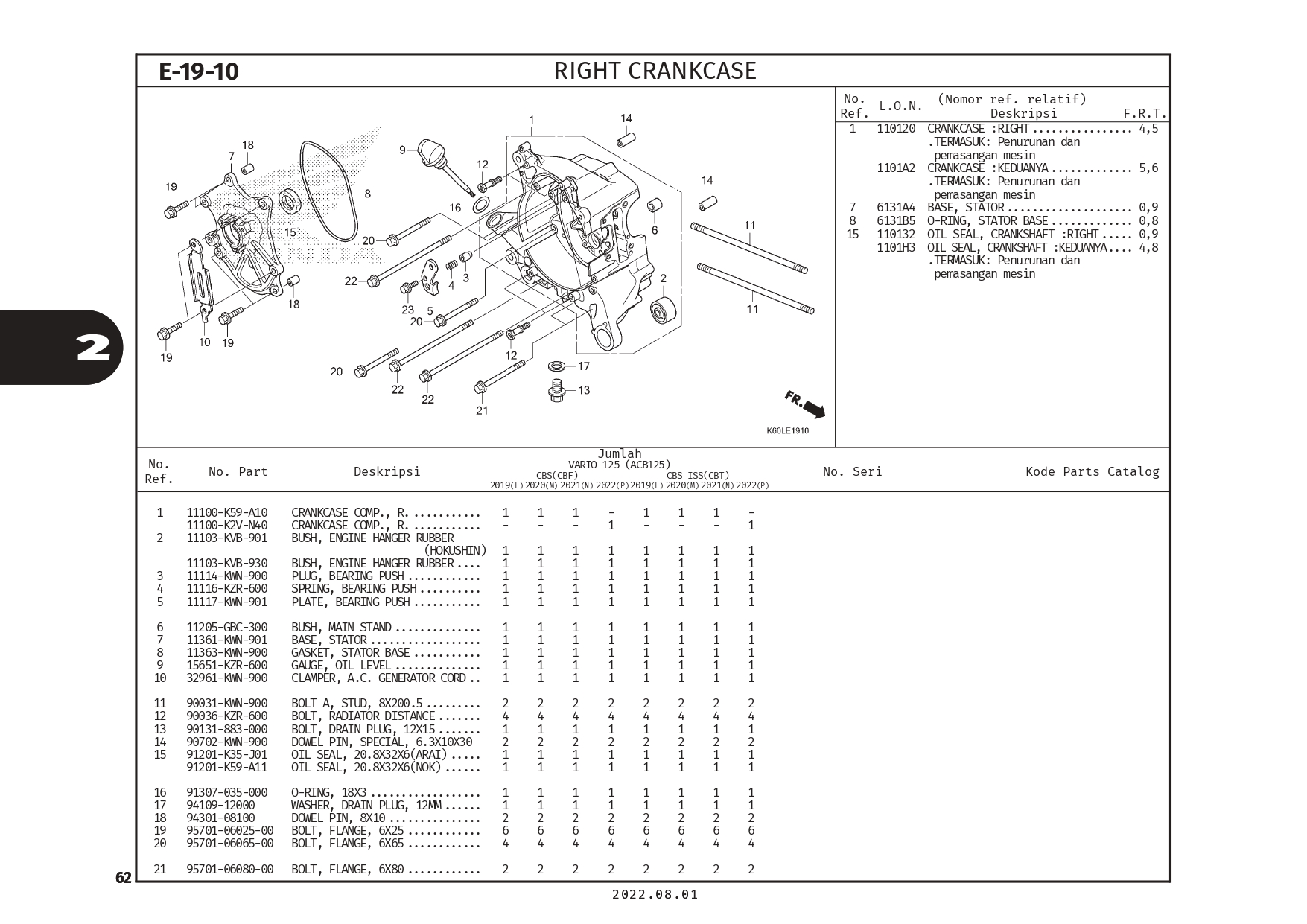

E-19-10 Right Crankcase – Katalog Suku Cadang Honda Vario 125 K2V

#	Informasi Produk	Visual
1	CRANK CASE COMP,RIGHT Part Number : `11100K2VN40`
2	RUB.BUSH,ENG.HANGER Part Number : `11103KVB930`
2	RUB.BUSH,ENG.HANGER Part Number : `11103K0JN21`
3	PLUG,BRG PUSH Part Number : `11114KWN900`
4	SPRING, BEARING PUSH Part Number : `11116KZR600`
5	PLATE,BRG PUSH Part Number : `11117KWN901`
6	BUSH M STAND Part Number : `11205GBC300`
7	BASE, STATOR Part Number : `11361KWN901`
8	GASKET,STATOR BASE Part Number : `11363KWN900`
9	GAUGE, OIL LEVEL Part Number : `15651KZR600`
10	CLAMP,ACG CORD Part Number : `32961KWN900`
11	BOLT A STUD 8X2005 Part Number : `90031KWN900`
12	BOLT, RADIATOR DISTANCE Part Number : `90036KZR600`
13	BOLT DRAIN PLUG 12X15 Part Number : `90131883000`
14	DOWEL PIN,SPL 6.3X10X30 Part Number : `90702KWN900`
15	OIL SEAL 20.8X32X6 Part Number : `91201K35J01`
15	OIL SEAL, 20.8X32X6 Part Number : `91201K59A11`
16	O-RING, 18X3 Part Number : `91307035000`
17	WASHER, DRAIN PLUG, 12MM Part Number : `9410912000`
18	PIN DOWEL 8X10 Part Number : `9430108100`
19	BOLT FLANGE 6X25 Part Number : `957010602500`
20	BOLT FLANGE 6X65 Part Number : `957010606500`
21	BOLT FLANGE 6X80 Part Number : `957010608000`
22	BOLT FLANGE 6X130 Part Number : `957010613000`
23	BOLT FLANGE SH 6X16 Part Number : `960010601600`
