E-13 Left Side Cover – Katalog Suku Cadang Honda Vario 125 K2V

#	Informasi Produk	Visual
1	COVER,L SIDE Part Number : `11341K66V10`
2	GASKET, L. COVER Part Number : `11395KZR600`
3	DUCT,L COVER Part Number : `19641K66V00`
4	CAP,L COVER Part Number : `19642K66V00`
5	SEAL,BELT COVER DUCT Part Number : `19645KWN900`
6	SEAL,DUCT Part Number : `19748K66V00`
7	BOLT, SOCKET, 6X18 Part Number : `90001KWR000`
8	CIRCLIP IN.32 Part Number : `90652KVB900`
9	Brg Comp Drive Shaft Part Number : `91005KVBN50`
9	Brg Comp Drive Shaft Part Number : `91010K1AN80`
10	SCREW, TAPPING, 4X10 Part Number : `9390334220`

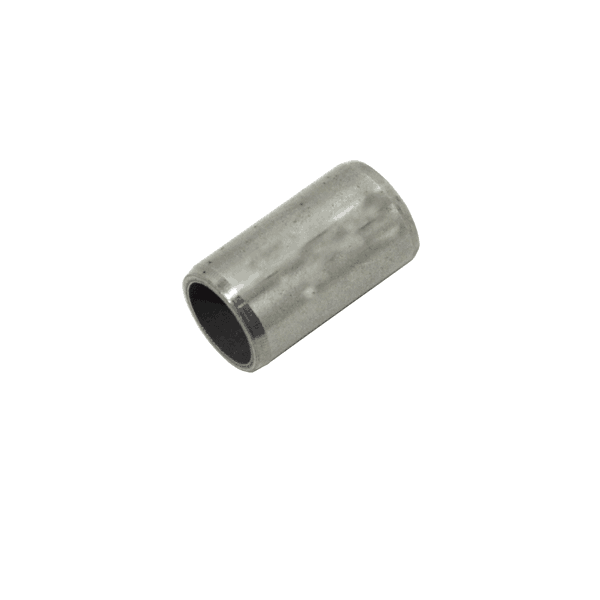

11	PIN DOWEL 8X14 Part Number : `9430108140`
12	BOLT FLANGE 6X28 Part Number : `960010602800`
13	BOLT FLANGE 6X40 Part Number : `960010604000`
14	BOLT FLANGE 6X65 Part Number : `960010606500`
