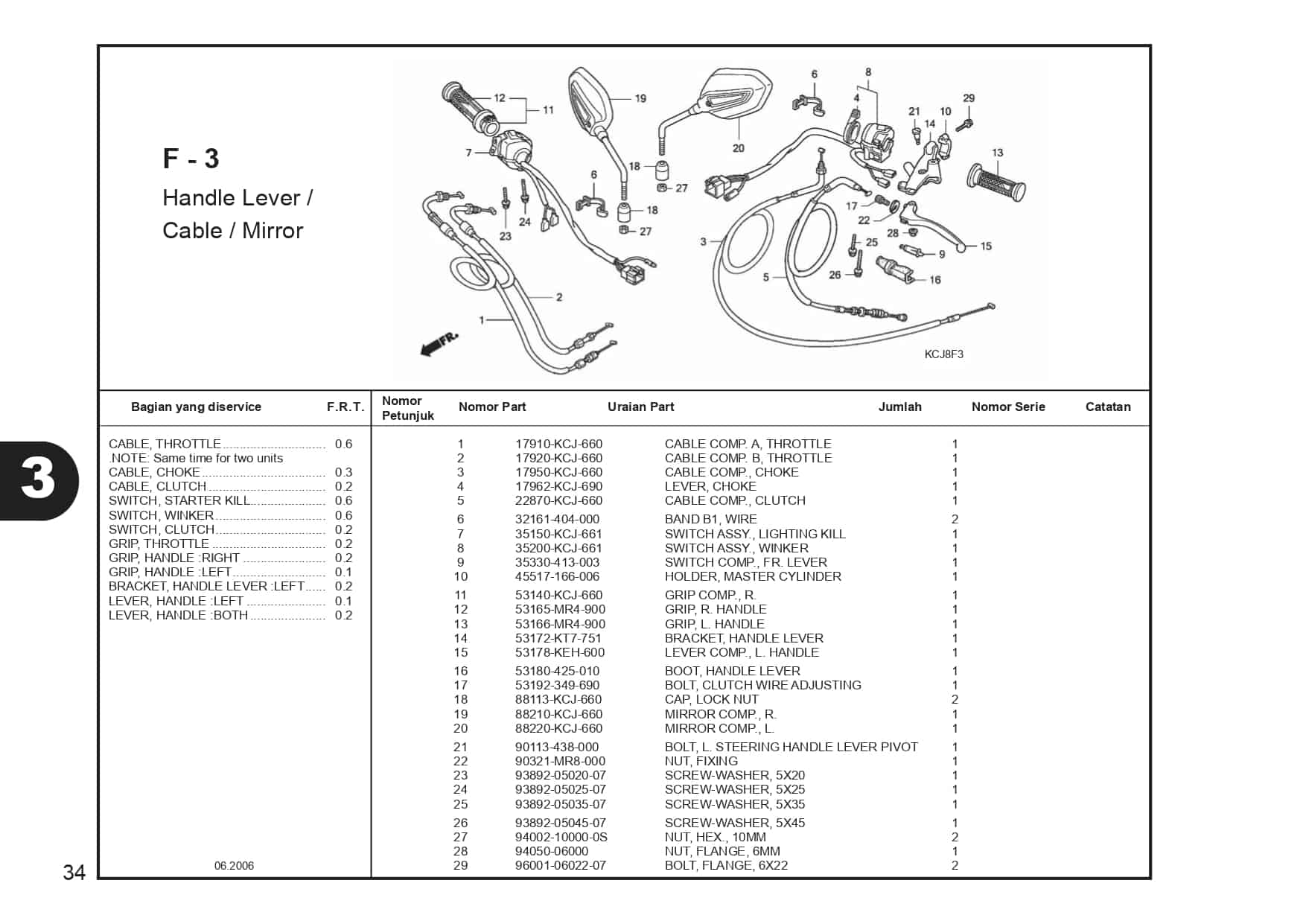

F – 3 Handle Lever / Cable / Mirror – Katalog Suku Cadang Honda Tiger Revo KCJ

#	Informasi Produk	Visual
1	CABLE COMP A, THROT Part Number : `17910KCJ660`
2	CABLE COMP B, THROT Part Number : `17920KCJ660`
3	CABLE COMP,CHOKE Part Number : `17950KCJ660`
4	LEVER CHOKE Part Number : `17962KCJ690`
5	CABLE COMP CLUTCH Part Number : `22870KCJ660`
5	CABLE COMP,CLUTCH Part Number : `22870KC5000`
5	CABLE COMP,CLUTCH Part Number : `22870KCJ650`
6	BAND B1 WIRE /K5 Part Number : `32161404000`
7	SWITCH ASSY START Part Number : `35150KCJ661`
8	SWITCH ASSY WINKER Part Number : `35200KCJ661`
9	SWITCH FR LEVER Part Number : `35330413003`
10	HOLDER MASTER CYL Part Number : `45517166006`
11	GRIP COMP R THROTTLE Part Number : `53140KCJ660`
12	GRIP R HDL Part Number : `53165MR4900`
13	GRIP L HDL Part Number : `53166MR4900`
14	BRACKET, HANDLE LEVER Part Number : `53172KT7751`
16	BOOT HDL LEVER Part Number : `53180425010`
17	BOLT WIRE ADJ Part Number : `53192349690`
18	CAP, LOCK NUT Part Number : `88113KCJ660`
19	MIRROR COMP R Part Number : `88210KCJ660`
20	MIRROR COMP L Part Number : `88220KCJ660`
21	BOLT L HDL Part Number : `90113438000`
22	NUT,FIXING Part Number : `90321MR8000`
23	SCREW,WASHER 5X20 Part Number : `938920502007`
24	SCREW,WASHER 5X25 Part Number : `938920502507`
25	SCREW WASHER 5X35 Part Number : `938920503507`
26	SCREW WASHER 5X45 Part Number : `938920504507`
27	NUT HEX 10MM Part Number : `94002100000S`
28	NUT,FLANGE 6MM Part Number : `9405006000`
29	BOLT FLANGE 6X22 Part Number : `960010602207`
