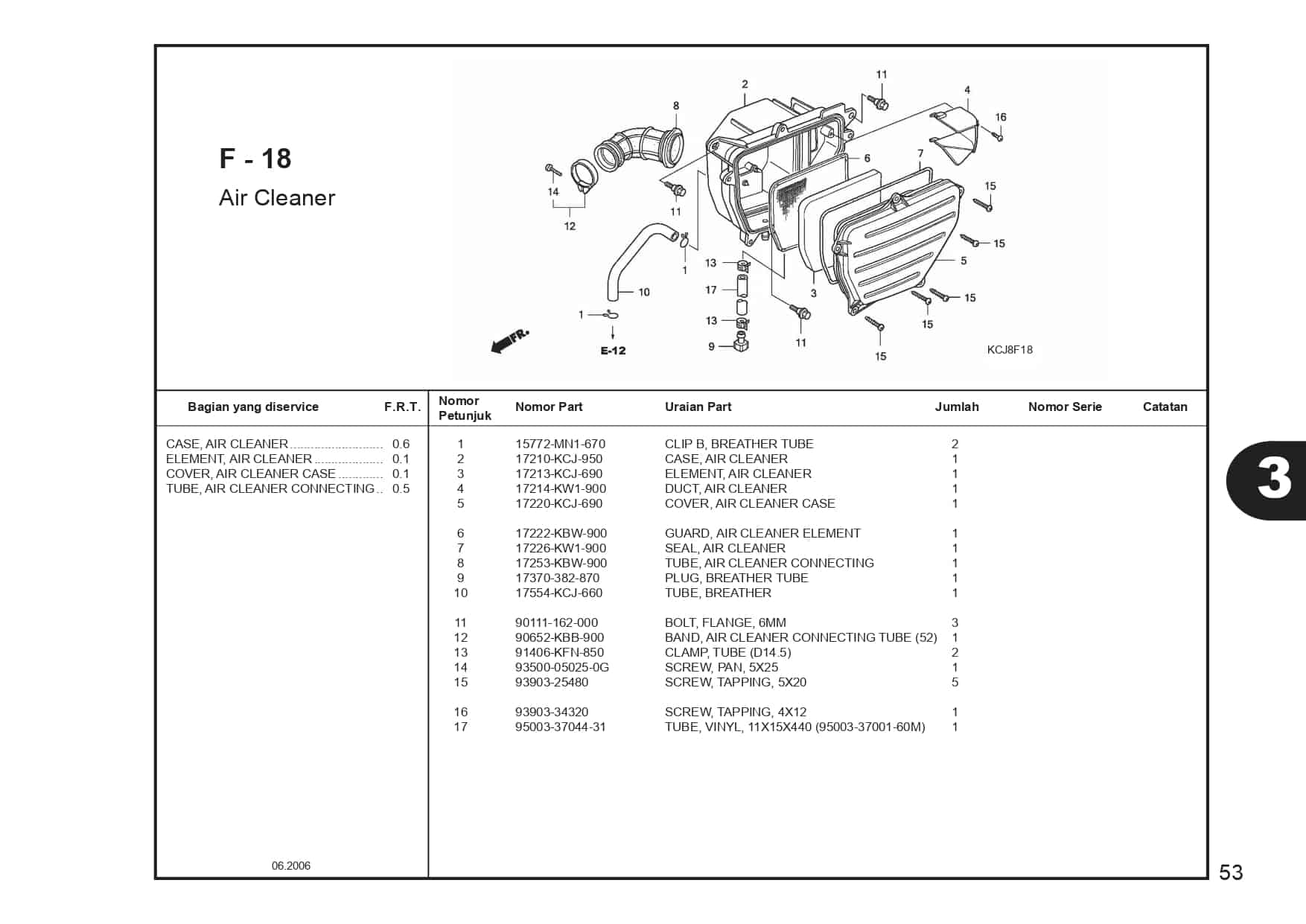

F – 18 Air Cleaner – Katalog Suku Cadang Honda Tiger Revo KCJ

#	Informasi Produk	Visual
1	CLIP B BREATHER TUBE Part Number : `15772MN1670`
2	CASE AIR/C Part Number : `17210KCJ950`
3	ELEMENT CLEANER Part Number : `17213KCJ690`
4	DUCT A/C Part Number : `17214KW1900`
5	COVER A/C Part Number : `17220KCJ690`
6	GUARD AIR CLEANER Part Number : `17222KBW900`
7	SEAL A/C Part Number : `17226KW1900`
8	TUBE A/C Part Number : `17253KBW900`
9	PLUG BREATHER TUBE Part Number : `17370382870`
10	TUBE, BREATHER Part Number : `17554KCJ950`
11	BOLT FLANGE 6MM Part Number : `90111162000`
12	BAND A/C Part Number : `90652KBB900`
13	CLAMP D 14.5 TUBE Part Number : `91406KFN850`
14	SCREW PAN 5X25 Part Number : `93500050250G`
15	SCREW,TAPP 5X2 Part Number : `9390325480`
16	SCREW TAPPING 4X12 Part Number : `9390334320`
17	V TUBE 11X15X420 Part Number : `950033704431`
