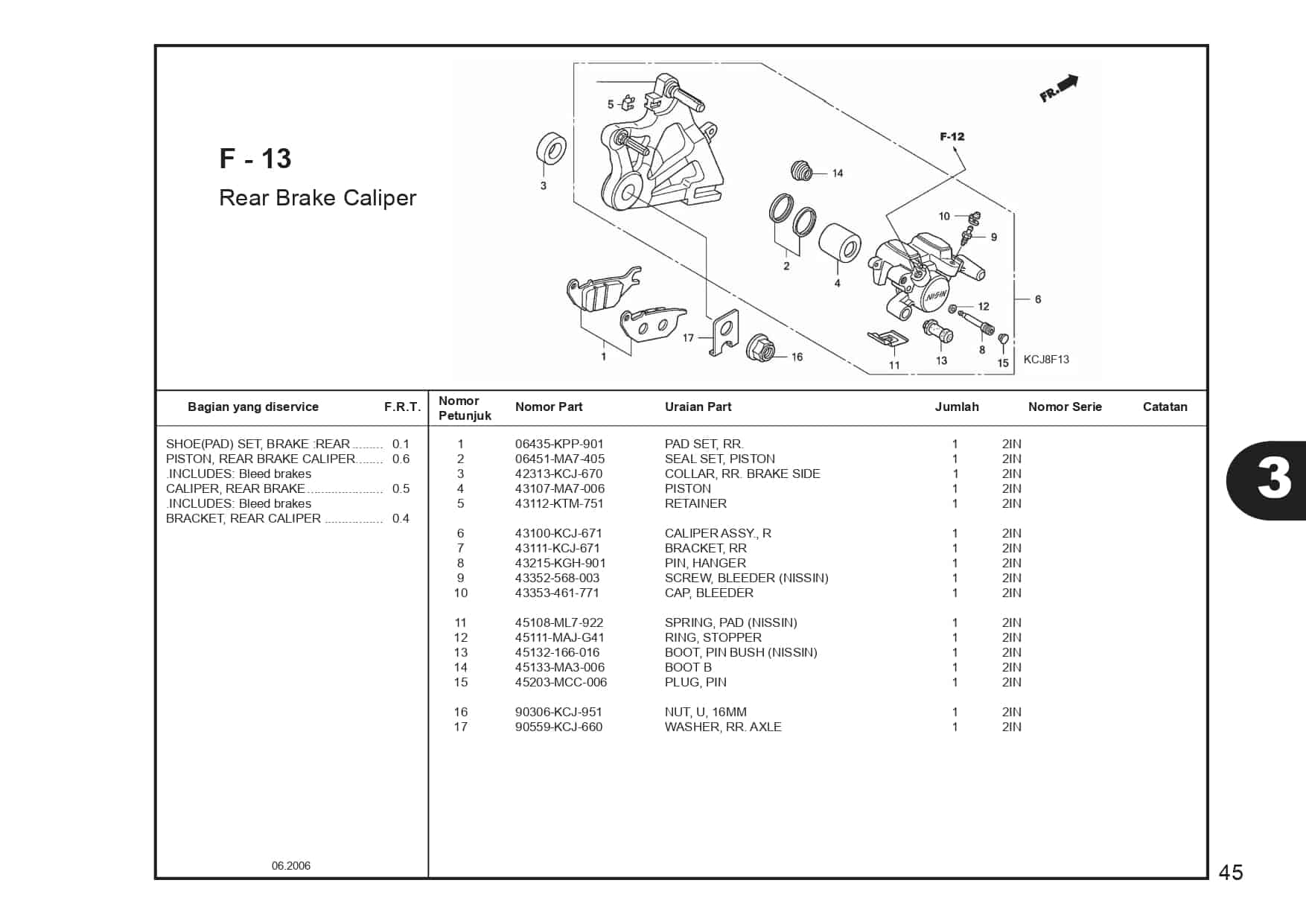

F – 13 Rear Brake Caliper – Katalog Suku Cadang Honda Tiger Revo KCJ

#	Informasi Produk	Visual
1	PAD SET, RR. Part Number : `06435KPP901`
2	SEAL SET, PISTON Part Number : `06451MA7405`
3	COLLAR, RR. BRAKE SIDE Part Number : `42313KCJ670`
4	PISTON Part Number : `43107MA7006`
5	RETAINER Part Number : `43112KTM751`
6	CALIPER ASSY., R Part Number : `43100KCJ671`
7	BRACKET, RR Part Number : `43111KCJ671`
8	PIN, HANGER Part Number : `43215KGH901`
9	SCREW, BLEEDER (NISSIN) Part Number : `43352568003`
10	CAP, BLEEDER Part Number : `43353461771`
11	SPRING, PAD (NISSIN) Part Number : `45108ML7922`
12	RING, STOPPER Part Number : `45111MAJG41`
13	BOOT, PIN BUSH (NISSIN) Part Number : `45132166016`
14	BOOT B Part Number : `45133MA3006`
15	PLUG, PIN Part Number : `45203MCC006`
16	NUT, U, 16MM Part Number : `90306KCJ951`
17	WASHER, RR. AXLE Part Number : `90559KCJ660`
