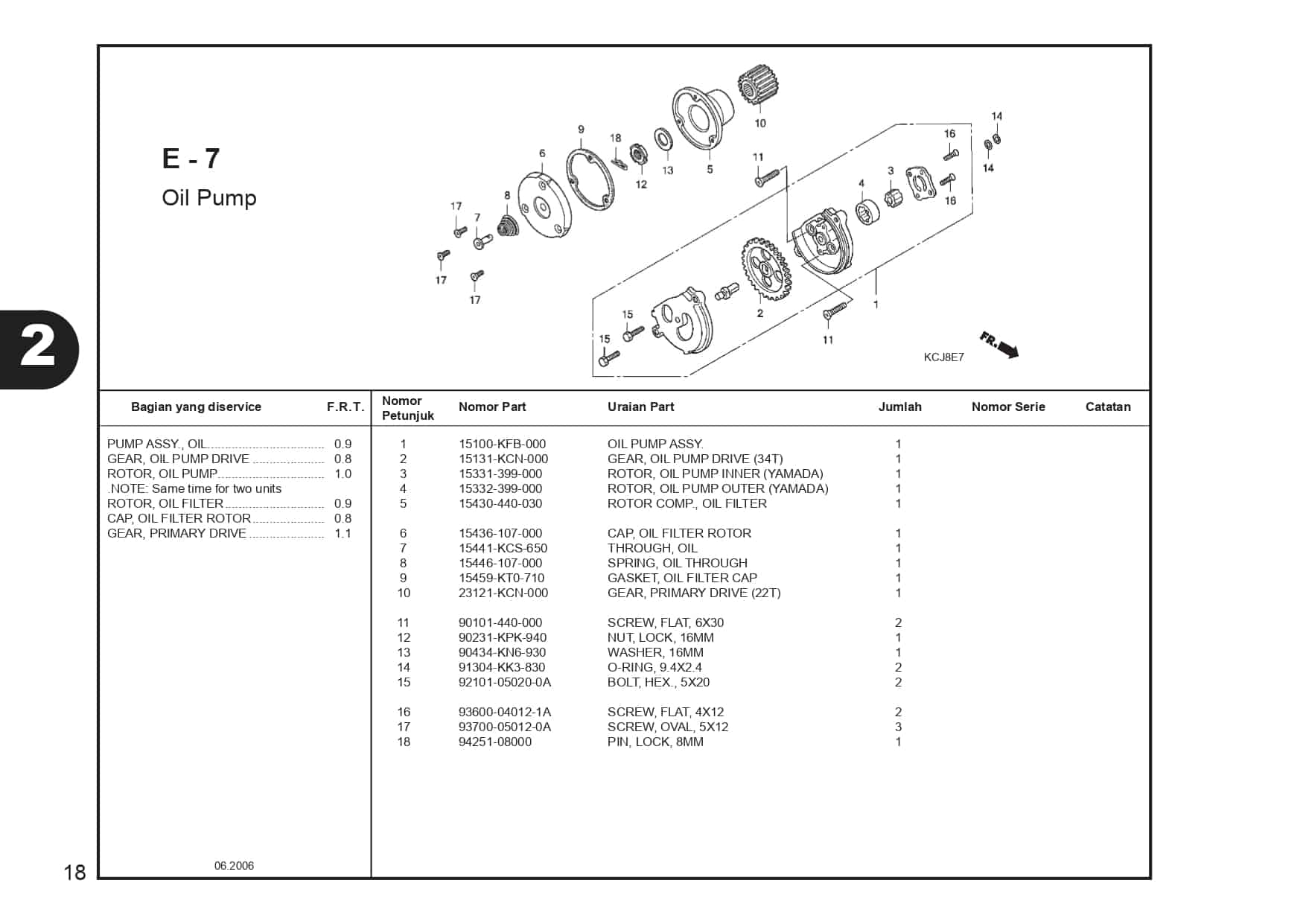

E-7 Oil Pump – Katalog Suku Cadang Honda Tiger Revo KCJ

#	Informasi Produk	Visual
1	OIL PUMP ASSY. Part Number : `15100KFB001`
3	ROTOR,OIL PUMP IN Part Number : `15331399000`
4	ROTOR,OIL PUMPOUT Part Number : `15332399000`
5	ROTOR OIL FILTER Part Number : `15430440030`
6	CAP,ROTOR FILTER Part Number : `15436107000`
7	OIL,THROUGH Part Number : `15441KCS650`
8	SPRING OIL.GUIDE Part Number : `15446107000`
9	GASKET, OIL FILTER CAP Part Number : `15459107000`
10	GEAR,PRIMARY DRV Part Number : `23121KCN000`
11	SCREW, FLAT, 6X30 Part Number : `90101440000`
13	WASHER,16MM Part Number : `90434KN6930`
14	O-RING,9.4X2.4 Part Number : `91304KK3830`
15	BOLT HEX 5X20 Part Number : `92101050200A`
16	SCREW, FLAT, 4X12 Part Number : `93600040121A`
17	SCREW OVAL 5X12 Part Number : `93700050120A`
18	PIN LOCK 8MM Part Number : `9425108000`
