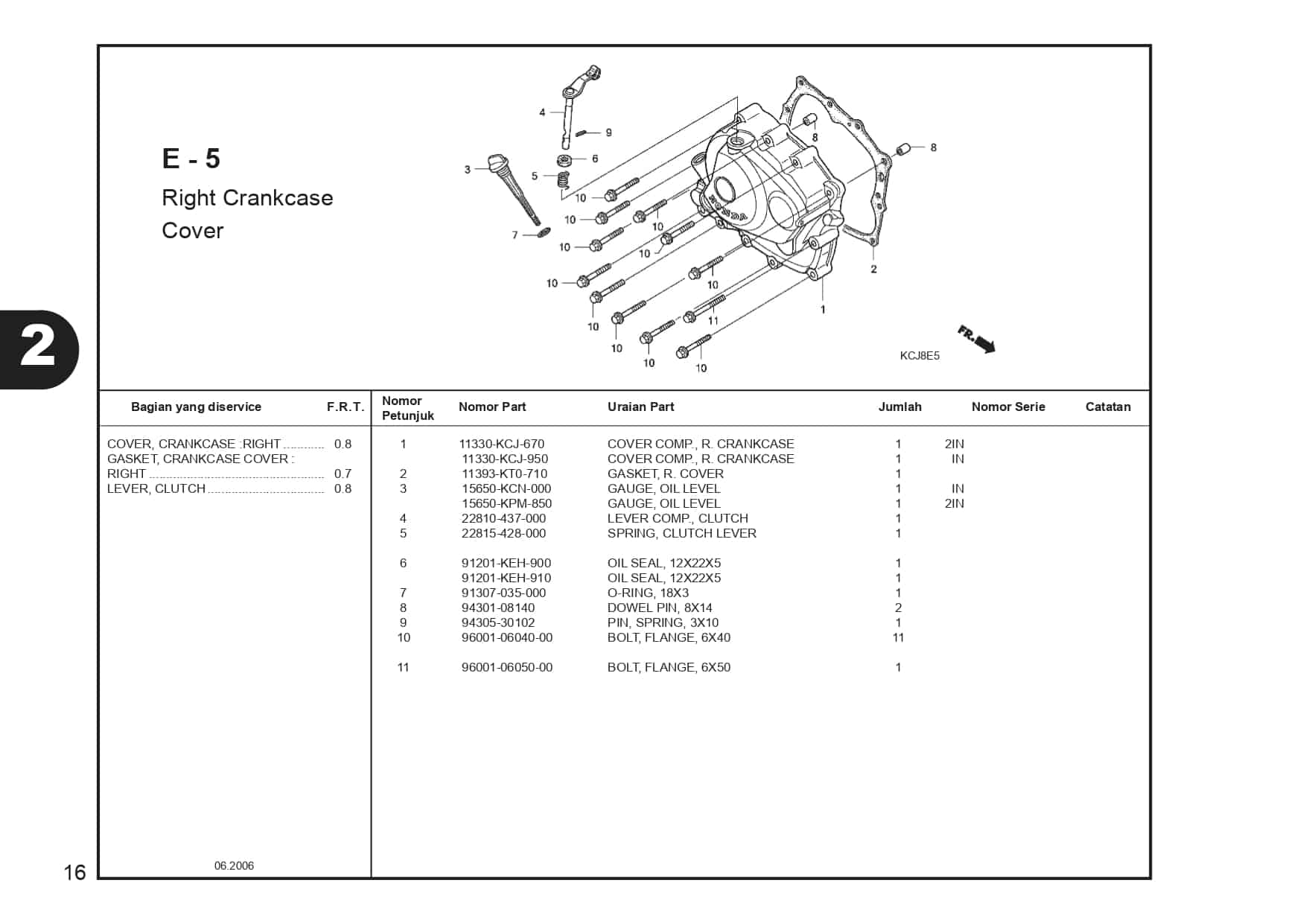

E-5 Right crankcase cover – Katalog Suku Cadang Honda Tiger Revo KCJ

#	Informasi Produk	Visual
2	GASKET, R. COVER Part Number : `11393KT0711`
3	GAUGE OIL LEVEL Part Number : `15650KCN000`
3	GAUGE OIL LEVEL Part Number : `15650KPM850`
4	22810437001 Part Number : `22810437000`
5	SPRING, CLUTCH LEVER Part Number : `22815428000`
6	OIL SEAL, 12X22X5 Part Number : `91201148004`
6	OIL SEAL, 12X22X5 Part Number : `91201148003`
7	O-RING, 18X3 Part Number : `91307035000`

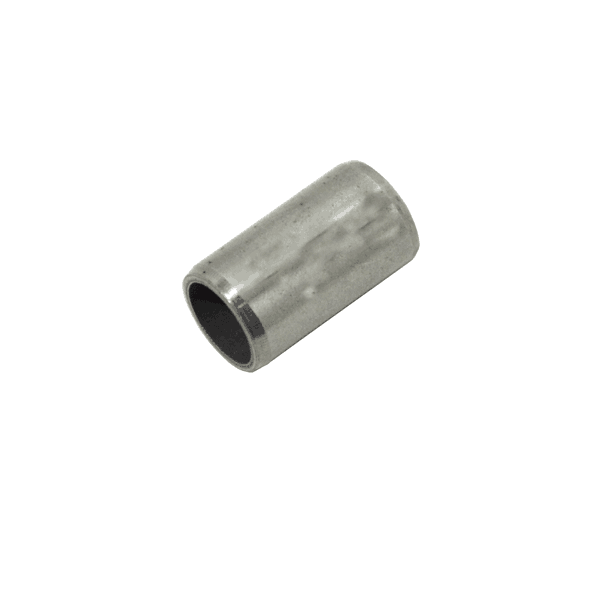

8	PIN DOWEL 8X14 Part Number : `9430108140`
9	PIN SPRING 3X10 Part Number : `9430530102`
10	BOLT FLANGE 6X40 Part Number : `960010604000`
11	BOLT FLANGE 6X50 Part Number : `960010605000`
