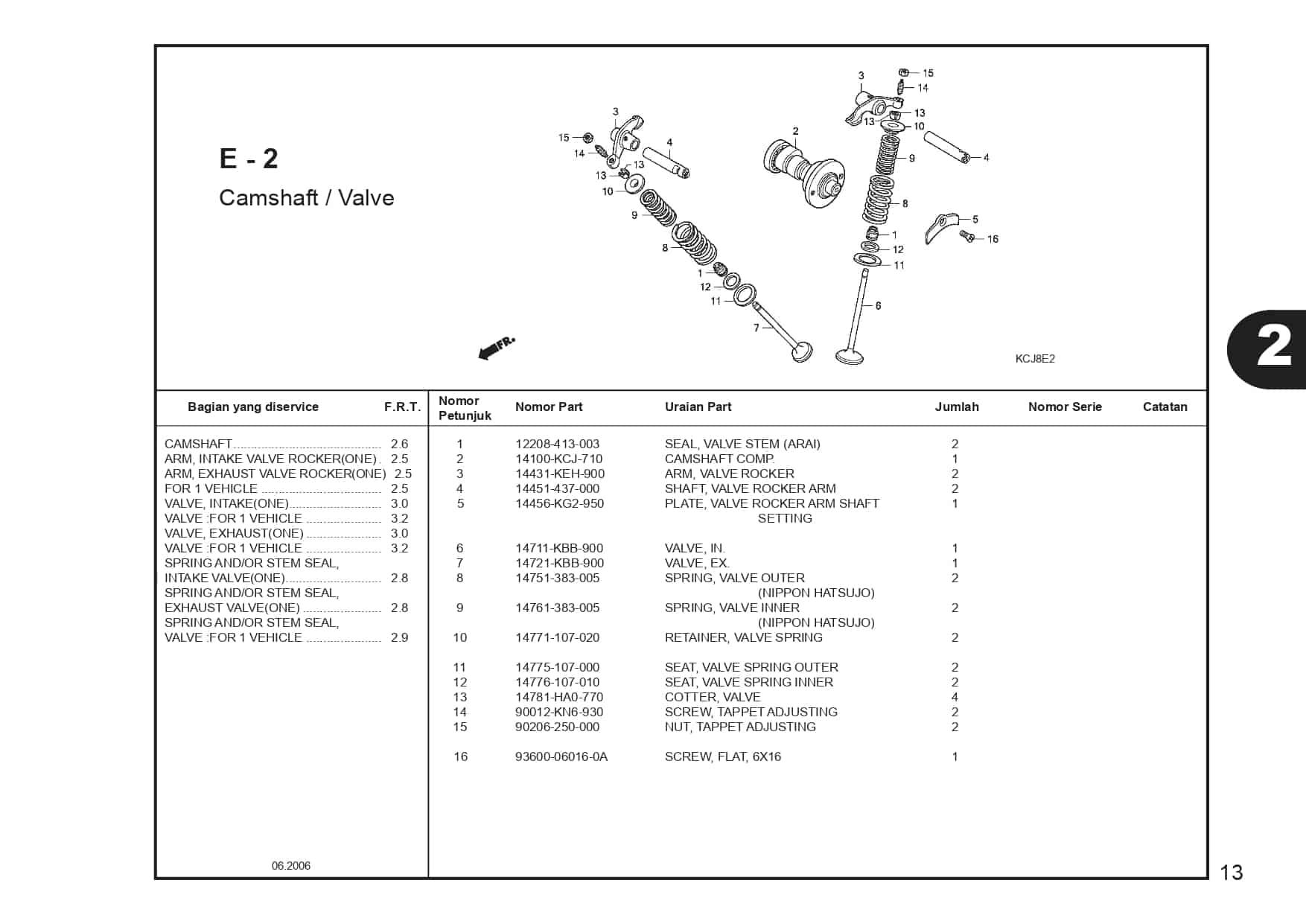

E-2 Camshaft Valve – Katalog Honda Tiger Revo KCJ

#	Informasi Produk	Visual
1	SEAL,VALVE STEM Part Number : `12208413003`
2	CAMSHAFT COMP. Part Number : `14100KCJ710`
3	ARM,VALVE ROCKER Part Number : `14431KEH900`
4	SHAFT,ROCKER ARM Part Number : `14451437000`
5	PLATE VLV ROCKER ARM SHFT Part Number : `14456KG2950`
6	VALVE,INLET Part Number : `14711KBB900`
7	VALVE,EXHAUST Part Number : `14721KBB900`
8	SPRING,VALVE OUT LBL Part Number : `14751383005`
9	SPRING,VALVE IN LBL Part Number : `14761383005`
10	RETAINER Part Number : `14771107020`
11	SEAT,VALVE OUT Part Number : `14775107000`
12	SEAT,VALVE IN Part Number : `14776107010`
13	COTTER,VALVE Part Number : `14781HA0770`
15	NUT, TAPPET ADJUSTING Part Number : `90206250000`
16	SCREW FLAT 6X16 Part Number : `93600060160A`
