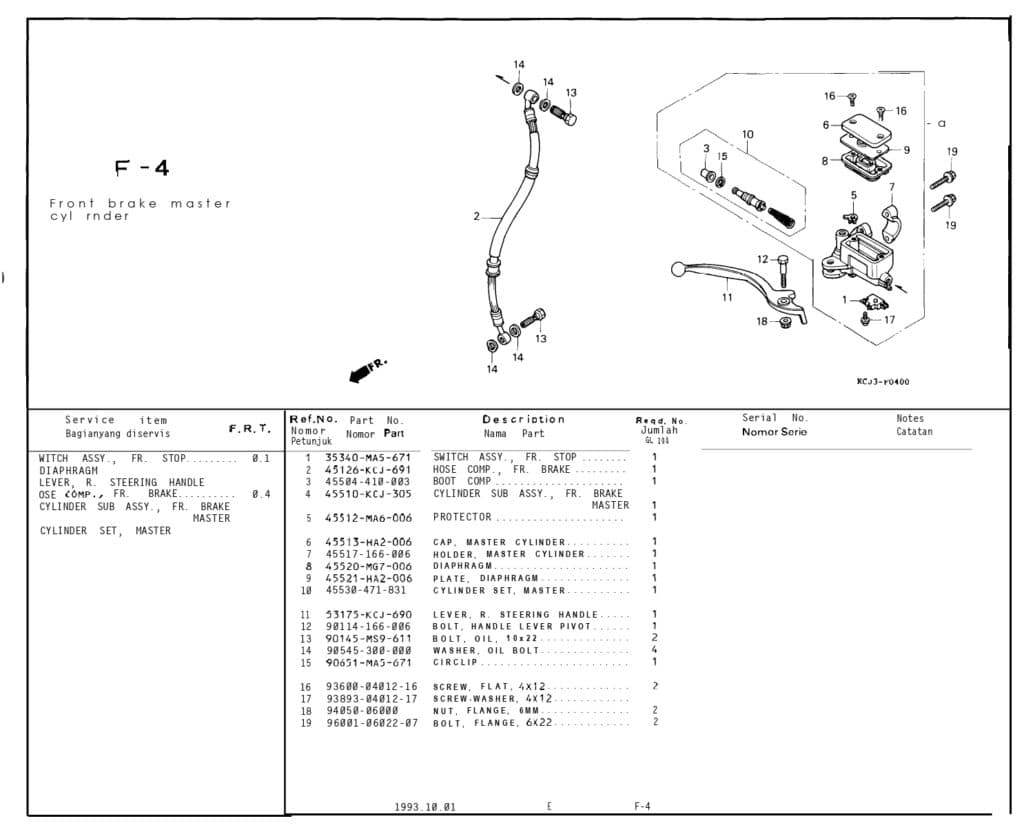

F-4 Front Brake Master Cylinder – Katalog Suku Cadang Honda Tiger 2000

#	Informasi Produk	Visual
1	SW,ASSY FR.STOP Part Number : `35340MA5671`
2	HOSE COMP FR BRAKE Part Number : `45126KCJ881`
3	BOOT COMP Part Number : `45504410003`
4	SUB ASSY,FR B M/C Part Number : `45510KCJ305`
5	PROTECTOR Part Number : `45512MA6006`
6	CAP,MASTER CYL Part Number : `45513HA2006`
7	HOLDER MASTER CYL Part Number : `45517166006`
8	DIAPHRAGM Part Number : `45520MG7006`
9	PLATE,DIAPHRAGM Part Number : `45521HA2006`
10	CYLINDER SET,MAS Part Number : `45530471831`
11	LEVER R HDL Part Number : `53175KCJ690`
12	BOLT, HANDLE LEVER PIVOT Part Number : `90114166006`
13	BOLT OIL 10X22 Part Number : `90145MS9612`
14	WASHER OIL BOLT Part Number : `90545300000`
15	CIRCLIP Part Number : `90651MA5671`
16	SCREW, FLAT, 4X12 Part Number : `93600040121G`
17	SCREW WASHER 4X12 Part Number : `938930401217`
18	NUT,FLANGE 6MM Part Number : `9405006000`
19	BOLT FLANGE 6X22 Part Number : `960010602207`
