F-26 Battery – Katalog Suku Cadang Honda Tiger 2000

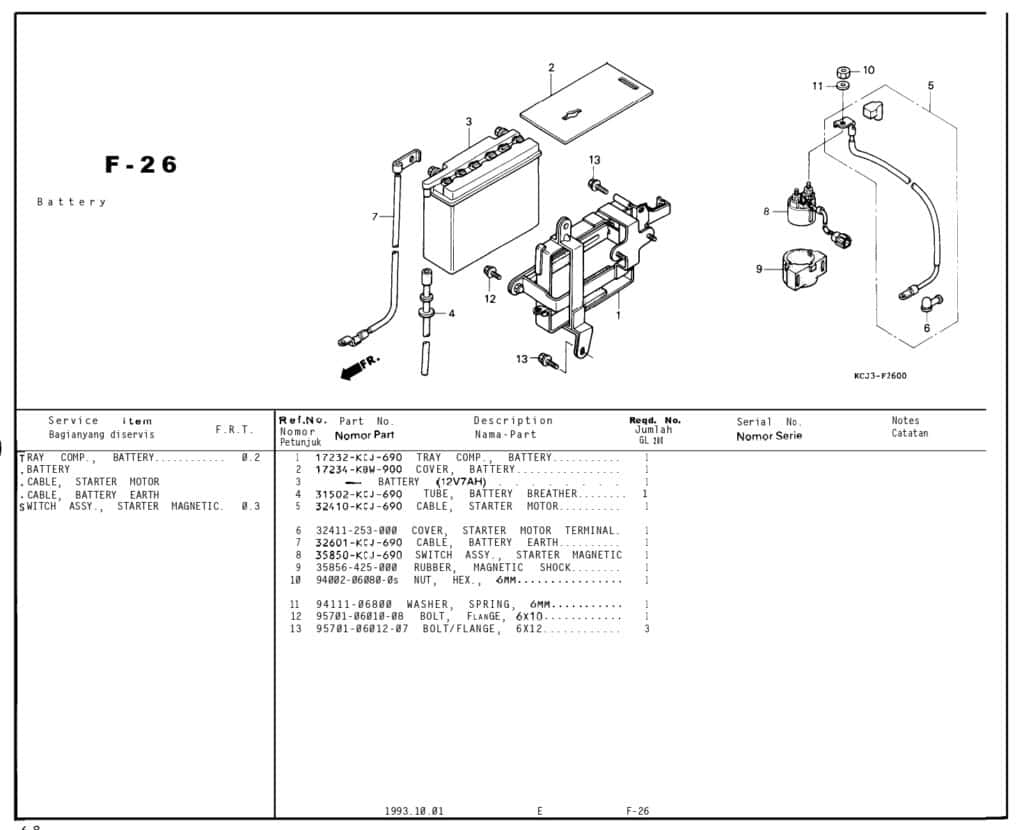

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 TRAY COMP,BATTERY 17232KCJ690 -
2 COVER BATTERY 17234KBW900 -
3 BATTERY GM7B-4B 31500KCJFM0 BATTERY GM7B-4B
4 31502KCJ690 31502KCJ690 -
5 CABLE STARTER MOTOR 32410KCJ690 -
6 COVER STARTING MOTOR 32411253000 COVER STARTING MOTOR
7 CABLEEARTH 32601KCJ690 -
8 SWITCH STARTER 35850KCJ690 SWITCH STARTER
9 RUBBER,SHOCK MAG 35856425000 RUBBER,SHOCK MAG
10 NUT,HEX 6MM 94002060800S -
11 WASHER,SPRING 6MM 9411106800 -
12 BOLT FLANGE 6X10 957010601008 BOLT FLANGE 6X10
13 BOLT FLANGE 6X12 957010601207 BOLT FLANGE 6X12
