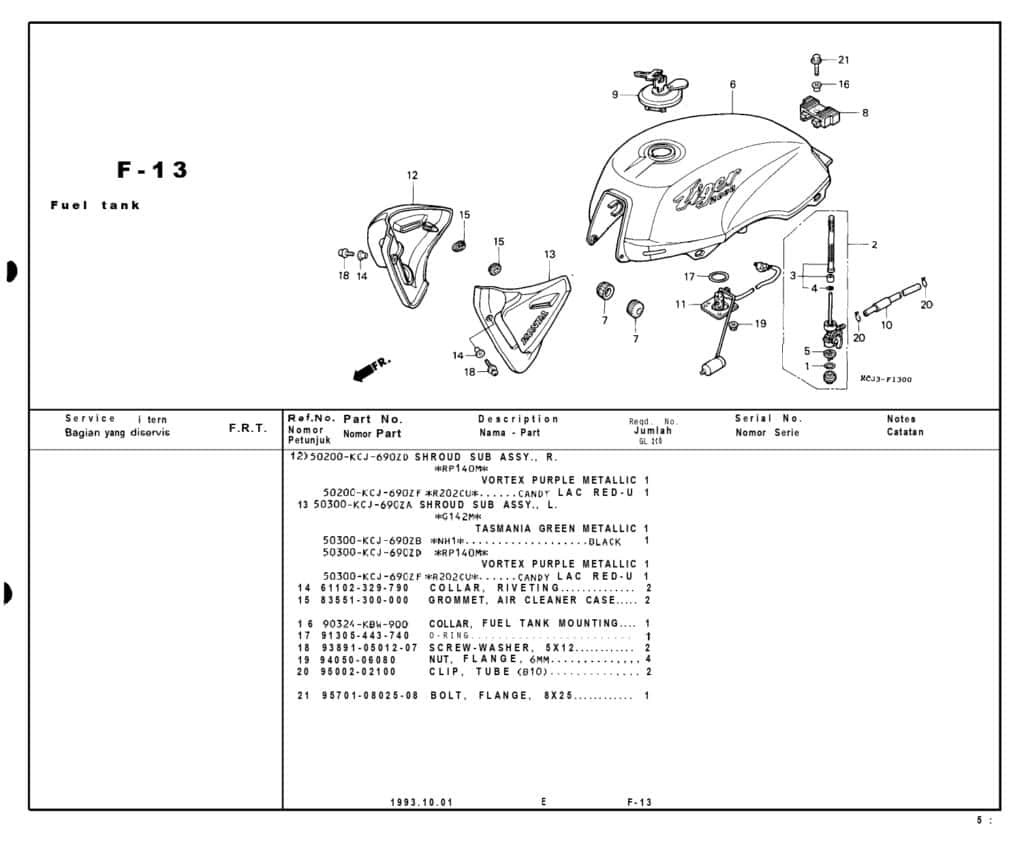

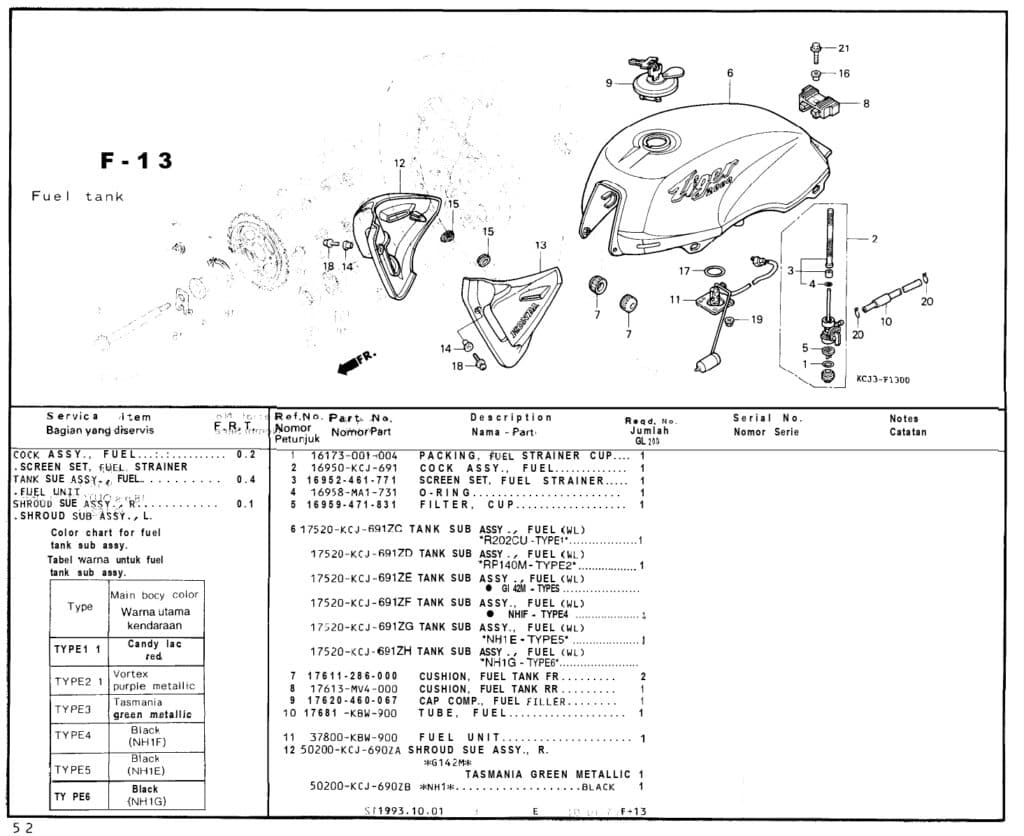

F-13 Fuel Tank – Katalog Suku Cadang Honda Tiger 2000
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
16173001004 |
16173001004 |
-
|
| 2 |
COCK ASSY,FUEL |
16950KCJ691 |
-
|
| 3 |
SCREEN SET, FUEL STRAINE |
16952461771 |
-
|
| 4 |
O-RING |
16958MA1731 |
|
| 5 |
FILTER,CUP |
16959471831 |
-
|
| 6 |
17520KCJ691ZC |
17520KCJ691ZC |
-
|
| 6 |
17520KCJ691ZD |
17520KCJ691ZD |
-
|
| 6 |
17520KCJ691ZE |
17520KCJ691ZE |
-
|
| 6 |
17520KCJ691ZF |
17520KCJ691ZF |
-
|
| 6 |
17520KCJ691ZG |
17520KCJ691ZG |
-
|
| 6 |
17520KCJ691ZH |
17520KCJ691ZH |
-
|
| 7 |
CUSHION FUEL TANK |
17611286000 |
|
| 8 |
CUSHION FUEL TANK RR |
17613MV4000 |
|
| 9 |
CAP FUEL FILLER |
17620460067 |
-
|
| 10 |
TUBE FUEL |
17681KBW900 |
-
|
| 11 |
FUEL UNIT |
37800KBW900 |
-
|
| 12 |
50200KCJ690ZA |
50200KCJ690ZA |
-
|
| 12 |
50200KCJ690ZB |
50200KCJ690ZB |
-
|
| 12 |
50200KCJ690ZD |
50200KCJ690ZD |
-
|
| 12 |
50200KCJ690ZF |
50200KCJ690ZF |
-
|
| 13 |
50300KCJ690ZA |
50300KCJ690ZA |
-
|
| 13 |
50300KCJ690ZEl |
50300KCJ690ZEl |
-
|
| 13 |
50300KCJ690ZD |
50300KCJ690ZD |
-
|
| 13 |
50300KCJ690ZF |
50300KCJ690ZF |
-
|
| 14 |
COLLAR RIVETTING |
61102329790 |
-
|
| 15 |
CASE GROMMET |
83551300000 |
|
| 16 |
COLLAR FUEL TANK |
90324KBW900 |
-
|
| 17 |
O-RING,39.5X5 |
91305443740 |
-
|
| 18 |
SCREW,WASHER 5X12 |
938910501207 |
-
|
| 19 |
NUT,FLANGE 6MM |
9405006080 |
|
| 20 |
CLIP B10,TUBE |
9500202100 |
|
| 21 |
BOLT FLANGE 8X25 |
957010802508 |
|
