F-1 Headlight – Katalog Suku Cadang Honda Tiger 2000

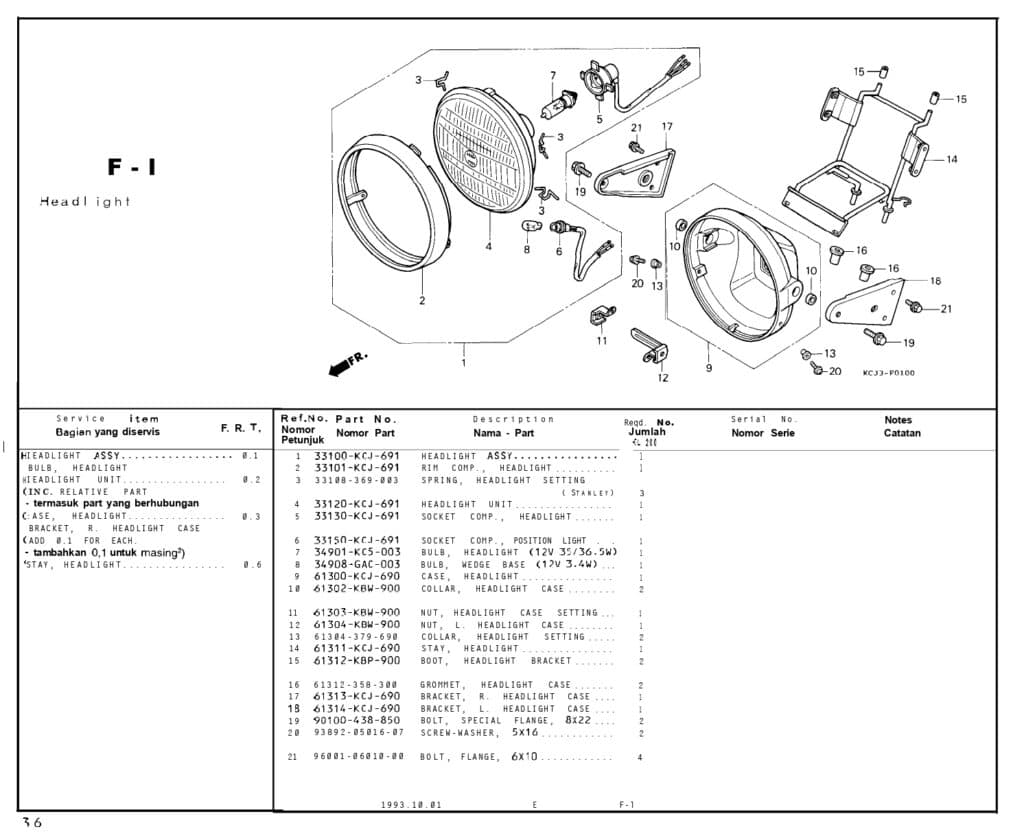

Gambar Bagian

Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 HEADLIGHT ASSY 33100KCJ691 -
2 RIM HEADLIGHT 33101KCJ691 -
3 SPRING UNIT HOLD 33108369003 -
4 HEADLIGHT UNIT 33120KCJ691 -
5 SOCKET HEADLIGHT 33130KCJ691 SOCKET HEADLIGHT
6 SOCKET COMP LIGHT 33150KCJ691 -
7 BULB HEADLIGHT 34901KC5003 BULB HEADLIGHT
8 BULB W BASE (T10) 34908GAC003 BULB W BASE (T10)
9 CASE HEADLIGHT(BLK) 61300KCJ690 -
10 COLLAR HEADLIGHT 61302KBW900 -
11 NUT R HEADLIGHT CASE 61303KBW900 -
12 NUT L HEADLIGHT CASE 61304KBW900 -
13 COLLAR HEADLIGHT 61304379690 COLLAR HEADLIGHT
14 STAY HEADLIGHT 61311KCJ660 -
15 BOOT HEADLIGHT 61312KBP900 BOOT HEADLIGHT
16 GROMMET L HEADLIGHT 61312358300 -
17 GARNISH R 61313KCJ690 -
18 GARNISH L 61314KCJ690 -
19 BOLT FLANGE SPC 8X22 90100438850 BOLT FLANGE SPC 8X22
20 SCREW WASHER 5X16 938920501607 SCREW WASHER 5X16
21 BOLT, FLANGE, 6X10 960010601000 BOLT, FLANGE, 6X10
