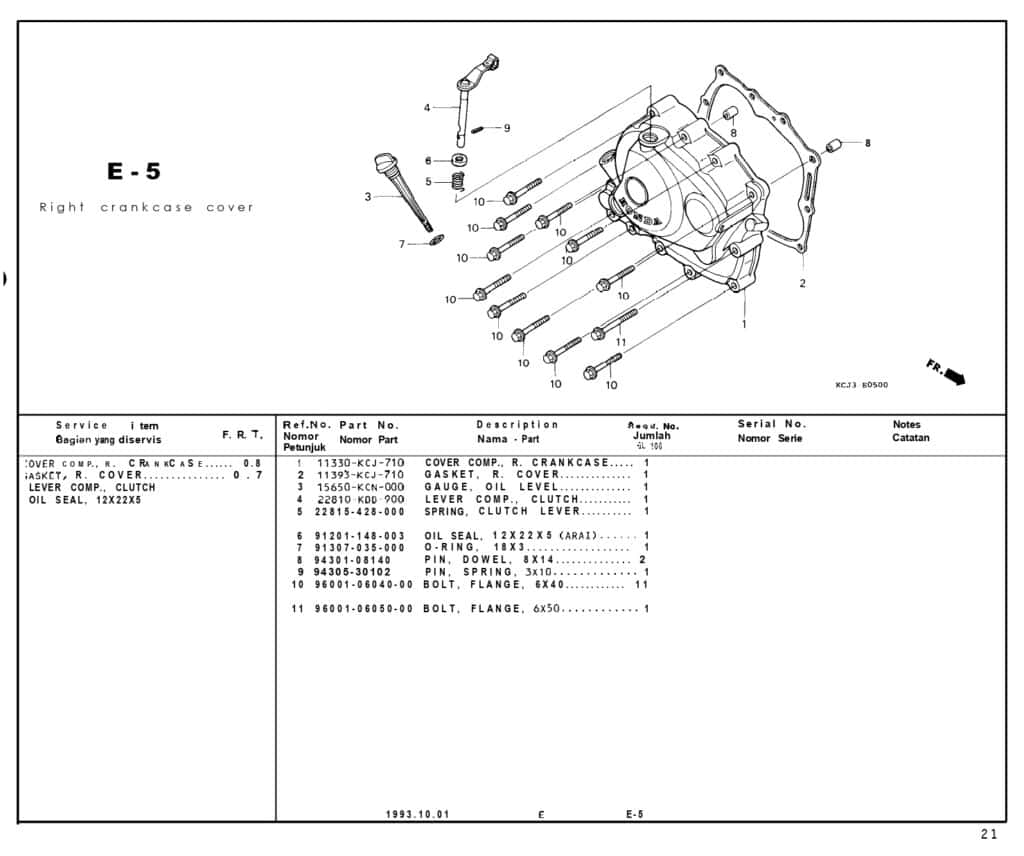

E-5 Right Crankcase Cover – Katalog Suku Cadang Honda Tiger 2000

#	Informasi Produk	Visual
1	COVER R CRANK CASE Part Number : `11330KCJ951`
2	GASKET R COVER Part Number : `11393KCJ710`
3	GAUGE OIL LEVEL Part Number : `15650KCN000`
4	LEVER COMP CLUTCH Part Number : `22810437001`
5	SPRING, CLUTCH LEVER Part Number : `22815428000`
6	OIL SEAL 12X22X5 Part Number : `91201148004`
7	O-RING, 18X3 Part Number : `91307035000`

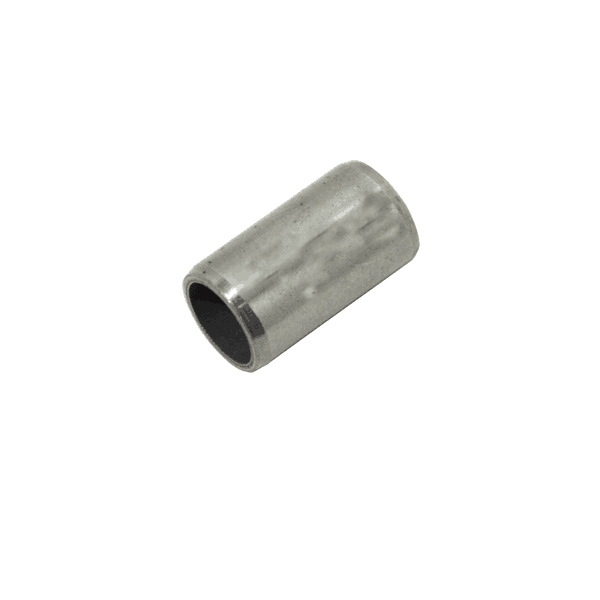

8	PIN DOWEL 8X14 Part Number : `9430108140`
9	PIN SPRING 3X10 Part Number : `9430530102`
10	BOLT FLANGE 6X40 Part Number : `960010604000`
11	BOLT FLANGE 6X50 Part Number : `960010605000`
