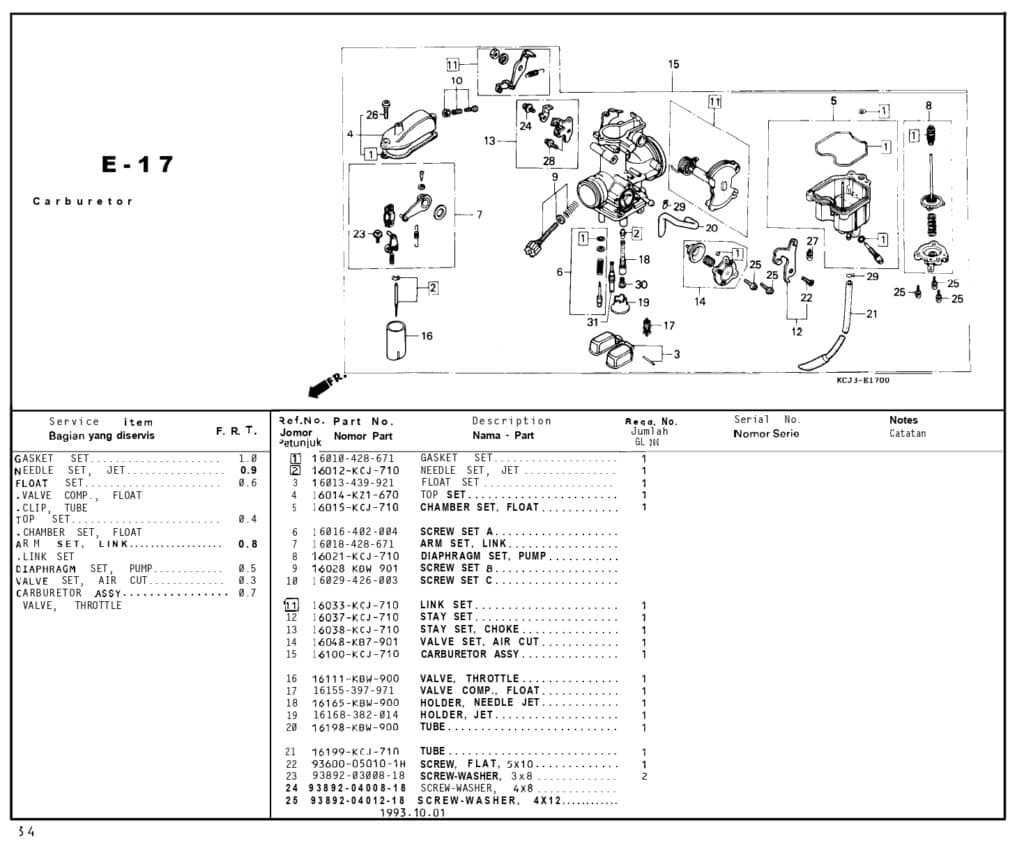

E-17 Carburetor – Katalog Suku Cadang Honda Tiger 2000
Daftar Suku Cadang
| # |
Nama Part |
Nomor Part |
Gambar |
| 1 |
GASKET SET |
16010428671 |
-
|
| 2 |
NEEDLE SET JET LBL |
16012KCJ661 |
|
| 3 |
FLOAT SET /K6K7 LBL |
16013439921 |
|
| 4 |
16014KZ1670 |
16014KZ1670 |
-
|
| 5 |
16015KCJ710 |
16015KCJ710 |
-
|
| 6 |
16016402004 |
16016402004 |
-
|
| 7 |
16018428671 |
16018428671 |
-
|
| 8 |
16021KCJ710 |
16021KCJ710 |
-
|
| 9 |
16028KBW901 |
16028KBW901 |
-
|
| 10 |
16029426003 |
16029426003 |
-
|
| 11 |
16033KCJ710 |
16033KCJ710 |
-
|
| 12 |
16037KCJ710 |
16037KCJ710 |
-
|
| 13 |
16038KCJ710 |
16038KCJ710 |
-
|
| 14 |
16048KB7901 |
16048KB7901 |
-
|
| 15 |
CARBURATOR ASSY LBL |
16100KCJ661 |
|
| 16 |
16111KBW900 |
16111KBW900 |
-
|
| 17 |
VALVE COMP,FLOAT LBL |
16155397971 |
|
| 18 |
16165KBW900 |
16165KBW900 |
-
|
| 19 |
HOLDER,JET |
16168382014 |
-
|
| 20 |
16198KBW900 |
16198KBW900 |
-
|
| 21 |
16199KCJ710 |
16199KCJ710 |
-
|
| 22 |
93600050101H |
93600050101H |
-
|
| 23 |
938920300818 |
938920300818 |
-
|
| 24 |
SCREW WASHER 4X8 |
938920400818 |
|
| 25 |
938920401218 |
938920401218 |
-
|
| 26 |
SCREW - WASH, 4X4 |
938920401418 |
-
|
| 27 |
938920401618 |
938920401618 |
-
|
| 28 |
SCREW, WASHER 5X10 |
938920501008 |
|
| 29 |
CLIP,TUBE |
9500202659 |
|
| 30 |
991013931200 |
991013931200 |
-
|
| 31 |
991034400380 |
991034400380 |
-
|
