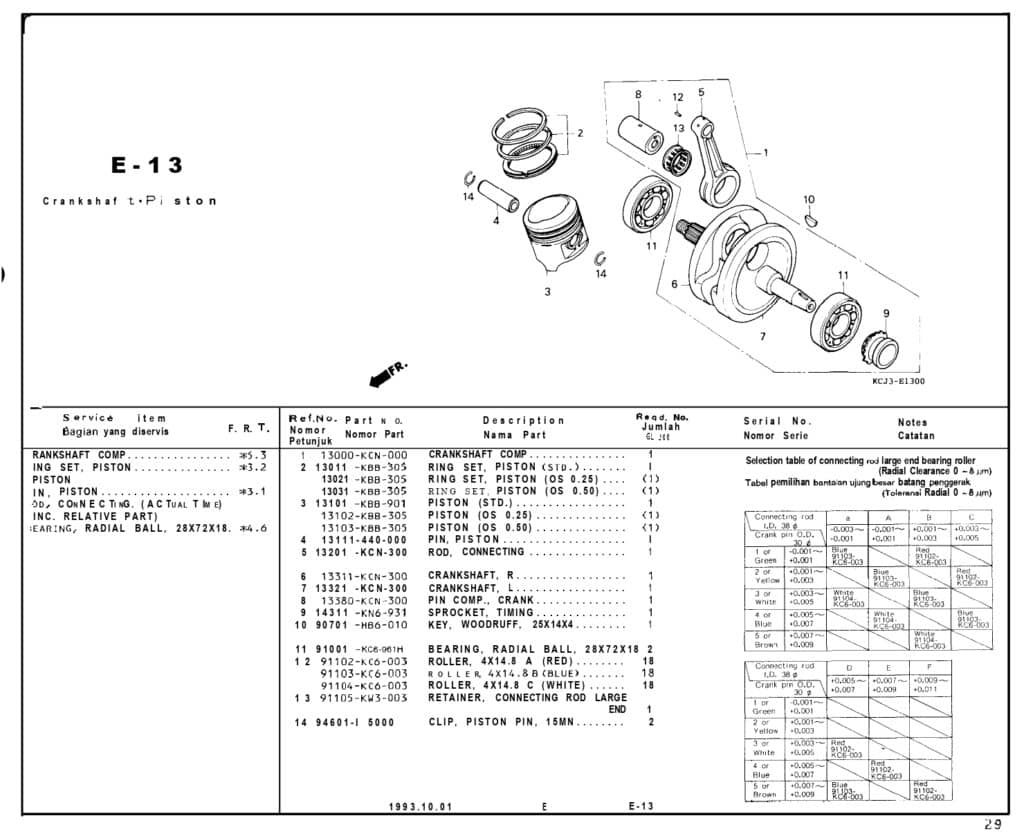

E-13 Cranksaft Piston – Katalog Suku Cadang Honda Tiger 2000

#	Informasi Produk	Visual
1	CRANKSHAFT COMP Part Number : `13000KCND01`
2	RING SET (STD) Part Number : `13011KCJ306`
2	RING SET (0.25) Part Number : `13012KCJ306`
2	RING SET (0.50) Part Number : `13013KCJ306`
3	PISTON STD Part Number : `13101KBB902`
3	PISTON (0.25) Part Number : `13102KBB902`
3	PISTON (0.25) Part Number : `13102KBB902`
3	PISTON (0.50) Part Number : `13103KBB902`
4	PIN,PISTON Part Number : `13111440001`
5	ROD,CONNECTING Part Number : `13201KCN300`
6	13311KCN300 Part Number : `13311KCN300`
7	13321KCN300 Part Number : `13321KCN300`
8	PIN,CRANK Part Number : `13380KCN300`
9	SPROCKET,TIMING Part Number : `14311KN6931`
10	KEY WOODRUFF,25X1 Part Number : `90701HB6010`
11	BEARING,RADIAL LBL Part Number : `91001KC6961`
12	ROLLER,4X14.8 Part Number : `91102KC6003`
12	ROLLER,4X14.8 B Part Number : `91103KC6003`
12	ROLLER,4X14.8 C Part Number : `91104KC6003`
13	RETAINER,CONN ROD Part Number : `91105KW3003`
14	CLIP,PISTON PIN Part Number : `9460115000`
