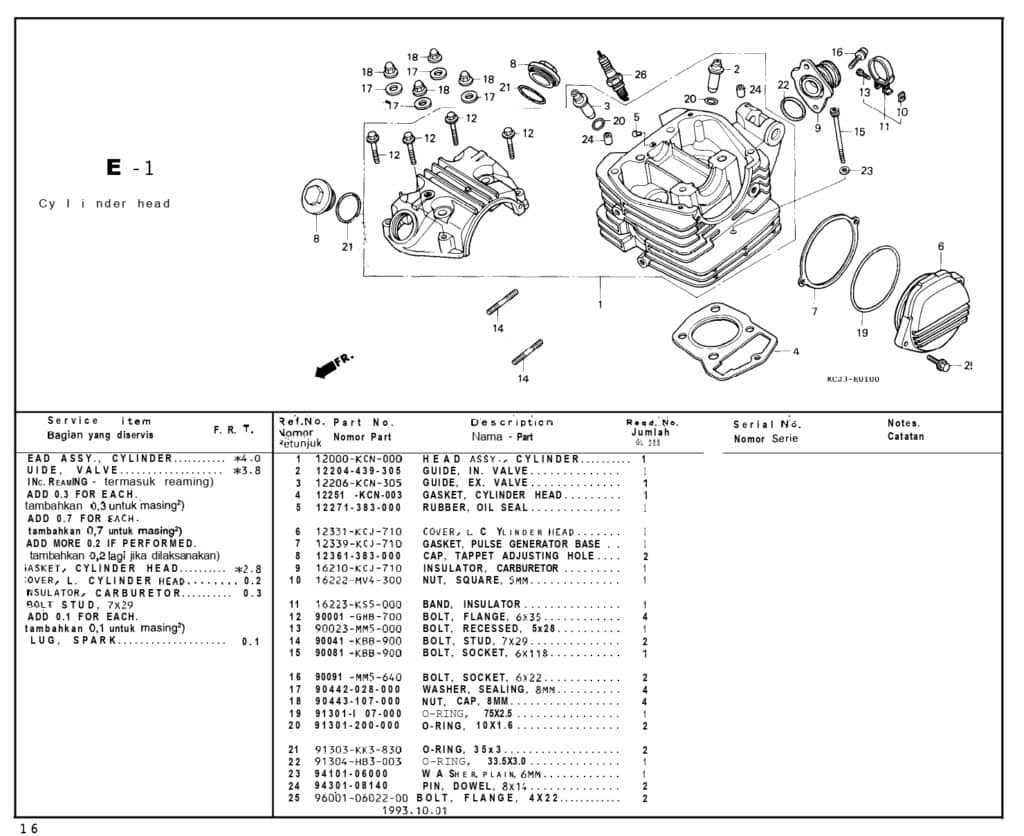

E-1 Cylinder Head – Katalog Suku Cadang Honda Tiger 2000

#	Informasi Produk	Visual
1	HEAD,CYLINDER Part Number : `12000KCN000`
2	GUIDE,IN VALVE Part Number : `12204439305`
3	GUIDE,EX VALVE Part Number : `12206KCN305`
4	GASKET CYLINDER HEAD Part Number : `12251KCN003`
5	RUBBER OIL SEAL Part Number : `12271383000`
6	COVER L CYL HEAD Part Number : `12331KCJ710`
7	GASKET PULSE GEN BASE Part Number : `12339KT0711`
8	CAP HOLE Part Number : `12361383000`
9	INSULATOR,CARB Part Number : `16210KCJ710`
10	NUT,SQUARE 5MM Part Number : `16222MV4300`
11	BAND INSULATOR Part Number : `16223KS5000`
12	BOLT,FLANGE 6X35 Part Number : `90001GHB700`
13	90023MM5000 Part Number : `90023MM5000`
14	BOLT, STUD 7X29 Part Number : `90041KBW940`
15	BOLT SOCKET 6X117 Part Number : `90081KBB900`
16	BOLT SOCKET 6X22 Part Number : `90091MM5640`
17	WASHER SEAL 8MM Part Number : `90442028000`
18	NUT HEX CAP Part Number : `90443107000`
19	O RING 7.5X2.5 Part Number : `91301107001`
20	O-RING,10X1.6 Part Number : `91301200000`
21	O-RING 35X3 Part Number : `91303KK3831`
22	O RING 33,5 X 3.0 Part Number : `91304HB3004`
23	WASHER PLAIN 6MM Part Number : `9410106000`

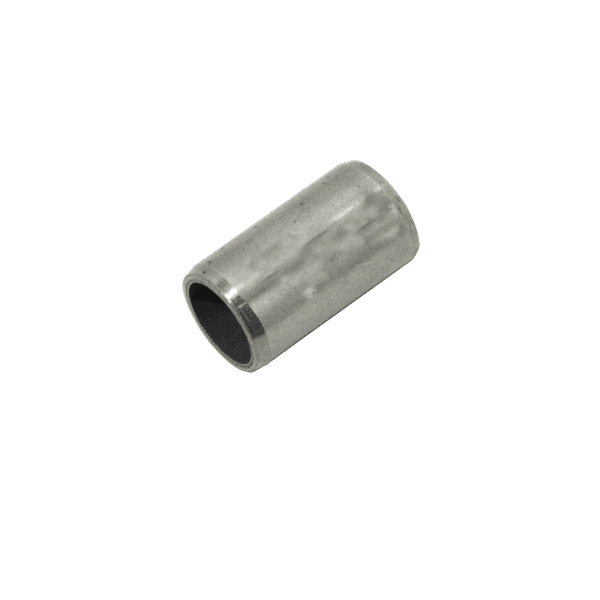

24	PIN DOWEL 8X14 Part Number : `9430108140`
25	BOLT FLANGE 6X22 Part Number : `960010602200`

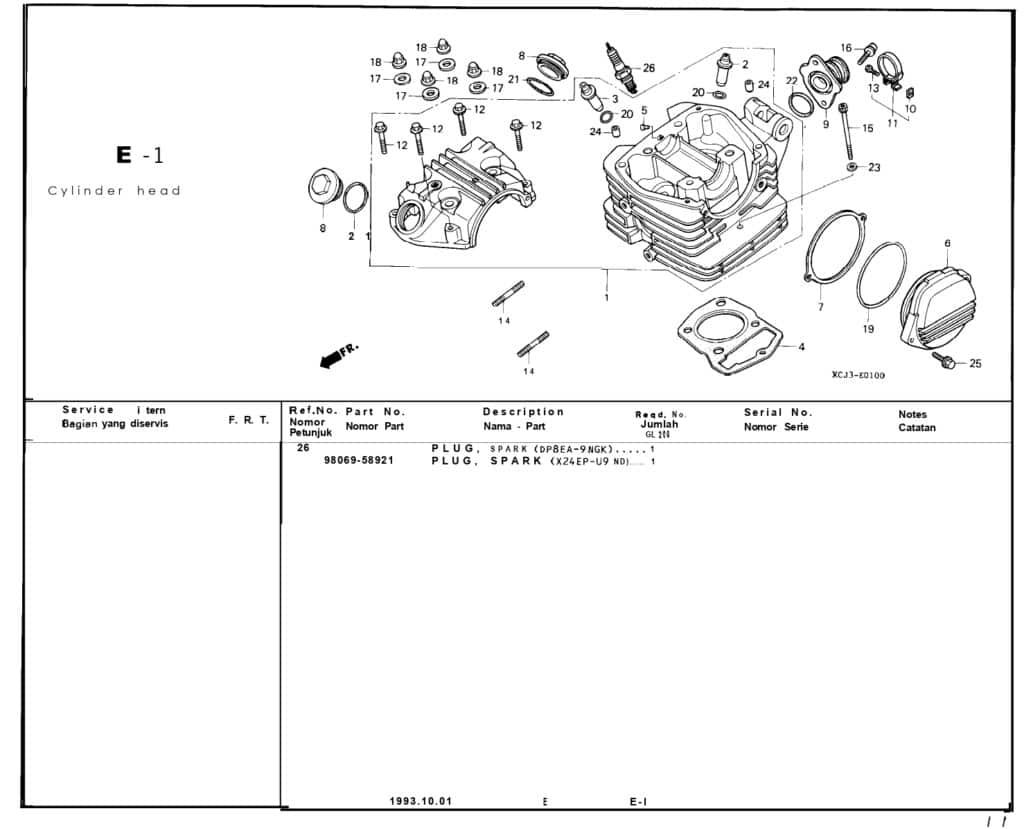

26	SPARK PLUG X24EPU9 (DS) Part Number : `9806958921`
