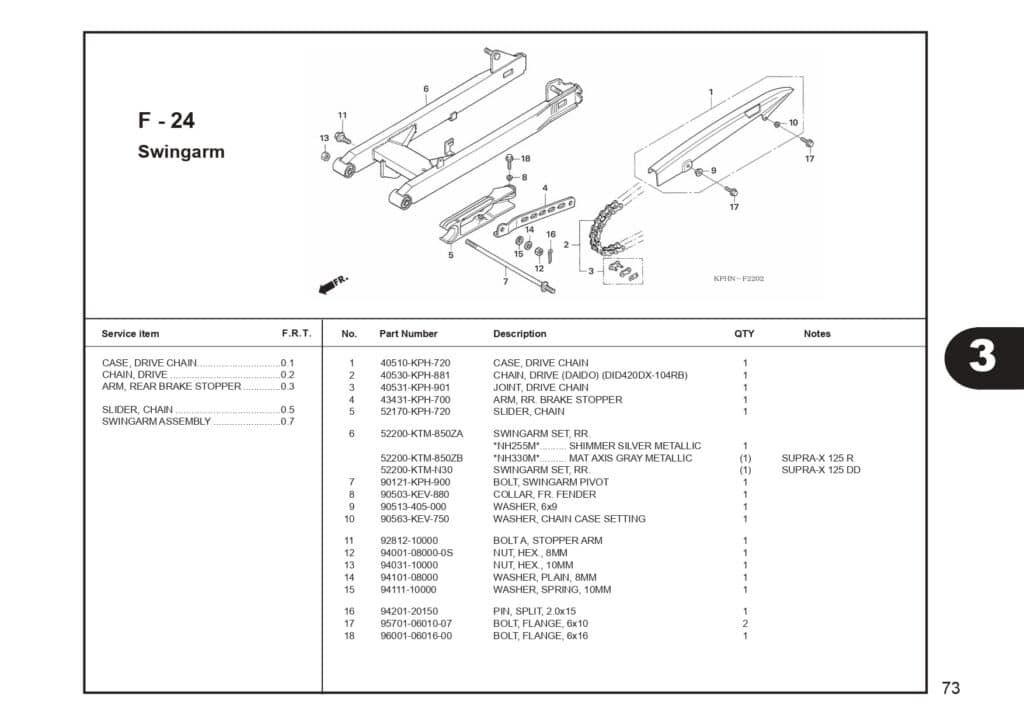

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | CASE DRIVE CHAIN(Y) | 40510KPH720 | - |
| 2 | CHAIN DRIVE 420-104 SB | 40530KPH881 |
|
| 3 | 40531KPH901 | 40531KPH901 | - |
| 4 | ARM RR BRK STPR | 43431KPH700 |
|
| 5 | SLIDER CHAIN (Y) | 52170KPH720 |
|
| 6 | SWINGARM RR COMP (SLV) | 52200KTM850ZA | - |
| 6 | SWINGARM RR COMP (MA AX GY) | 52200KTM850ZB | - |
| 6 | 52200KTMN30 | 52200KTMN30 | - |
| 7 | BOLT SWINGARM PIVOT | 90121KPH900 |
|
| 8 | COLLAR FR FENDER | 90503KEV880 | - |
| 9 | WASHER 6X9 | 90513405000 |
|
| 10 | WASHER CHAIN CASE SET | 90563KEV750 |
|
| 11 | BOLT A ARM STOP | 9281210000 |
|
| 12 | NUT HEX 8MM | 94001080000S |
|
| 13 | NUT HEX 10MM | 9403110000 |
|
| 14 | WASHER PLAIN 8MM | 9410108000 |
|
| 15 | WASHER,SPRING10MM | 9411110000 |
|
| 16 | PIN COTTER 2.0X15 | 9420120150 |
|
| 17 | BOLT FLANGE 6X10 | 957010601007 |
|
| 18 | BOLT FLANGE SH 6X16 | 960010601600 |
|
