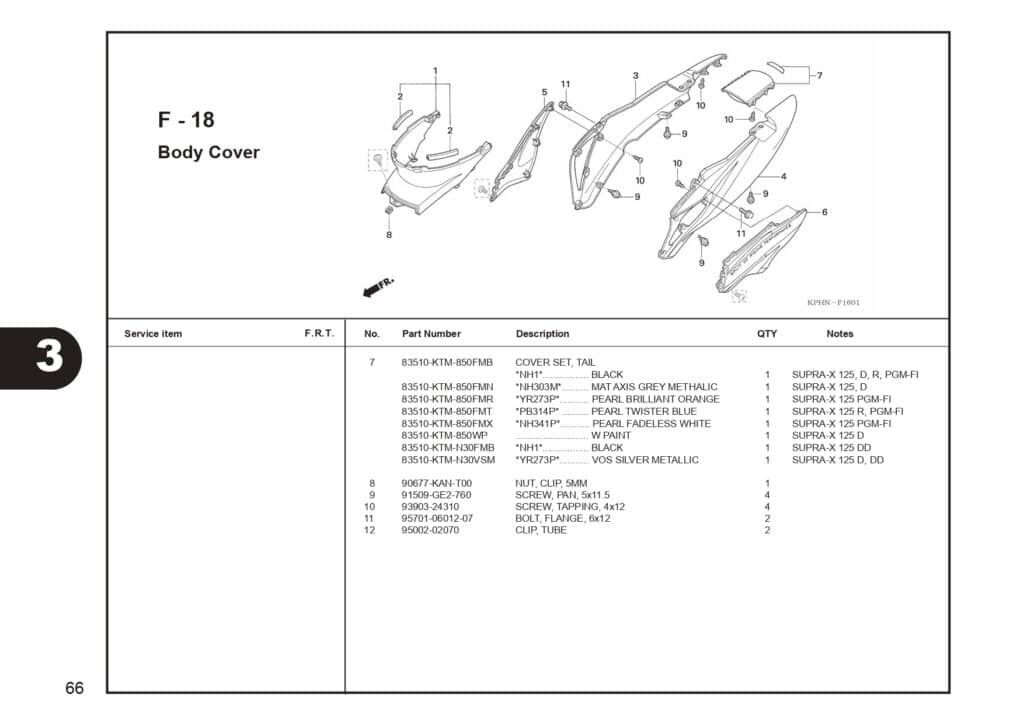

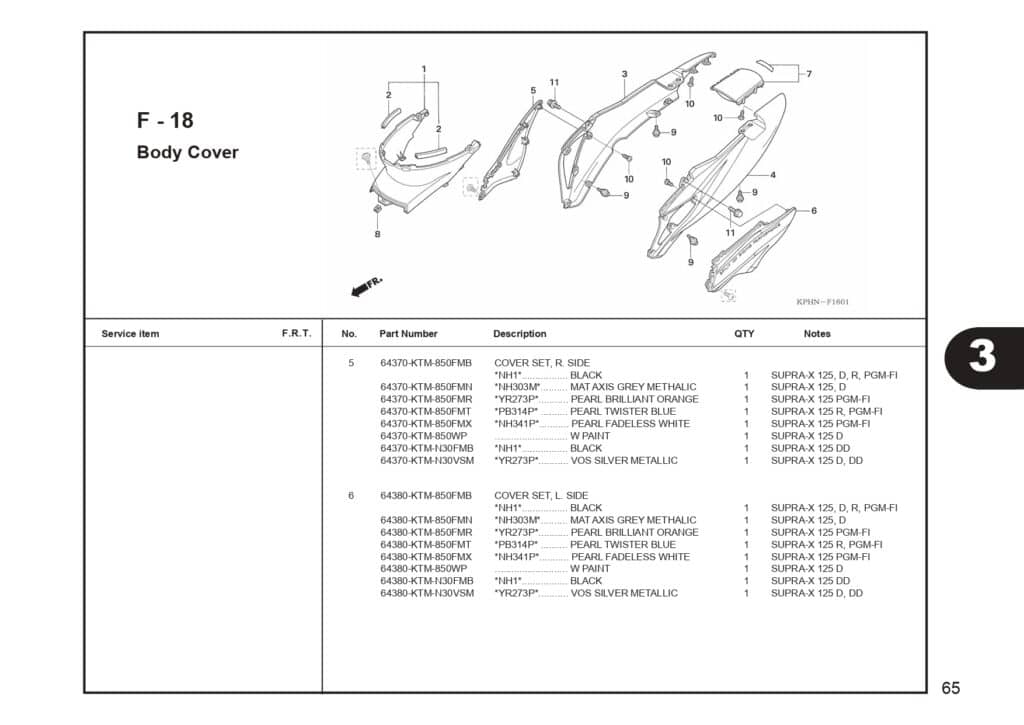

F-18 Body Cover – Katalog Suku Cadang Honda Supra X 125 Series

Gambar Bagian

Section Image Section Image Section Image

Daftar Suku Cadang

# Nama Part Nomor Part Gambar
1 COVER FR BODY 64350KPH700 -
2 RUBBER BODY CVR SETTING 64415KPHB30 RUBBER BODY CVR SETTING
3 COVER R BODY(BLK) 64410KTM850FMB COVER R BODY(BLK)
3 COVER R BODY(AN GY MET) 64410KTM850FMN -
3 COVER R BODY(PB ORG) 64410KTM850FMR COVER R BODY(PB ORG)
3 COVER R BODY(TPBLU) 64410KTM850FMT COVER R BODY(TPBLU)
3 COVER R BODY(PF WHT) 64410KTM850FMX COVER R BODY(PF WHT)
3 64410KTM850WP 64410KTM850WP -
3 COVER R BODY(BLK) 64410KTMN30FMB -
3 COVER R BODY(VOS SL MET) 64410KTMN30VSM -
4 COVER L BODY(BLK) 64420KTM850FMB -
4 COVER L BODY(AN GY MET) 64420KTM850FMN -
4 COVER L BODY(PB ORG) 64420KTM850FMR COVER L BODY(PB ORG)
4 COVER L BODY(TP BLUE) 64420KTM850FMT COVER L BODY(TP BLUE)
4 COVER L BODY(F WHITE) 64420KTM850FMX COVER L BODY(F WHITE)
4 64420KTM850WP 64420KTM850WP -
4 64420KTMN30FMB 64420KTMN30FMB -
4 COVER L BODY(VOS SL MET) 64420KTMN30VSM -
5 COVER R SD(BLK) 64370KTM850FMB COVER R SD(BLK)
5 COVER R SD(AN GY MET) 64370KTM850FMN COVER R SD(AN GY MET)
5 COVER R SD(PRL BRL ORG) 64370KTM850FMR -
5 64370KTM850FMT 64370KTM850FMT -
5 COVER R SD(PF WH) 64370KTM850FMX -
5 64370KTM850WP 64370KTM850WP -
5 64370KTMN30FMB 64370KTMN30FMB -
5 64370KTMN30VSM 64370KTMN30VSM -
6 COVER L SD(BLK) 64380KTM850FMB COVER L SD(BLK)
6 COVER L SD(AN GY MET) 64380KTM850FMN COVER L SD(AN GY MET)
6 COVER L SD(PRL BRL ORG) 64380KTM850FMR -
6 64380KTM850FMT 64380KTM850FMT -
6 COVER L SD(PF WH) 64380KTM850FMX -
6 64380KTM850WP 64380KTM850WP -
6 64380KTMN30FMB 64380KTMN30FMB -
6 64380KTMN30VSM 64380KTMN30VSM -
7 COVER TAIL(BLK) 83510KTM850FMB -
7 COVER TAIL(AN GY MET) 83510KTM850FMN -
7 COVER TAIL(PB ORG) 83510KTM850FMR COVER TAIL(PB ORG)
7 COVER TAIL(TPBLU) 83510KTM850FMT -
7 COVER TAIL(PF WHT) 83510KTM850FMX COVER TAIL(PF WHT)
7 83510KTM850WP 83510KTM850WP -
7 83510KTMN30FMB 83510KTMN30FMB -
7 83510KTMN30VSM 83510KTMN30VSM -
8 NUT CLIP 5MM. 90677KANT00 NUT CLIP 5MM.
9 SCREW PAN 5X11.5 91509GE2760 SCREW PAN 5X11.5
10 SCREW TAPPING 4X12 9390324310 SCREW TAPPING 4X12
11 BOLT FLANGE 6X12 957010601207 BOLT FLANGE 6X12
12 CLIP B7 TUBE 9500202071 CLIP B7 TUBE
