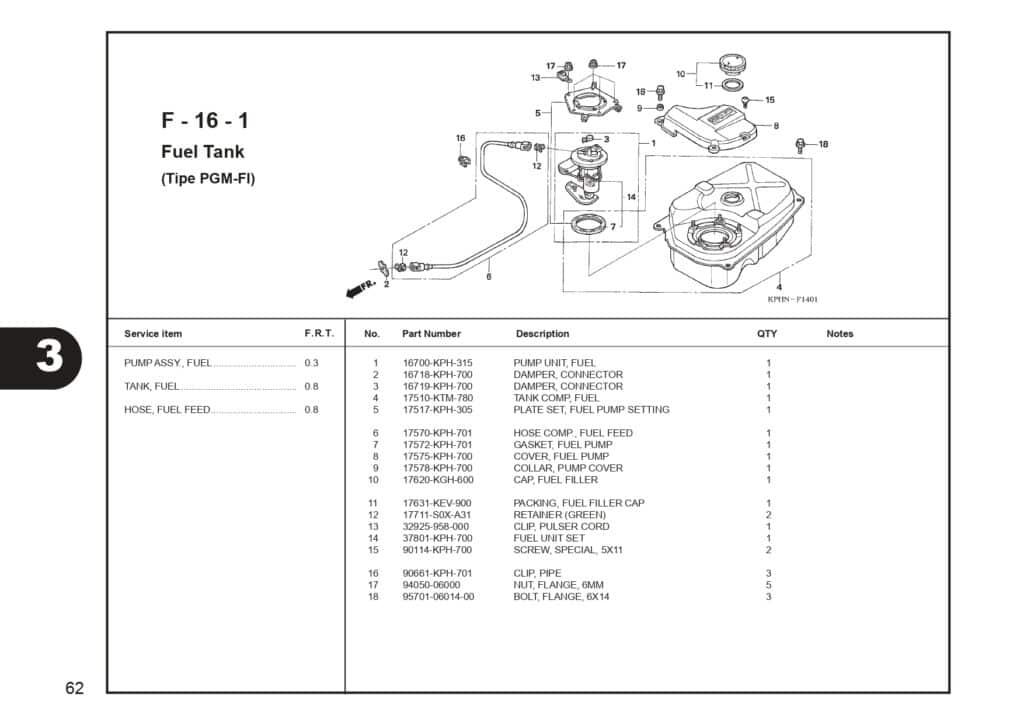

F-16-1 Fuel Tank (Tipe PGM-FI) – Katalog Suku Cadang Honda Supra X 125 Series

#	Informasi Produk	Visual
1	UNIT SET FUEL PUMP Part Number : `16700KPH325`
2	DAMPER CONNECTOR Part Number : `16718KPH700`
3	DAMPER CONNECTOR Part Number : `16719KPH700`
4	FUEL TANK Part Number : `17510KTM780`
5	17517KPH305 Part Number : `17517KPH305`
6	HOSE COMP,FUEL FEED Part Number : `17570KPH702`
7	GASKET,FUEL PUMP Part Number : `17572KPH701`
8	17575KPH700 Part Number : `17575KPH700`
9	COLLAR, PUMP COVER Part Number : `17578KPH700`
10	CAP FUEL FILLER Part Number : `17620KGH600`
11	PACKING FUEL FILLER CAP Part Number : `17631KEV900`
12	17711S0XA31 Part Number : `17711S0XA31`
13	CLIP PULSER CORD. Part Number : `32925958000`
14	37801KPH700 Part Number : `37801KPH700`
15	SCREW, SPECIAL, 5X11 Part Number : `90114KPH700`
16	CLIP, PIPE Part Number : `90661KPH701`
17	NUT,FLANGE 6MM Part Number : `9405006000`
18	BOLT FLANGE 6X14 Part Number : `957010601400`
