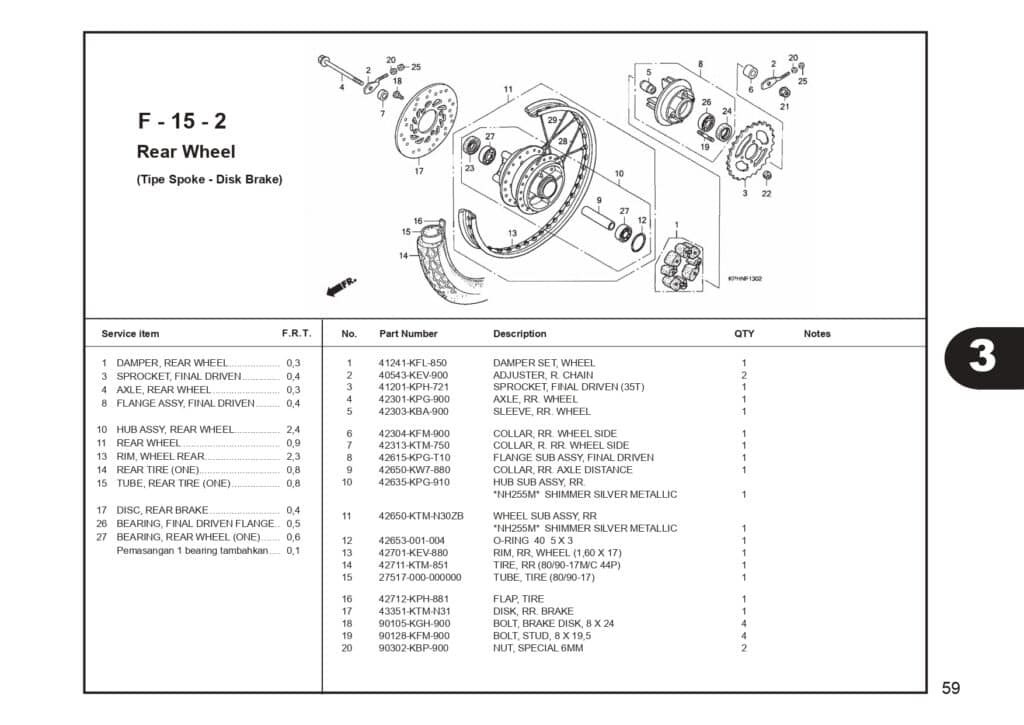

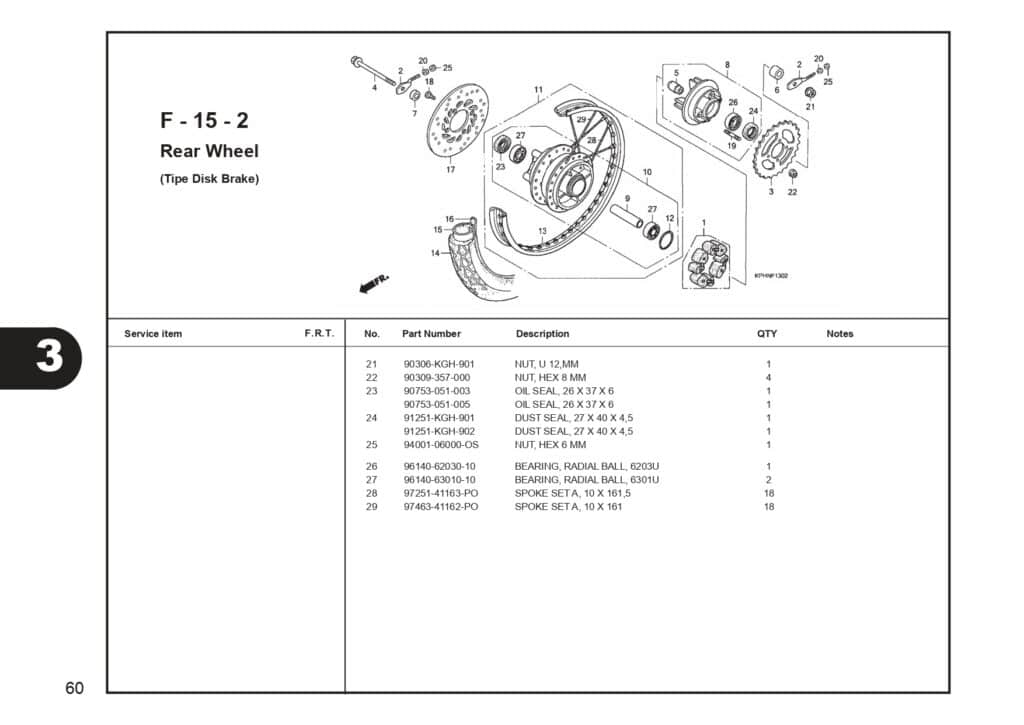

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | DAMPER,RR WHEEL SET | 41241KFL851 |
|
| 2 | ADJUSTER R CHAIN | 40543KEV900 |
|
| 3 | SPROCKET DRIVEN (Y) | 41201KPH721 |
|
| 4 | AXLE RR WHEEL | 42301KPG900 |
|
| 5 | SLEEVE RR.WHL. | 42303KBA900 | - |
| 6 | COLLAR RR WHEEL SIDE | 42304KFM900 |
|
| 7 | COLLAR R RR WHEEL SIDE | 42313KTM750 |
|
| 8 | 42615KPGT10 | 42615KPGT10 | - |
| 9 | 42650KW7880 | 42650KW7880 | - |
| 10 | HUB RR SUB ASSY | 42635KPG910 |
|
| 11 | 42650KTMN30ZB | 42650KTMN30ZB | - |
| 12 | O-RING 40.5X3 | 42653001004 |
|
| 13 | Rim RR Wheel | 42701KEV882 |
|
| 14 | TIRE RR TT (80/90-17 | 42711KTM850 |
|
| 14 | TIRE RR TT (2.75-17) | 42711KPH881 |
|
| 15 | TUBE TIRE (2.75-17) | 2751700000NR00 |
|
| 16 | 42712KPH881 | 42712KPH881 | - |
| 17 | DISK RR BREAKE | 43351KTMN31 |
|
| 18 | BOLT BRK DISK 8X24 | 90105KGH900 |
|
| 19 | BOLT STUD 8X19.5 | 90128KFM900 |
|
| 20 | NUT SPECIAL 6MM | 90302KBP900 |
|
| 21 | NUT,U,12MM | 90306KGH901 |
|
| 22 | NUT HEX 8MM | 90309357000 |
|
| 23 | OIL SEAL 26X37X6 | 90753051003 |
|
| 23 | OIL SEAL 26X37X6 | 90753051003 |
|
| 24 | DUST SEAL 27X40X4.5 | 91251KGH901 | - |
| 24 | DUST SEAL,27X40X4.5 | 91251KGH902 |
|
| 25 | NUT HEX 6MM | 94001060000S |
|
| 26 | Bearing 6203 | 961006203001 |
|
| 27 | BEARING BALL 6301 | AHB6301RS |
|
| 28 | 9725141163PO | 9725141163PO | - |
| 29 | 9746341162PO | 9746341162PO | - |
