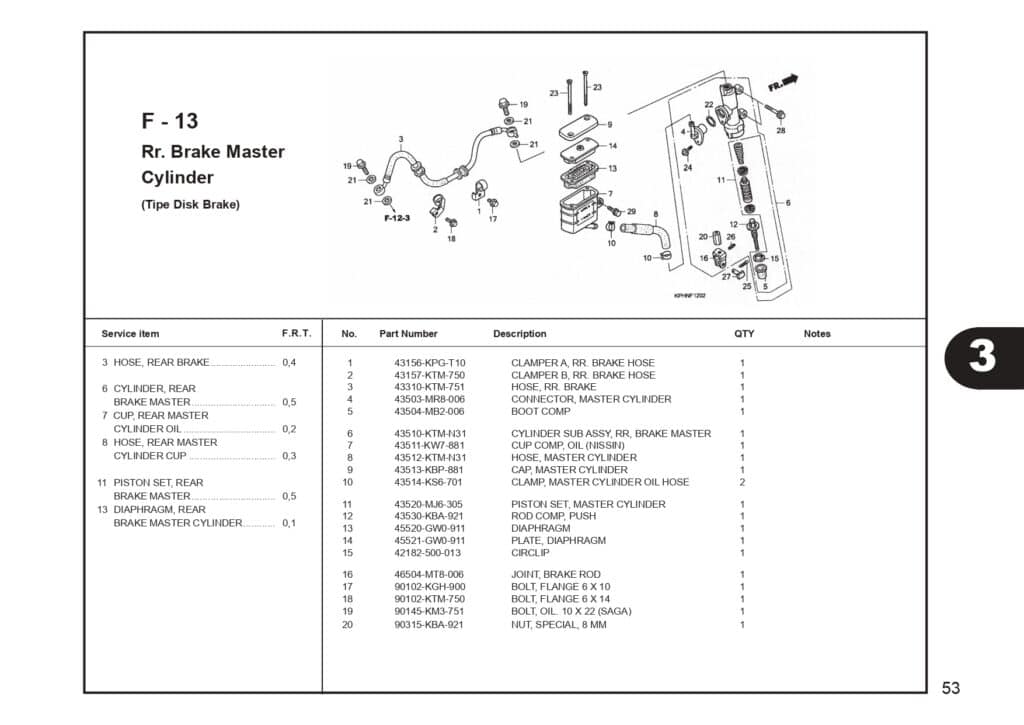

F-13 Rr. Brake Master Cylinder (Tipe Disk Brake) – Katalog Suku Cadang Honda Supra X 125 Series

#	Informasi Produk	Visual
1	CLAMPER A RR BRAKE Part Number : `43156KPGT10`
2	CLAMPER B RR BRAKE Part Number : `43157KTM750`
3	HOSE COMP RR BRK Part Number : `43310KTM751`
4	CONNECTOR, MSTR CYLINDER Part Number : `43503MR8006`
5	BOOT COMP Part Number : `43504MB2006`
6	CYLINDER SUB ASSY RR Part Number : `43510KTMN32`
7	CUP COMP,OIL Part Number : `43511KW7881`
8	HOSE M/C Part Number : `43512KTMN31`
9	CAP M/C Part Number : `43513KBP881`
10	CLMP,CYLN.OIL Part Number : `43514KS6701`
11	PISTON,CYLINDER Part Number : `43520MJ6315`
12	RODCOMP.,PUSH(NISSIN) Part Number : `43530KBA921`
13	DIAPHRAGM Part Number : `45520GW0911`
14	PLATE,DIAPHRAGM Part Number : `45521GW0911`
15	42182500013 Part Number : `42182500013`
16	JOINT,BRK ROD Part Number : `46504MT8006`
17	BOLT FLANGE 6X10 Part Number : `90102KGH900`
18	BOLT FLANGE 6X14 Part Number : `90102KTM750`
19	BOLT OIL, 10X22 Part Number : `90145KM3752`
20	NUT,SPECIAL,8MM(NISSIN) Part Number : `90315KBA921`
21	WASHER OIL BOLT Part Number : `90545300000`
22	O-RING,14.8X2.4 Part Number : `91212422006`
23	SCREW,FLAT,4X45 Part Number : `93600040451G`
24	SCREW WASHER 4X12 Part Number : `938930401217`
25	PIN SPLIT Part Number : `9420120120`
26	PIN SPRING 2X12 Part Number : `94305201203`
27	PIN D JOINT Part Number : `9501554000`
28	BOLT FLANGE 6X22 Part Number : `957010602200`
29	BOLT FLANGE SH 6X12 Part Number : `960010601200`
