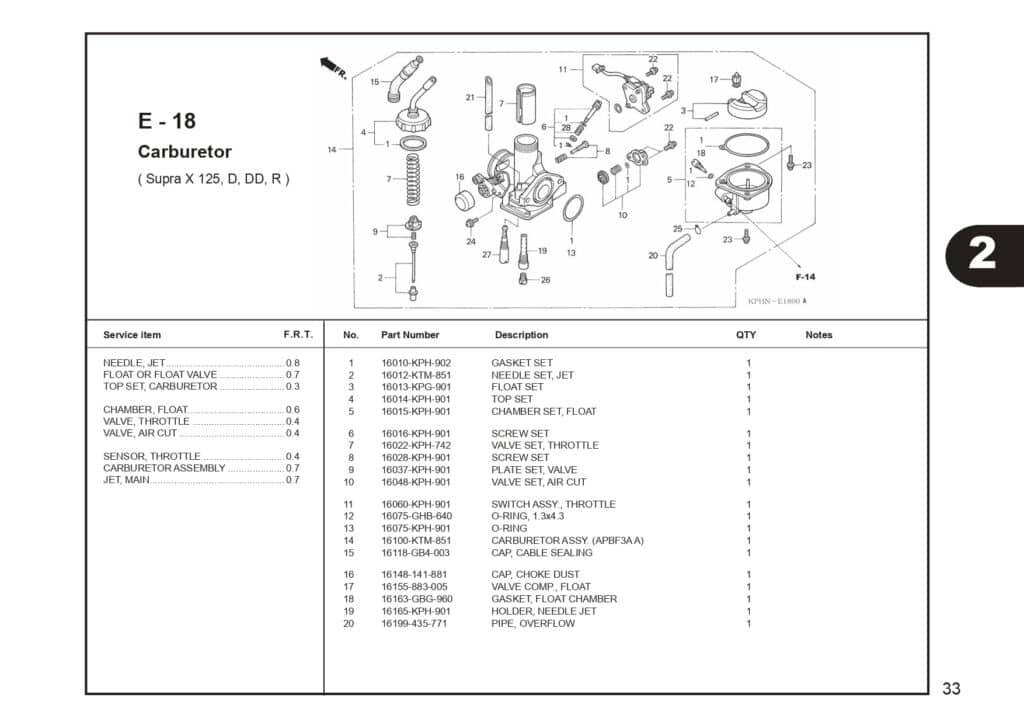

E-18 Carburetor – Katalog Suku Cadang Honda Supra X 125 Series

#	Informasi Produk	Visual
1	16010KPH902 Part Number : `16010KPH902`
2	16012KTM851 Part Number : `16012KTM851`
3	FLOAT SET Part Number : `16013KPG901`
4	16014KPH901 Part Number : `16014KPH901`
5	16015KPH901 Part Number : `16015KPH901`
6	SCREW SET Part Number : `16016KPH901`
7	VALVE SET, THROTTLE Part Number : `16022KPH742`
8	SCREW SET Part Number : `16028KPH901`
9	PLATE SET, VALVE Part Number : `16037KPH901`
10	VALVE SET, AIR CUT Part Number : `16048KPH901`
11	SWTCH ASSY, THROTTLE Part Number : `16060KPH901`
12	O-RING,1.3X4.3 Part Number : `16075GHB640`
13	16075KPH901 Part Number : `16075KPH901`
14	CARBURETOR ASSY Part Number : `16100KTM851`
15	CAP,RUBBER Part Number : `16118GB4003`
16	CAP,DUST Part Number : `16148141881`
17	VALVE COMP,FLOAT LBL Part Number : `16155883005`
18	GASKET FLOAT CHAMBER Part Number : `16163GBG960`
19	HOLDER, NEEDLE JET Part Number : `16165KPH901`
20	TUBE Part Number : `16199435771`
21	TUBE, AIRVENT Part Number : `16199KPH901`
22	SCREW - WASH., 4X10 Part Number : `938920401010`
23	SCREW - WASH, 4X4 Part Number : `938920401418`
24	SCREW, WASHER 5X10 Part Number : `938920501008`
25	CLIP,TUBE Part Number : `9500202659`
26	99101KPH075 Part Number : `99101KPH075`
27	99104KPH0350 Part Number : `99104KPH0350`
28	O-RING,1.3X4.3 Part Number : `16075GHB640`
