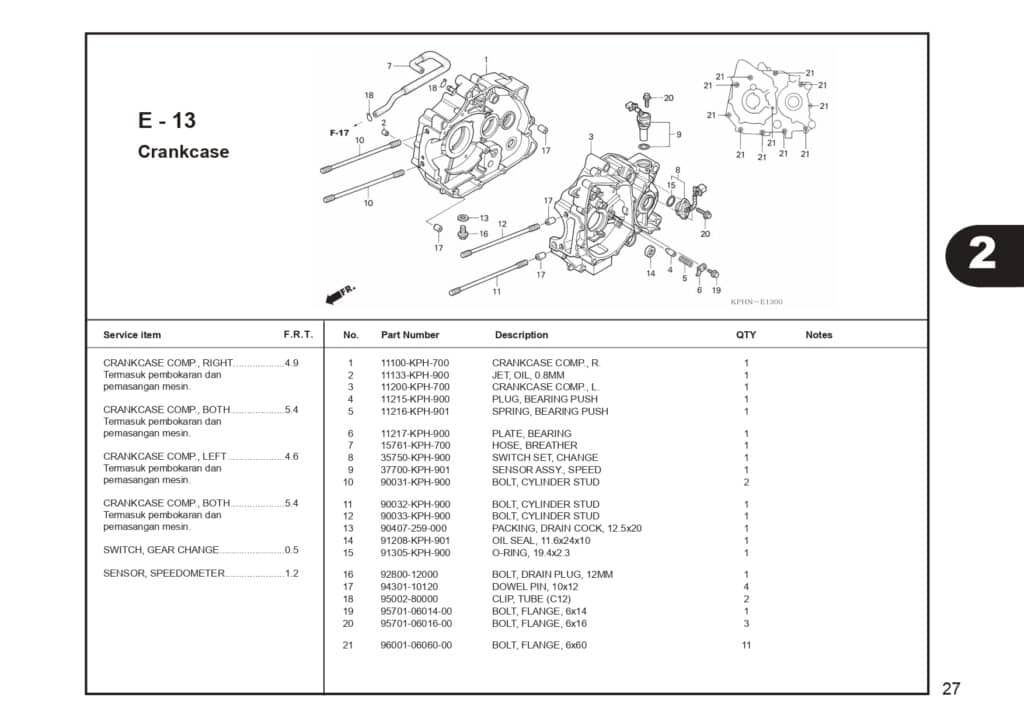

E-13 Crankcase – Katalog Suku Cadang Honda Supra X 125 Series

#	Informasi Produk	Visual
1	CRANKCASE COMP R Part Number : `11100KPH700`
2	OIL JET 0.8MM Part Number : `11133KPH900`
3	CRANKCASE COMP L Part Number : `11200KPH700`
4	PLUG, BRG PUSH Part Number : `11215KPH900`
5	SPRING BEARING PUSH Part Number : `11216KPH901`
6	PLATE BEARING PUSH Part Number : `11217KPH900`
7	15761KPH700 Part Number : `15761KPH700`
8	Contact Assy Change Switch Part Number : `35759KPH901`
9	SENSOR ASSY SPEED Part Number : `37700KPH901`
10	BOLT STUD CYL Part Number : `90031KPH900`
11	BOLT STUD CYL Part Number : `90032KPH900`
12	BOLT STUD CYL Part Number : `90033KPH900`
13	PACKING COCK Part Number : `90407259000`
14	OIL SEAL, 11. 6X24X10 Part Number : `91208KPH901`
15	O RING 19.4X2.3 Part Number : `91305KPH900`
16	DRAINCOCK Part Number : `9280012000`
17	PIN DOWEL 10X12 Part Number : `9430110120`
18	CLIP, TUBE(C12) Part Number : `9500280000`
19	BOLT FLANGE 6X14 Part Number : `957010601400`
20	BOLT FLANGE 6X16 Part Number : `957010601600`
21	BOLT FLANGE SH 6X60 Part Number : `960010606001`
