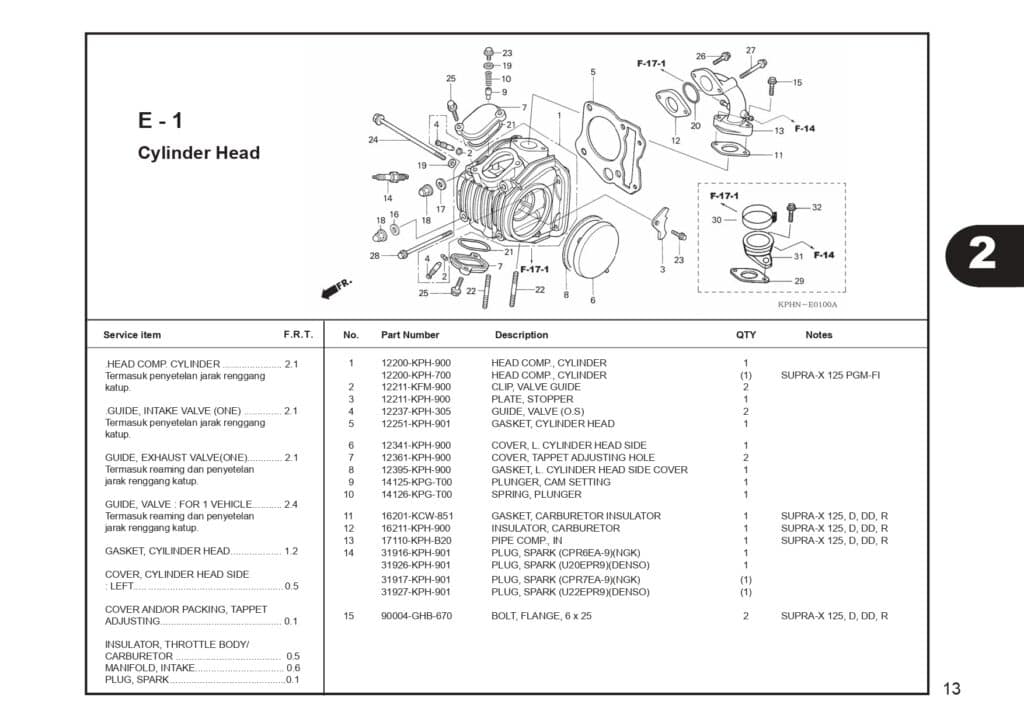

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | HEAD CYLINDER | 12200KPH900 |
|
| 2 | CLIP VALVE GUIDE | 12211KFM901 |
|
| 3 | PLATE STOPPER | 12211KPH900 |
|
| 4 | GUIDE VALVE | 12237KPH305 | - |
| 5 | GASKET CYLINDER HEAD | 12251KPH901 |
|
| 6 | COVER L CYL HEAD SIZE | 12341KPH900 |
|
| 7 | COVER TAPPET ADJ HOLE | 12361KPH900 |
|
| 8 | GASKET L CYLINDER HEAD | 12395KPH900 |
|
| 9 | PLUNGER CAM SETTING | 14125KPGT00 |
|
| 10 | SPRING PLUNGER | 14126KPH901 |
|
| 11 | GASKET CARB INSULATOR | 16201KCW851 | - |
| 12 | INSULATOR CARB | 16211KPH901 |
|
| 13 | PIPE COMP INLET | 17110KPHB20 | - |
| 14 | SPARK PLUG CPR6EA9 (NGK) | 9806786881 |
|
| 14 | SPARK PLUG CPR7EA-9 | 31926KPH901 | - |
| 14 | SPARK PLUG U22EPR9 (DS) | 31927KPH901 |
|
| 15 | BOLT FLANGE SHF 6X25 | 90004GHB670 |
|
| 16 | WASHER SEALING 8MM | 90441ME9000 |
|
| 17 | WASHER SEALING 8MM | 90441286001 |
|
| 18 | NUT HEX CAP | 90443107000 |
|
| 19 | WASHER SEAL 12MM | 90461357000 |
|
| 20 | ORING 25 X 2.4 | 91304GB1900 |
|
| 21 | O-RING, TAPP ADJ | 91372KPH900 |
|
| 22 | BOLT STUD 2.8X28 | 92900080280E |
|
| 23 | BOLT FLANGE 6X12 | 957010601200 |
|
| 24 | BOLT FLANGE 6X110 | 957010611000 | - |
| 25 | BOLT FLANGE 6X20 | 960010602000 |
|
| 26 | BOLT FLANGE 6X22 | 960010602200 |
|
| 27 | BOLT FLANGE 6X45 | 960010604500 |
|
| 28 | BOLT,FLANGE,6X95 | 960010609500 | - |
| 29 | BAND ISULATOR | 16217KPH700 |
|
| 30 | INSULATOR ASSY, THROTTLE | 16200KPH701 | - |
| 31 | NUT,SQUARE 5MM | 16222MV4300 |
|
| 32 | BOLT FLANGE 6X20 | 90004GHB650 |
|
