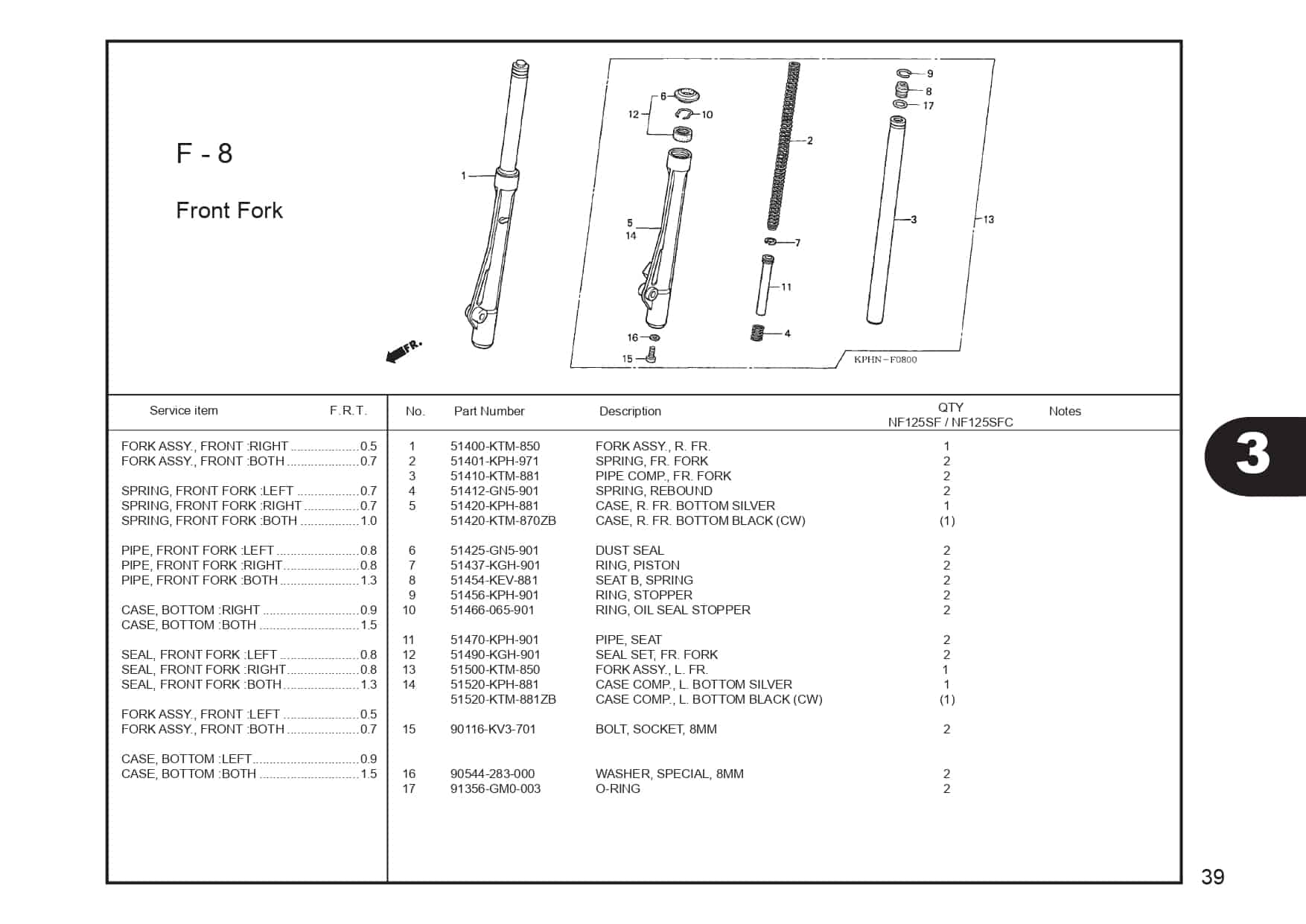

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | FORK ASSY R FR (DK) | 51400KTM850ZB |
|
| 1 | FORK ASSY R FR (DR) | 51400KTM860 | - |
| 1 | FORK ASSY R FR | 51400KPH881 |
|
| 2 | SPRING FR FORK | 51401KPH971 |
|
| 3 | PIPE COMP FR FORK | 51410KTM881 |
|
| 4 | SPG REBOUND | 51412GN5901 |
|
| 5 | CASE R FR BOTTOM (SILVER) | 51420KPH881 |
|
| 6 | DUST SEAL FR FORK | 51425GN5901 |
|
| 7 | RING,PISTON | 51437KGH901 | - |
| 8 | SEAT B SPRING | 51454KEV881 |
|
| 9 | RIMG,STOPPER | 51456KPH901 |
|
| 10 | RING OIL SEAL | 51466065901 |
|
| 11 | PIPE,SEAT | 51470KPH901 |
|
| 12 | SEAL SET FR FORK | 51490KGH901 |
|
| 12 | SEAL SET FR FORK | 51490KGH902 |
|
| 13 | FORK ASSY L FR (DK) | 51500KTM850ZB |
|
| 13 | FORK ASSY L FR (DR) | 51500KTM860 | - |
| 13 | FORK ASSY L FR | 51500KPH881 | - |
| 14 | CASE L FR BOTTOM | 51520KPH881 |
|
| 14 | CASE L FR BOTTOM | 51520KTM881ZB | - |
| 15 | BOLT,SOCKET 8MM | 90116KV3701 |
|
| 16 | WASHER SPECIAL (8MM) | 90544283000 |
|
| 17 | O RING | 91356GM0003 |
|
