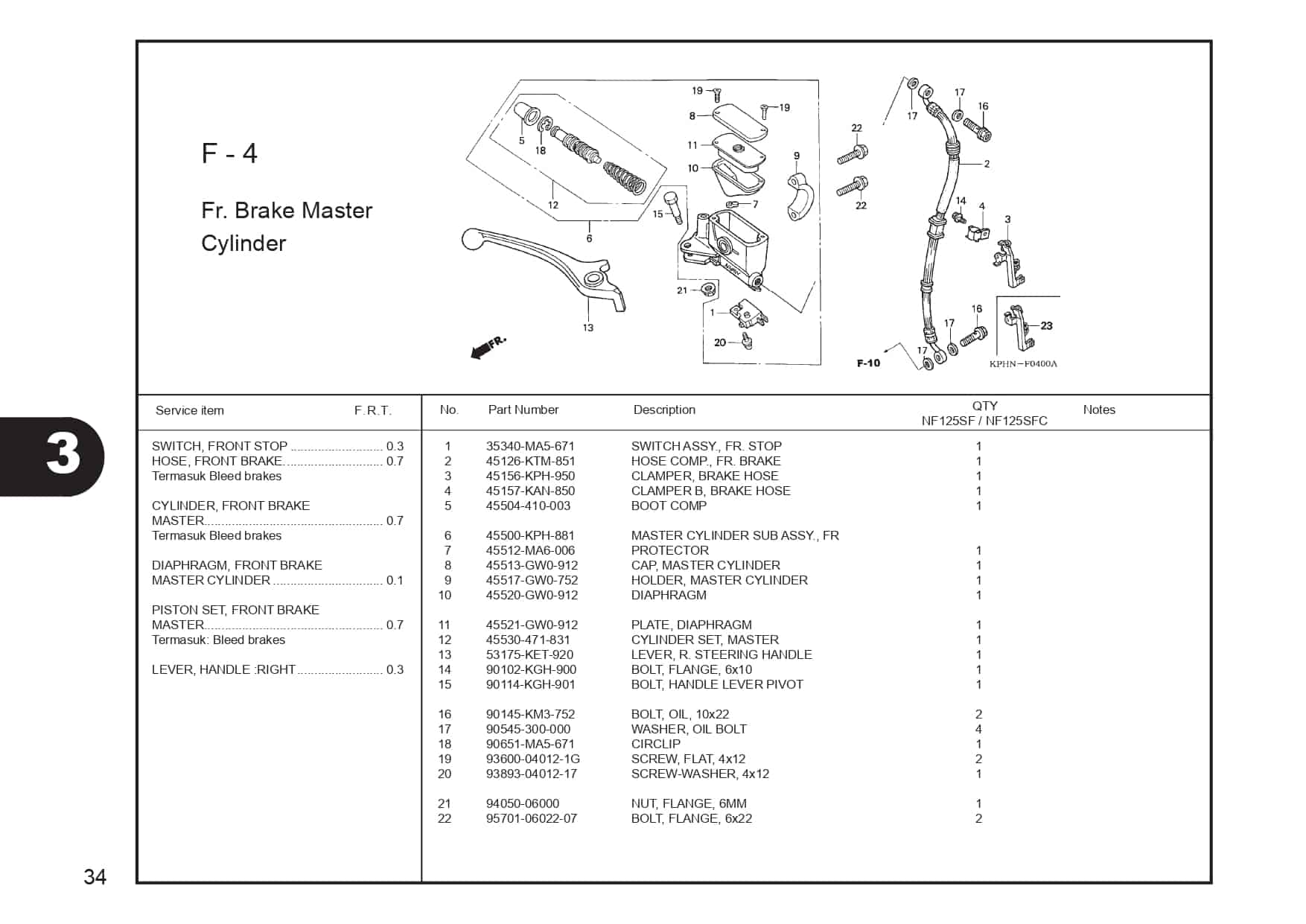

| # | Nama Part | Nomor Part | Gambar |
|---|---|---|---|
| 1 | SW,ASSY FR.STOP | 35340MA5671 |
|
| 2 | HOSE COMP FR BRK | 45126KTM851 |
|
| 3 | CLAMPER BRAKE HOSE | 45156KPH950 |
|
| 4 | CLAMPER B FR BRK | 45157KAN850 | - |
| 5 | BOOT COMP | 45504410003 |
|
| 6 | M/C ASSY FR | 45500KPH881 |
|
| 7 | PROTECTOR | 45512MA6006 |
|
| 8 | CAP, MASTER CYLINDER | 45513GW0913 |
|
| 10 | DIAPHRAGM | 45520GW0911 |
|
| 11 | PLATE DIAPHGM | 45521GW0913 |
|
| 12 | CYLINDER SET,MAS | 45530471831 |
|
| 12 | CYLINDER SET,MAS | 45530KET920 |
|
| 13 | LEVER R HANDLE | 53175KET920 |
|
| 14 | BOLT FLANGE 6X10 | 90102KGH900 |
|
| 15 | BOLT HDL LEVER | 90114KGH901 |
|
| 15 | BOLT HDL LEVER | 90114KGH900 |
|
| 16 | BOLT OIL, 10X22 | 90145KM3752 |
|
| 17 | WASHER OIL BOLT | 90545300000 |
|
| 18 | CIRCLIP | 90651MA5671 |
|
| 19 | SCREW FLAT, 4X12 | 93600040121G |
|
| 20 | SCREW WASHER 4X12 | 938930401217 |
|
| 21 | NUT,FLANGE 6MM | 9405006000 |
|
| 22 | BOLT FLANGE 6X22 | 957010602207 |
|
